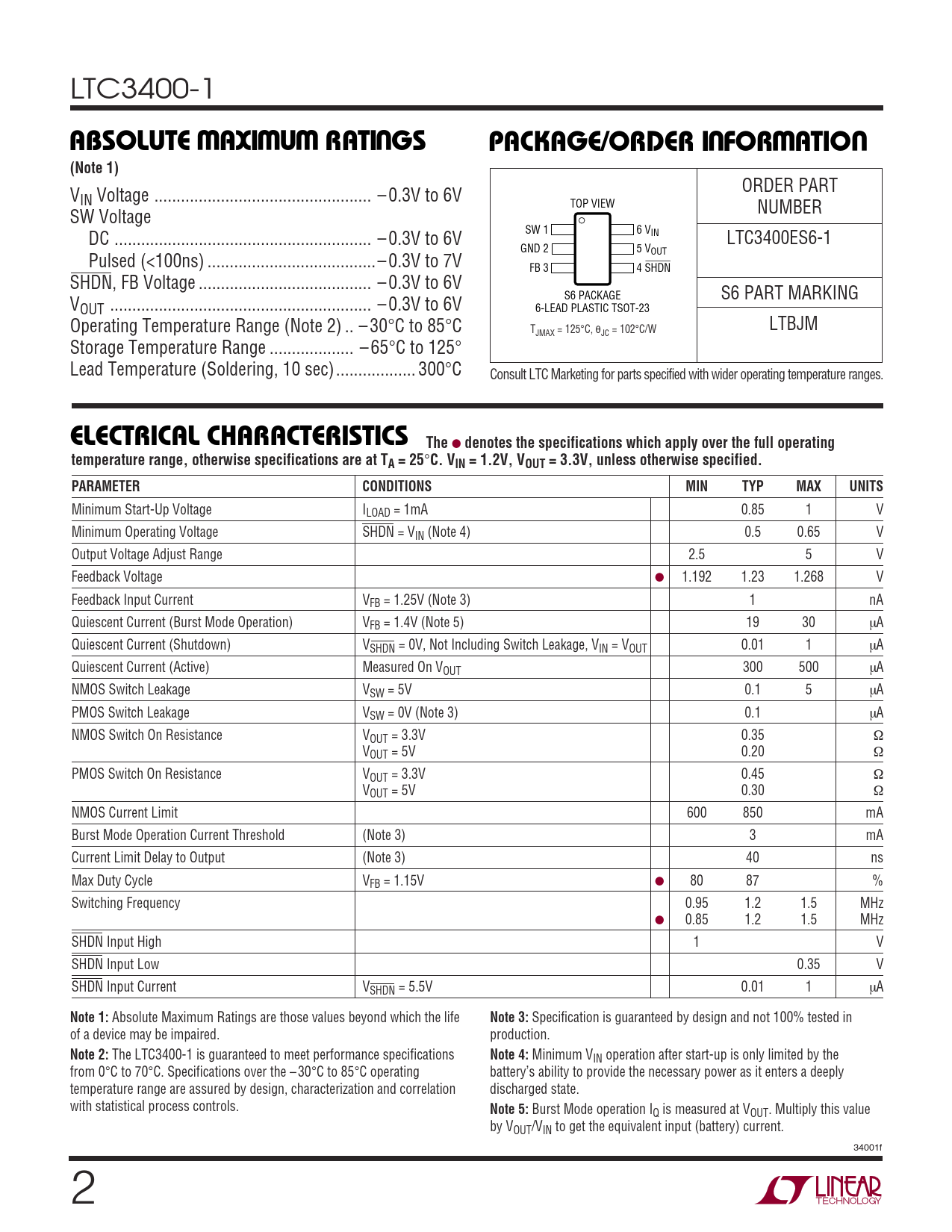

LTC3400-1
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
ORDER PART VIN Voltage ... – 0.3V to 6V TOP VIEW NUMBER SW Voltage SW 1 6 V DC .. – 0.3V to 6V IN LTC3400ES6-1 GND 2 5 VOUT Pulsed (<100ns) .. – 0.3V to 7V FB 3 4 SHDN SHDN, FB Voltage ... – 0.3V to 6V S6 PACKAGE S6 PART MARKING VOUT ... – 0.3V to 6V 6-LEAD PLASTIC TSOT-23 Operating Temperature Range (Note 2) .. – 30°C to 85°C LTBJM TJMAX = 125°C, θJC = 102°C/W Storage Temperature Range ... – 65°C to 125° Lead Temperature (Soldering, 10 sec).. 300°C Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = 1.2V, VOUT = 3.3V, unless otherwise specified. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Start-Up Voltage ILOAD = 1mA 0.85 1 V Minimum Operating Voltage SHDN = VIN (Note 4) 0.5 0.65 V Output Voltage Adjust Range 2.5 5 V Feedback Voltage ● 1.192 1.23 1.268 V Feedback Input Current VFB = 1.25V (Note 3) 1 nA Quiescent Current (Burst Mode Operation) VFB = 1.4V (Note 5) 19 30 µA Quiescent Current (Shutdown) VSHDN = 0V, Not Including Switch Leakage, VIN = VOUT 0.01 1 µA Quiescent Current (Active) Measured On VOUT 300 500 µA NMOS Switch Leakage VSW = 5V 0.1 5 µA PMOS Switch Leakage VSW = 0V (Note 3) 0.1 µA NMOS Switch On Resistance VOUT = 3.3V 0.35 Ω VOUT = 5V 0.20 Ω PMOS Switch On Resistance VOUT = 3.3V 0.45 Ω VOUT = 5V 0.30 Ω NMOS Current Limit 600 850 mA Burst Mode Operation Current Threshold (Note 3) 3 mA Current Limit Delay to Output (Note 3) 40 ns Max Duty Cycle VFB = 1.15V ● 80 87 % Switching Frequency 0.95 1.2 1.5 MHz ● 0.85 1.2 1.5 MHz SHDN Input High 1 V SHDN Input Low 0.35 V SHDN Input Current VSHDN = 5.5V 0.01 1 µA
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 3:
Specification is guaranteed by design and not 100% tested in of a device may be impaired. production.
Note 2:
The LTC3400-1 is guaranteed to meet performance specifications
Note 4:
Minimum VIN operation after start-up is only limited by the from 0°C to 70°C. Specifications over the – 30°C to 85°C operating battery’s ability to provide the necessary power as it enters a deeply temperature range are assured by design, characterization and correlation discharged state. with statistical process controls.
Note 5:
Burst Mode operation IQ is measured at VOUT. Multiply this value by VOUT/VIN to get the equivalent input (battery) current. 34001f 2
