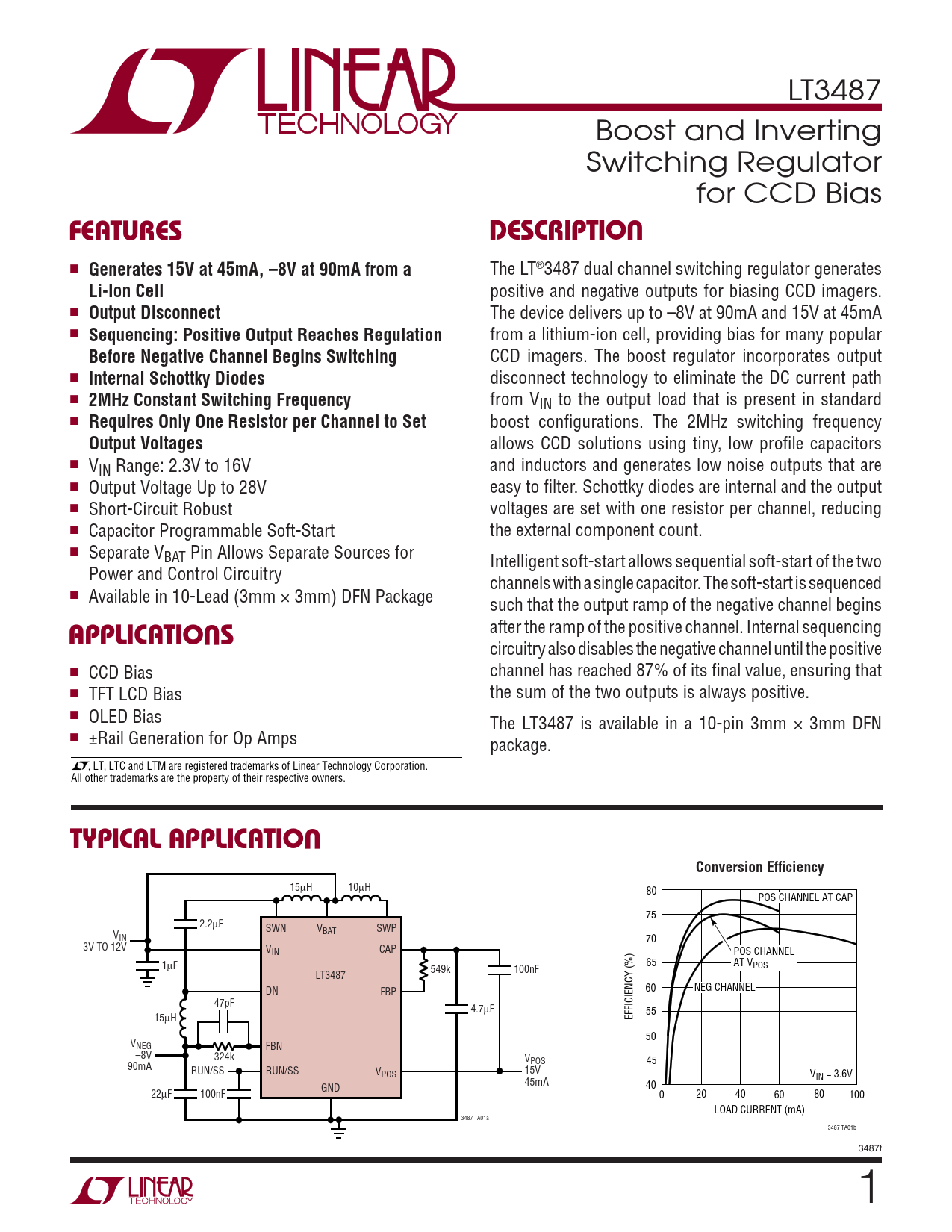

LT3487 Boost and Inverting Switching Regulator for CCD Bias UFEATURESDESCRIPTIO ■ Generates 15V at 45mA, –8V at 90mA from a The LT®3487 dual channel switching regulator generates Li-Ion Cell positive and negative outputs for biasing CCD imagers. ■ Output Disconnect The device delivers up to –8V at 90mA and 15V at 45mA ■ Sequencing: Positive Output Reaches Regulation from a lithium-ion cell, providing bias for many popular Before Negative Channel Begins Switching CCD imagers. The boost regulator incorporates output ■ Internal Schottky Diodes disconnect technology to eliminate the DC current path ■ 2MHz Constant Switching Frequency from VIN to the output load that is present in standard ■ Requires Only One Resistor per Channel to Set boost confi gurations. The 2MHz switching frequency Output Voltages allows CCD solutions using tiny, low profi le capacitors ■ VIN Range: 2.3V to 16V and inductors and generates low noise outputs that are ■ Output Voltage Up to 28V easy to fi lter. Schottky diodes are internal and the output ■ Short-Circuit Robust voltages are set with one resistor per channel, reducing ■ Capacitor Programmable Soft-Start the external component count. ■ Separate VBAT Pin Allows Separate Sources for Intelligent soft-start allows sequential soft-start of the two Power and Control Circuitry channels with a single capacitor. The soft-start is sequenced ■ Available in 10-Lead (3mm × 3mm) DFN Package U such that the output ramp of the negative channel begins APPLICATIO S after the ramp of the positive channel. Internal sequencing circuitry also disables the negative channel until the positive ■ CCD Bias channel has reached 87% of its fi nal value, ensuring that ■ TFT LCD Bias the sum of the two outputs is always positive. ■ OLED Bias The LT3487 is available in a 10-pin 3mm × 3mm DFN ■ ±Rail Generation for Op Amps package. , LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. UTYPICAL APPLICATIOConversion Effi ciency 15µH 10µH 80 POS CHANNEL AT CAP 75 2.2µF SWN VBAT SWP VIN 70 3V TO 12V VIN CAP POS CHANNEL 1µF 65 AT V 549k 100nF POS LT3487 DN FBP 60 NEG CHANNEL 47pF 4.7µF 55 15µH EFFICIENCY (%) 50 VNEG FBN –8V 324k VPOS 45 90mA RUN/SS RUN/SS VPOS 15V VIN = 3.6V 45mA GND 40 22µF 100nF 0 20 40 60 80 100 LOAD CURRENT (mA) 3487 TA01a 3487 TA01b 3487f 1
