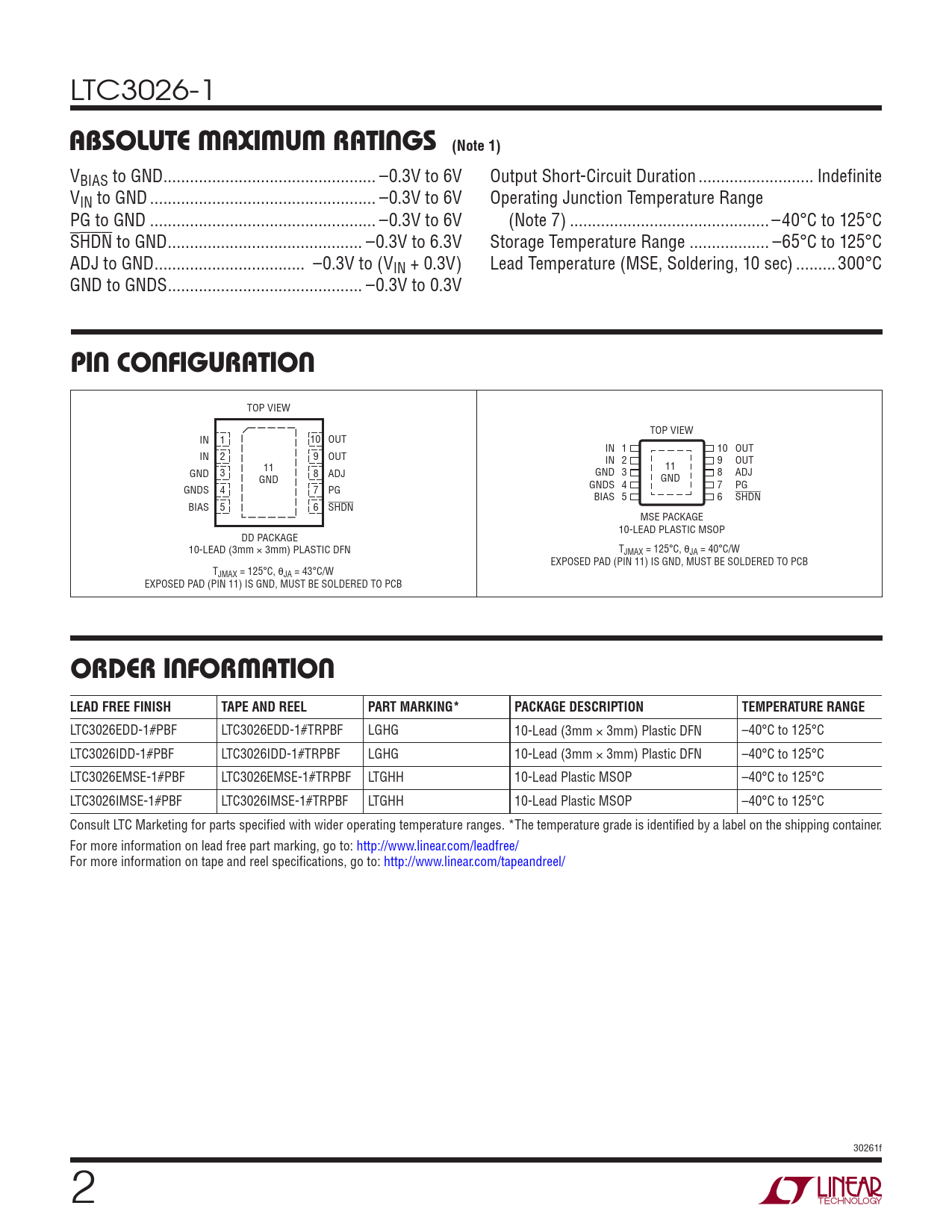

LTC3026-1
ABSOLUTE MAXIMUM RATINGS (Note 1)
VBIAS to GND .. –0.3V to 6V Output Short-Circuit Duration .. Indefinite VIN to GND ... –0.3V to 6V Operating Junction Temperature Range PG to GND ... –0.3V to 6V (Note 7) ... –40°C to 125°C SHDN to GND .. –0.3V to 6.3V Storage Temperature Range .. –65°C to 125°C ADJ to GND .. –0.3V to (VIN + 0.3V) Lead Temperature (MSE, Soldering, 10 sec) ... 300°C GND to GNDS .. –0.3V to 0.3V
PIN CONFIGURATION
TOP VIEW TOP VIEW IN 1 10 OUT IN 1 10 OUT IN 2 9 OUT IN 2 9 OUT 11 11 GND 3 8 ADJ GND 3 8 ADJ GND GND GNDS 4 7 PG GNDS 4 7 PG BIAS 5 6 SHDN BIAS 5 6 SHDN MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE 10-LEAD (3mm = 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3026EDD-1#PBF LTC3026EDD-1#TRPBF LGHG 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026IDD-1#PBF LTC3026IDD-1#TRPBF LGHG 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026EMSE-1#PBF LTC3026EMSE-1#TRPBF LTGHH 10-Lead Plastic MSOP –40°C to 125°C LTC3026IMSE-1#PBF LTC3026IMSE-1#TRPBF LTGHH 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 30261f 2
