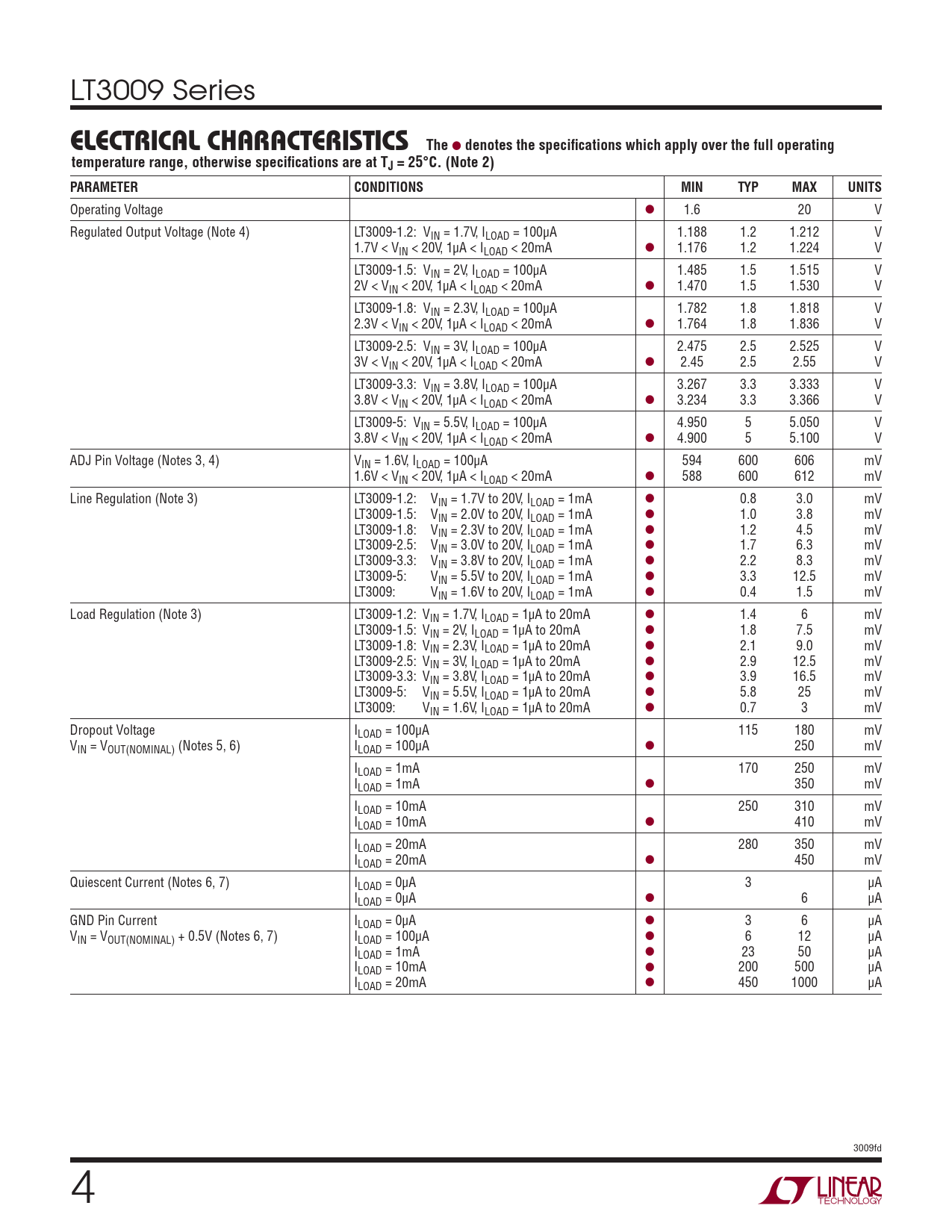

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Modelllinie für dieses Datenblatt
- LT3009EDC#PBF LT3009EDC#TRMPBF LT3009EDC#TRMPBF LT3009EDC#TRPBF LT3009EDC#TRPBF LT3009EDC-1.2#PBF LT3009EDC-1.2#TRMPBF LT3009EDC-1.2#TRMPBF LT3009EDC-1.2#TRPBF LT3009EDC-1.2#TRPBF LT3009EDC-1.5#PBF LT3009EDC-1.5#TRMPBF LT3009EDC-1.5#TRMPBF LT3009EDC-1.5#TRPBF LT3009EDC-1.5#TRPBF LT3009EDC-1.8#PBF LT3009EDC-1.8#TRMPBF LT3009EDC-1.8#TRMPBF LT3009EDC-1.8#TRPBF LT3009EDC-1.8#TRPBF LT3009EDC-2.5#PBF LT3009EDC-2.5#TRMPBF LT3009EDC-2.5#TRMPBF LT3009EDC-2.5#TRPBF LT3009EDC-2.5#TRPBF LT3009EDC-3.3#PBF LT3009EDC-3.3#TRMPBF LT3009EDC-3.3#TRMPBF LT3009EDC-3.3#TRPBF LT3009EDC-3.3#TRPBF LT3009EDC-5#PBF LT3009EDC-5#TRMPBF LT3009EDC-5#TRMPBF LT3009EDC-5#TRPBF LT3009EDC-5#TRPBF LT3009ESC8#PBF LT3009ESC8#TRMPBF LT3009ESC8#TRMPBF LT3009ESC8#TRPBF LT3009ESC8#TRPBF LT3009ESC8-1.2#PBF LT3009ESC8-1.2#TRMPBF LT3009ESC8-1.2#TRMPBF LT3009ESC8-1.2#TRPBF LT3009ESC8-1.2#TRPBF LT3009ESC8-1.5#PBF LT3009ESC8-1.5#TRMPBF LT3009ESC8-1.5#TRMPBF LT3009ESC8-1.5#TRPBF LT3009ESC8-1.5#TRPBF LT3009ESC8-1.8#PBF LT3009ESC8-1.8#TRMPBF LT3009ESC8-1.8#TRMPBF LT3009ESC8-1.8#TRPBF LT3009ESC8-1.8#TRPBF LT3009ESC8-2.5#PBF LT3009ESC8-2.5#TRMPBF LT3009ESC8-2.5#TRMPBF LT3009ESC8-2.5#TRPBF LT3009ESC8-2.5#TRPBF LT3009ESC8-3.3#PBF LT3009ESC8-3.3#TRMPBF LT3009ESC8-3.3#TRMPBF LT3009ESC8-3.3#TRPBF LT3009ESC8-3.3#TRPBF LT3009ESC8-5#PBF LT3009ESC8-5#TRMPBF LT3009ESC8-5#TRMPBF LT3009ESC8-5#TRPBF LT3009ESC8-5#TRPBF LT3009IDC#PBF LT3009IDC#TRMPBF LT3009IDC#TRMPBF LT3009IDC#TRPBF LT3009IDC#TRPBF LT3009IDC-1.2#PBF LT3009IDC-1.2#TRMPBF LT3009IDC-1.2#TRMPBF LT3009IDC-1.2#TRPBF LT3009IDC-1.2#TRPBF LT3009IDC-1.5#PBF LT3009IDC-1.5#TRMPBF LT3009IDC-1.5#TRMPBF LT3009IDC-1.5#TRPBF LT3009IDC-1.5#TRPBF LT3009IDC-1.8#PBF LT3009IDC-1.8#TRMPBF LT3009IDC-1.8#TRMPBF LT3009IDC-1.8#TRPBF LT3009IDC-1.8#TRPBF LT3009IDC-2.5#PBF LT3009IDC-2.5#TRMPBF LT3009IDC-2.5#TRMPBF LT3009IDC-2.5#TRPBF LT3009IDC-2.5#TRPBF LT3009IDC-3.3#PBF LT3009IDC-3.3#TRMPBF LT3009IDC-3.3#TRMPBF LT3009IDC-3.3#TRPBF LT3009IDC-3.3#TRPBF LT3009IDC-5#PBF LT3009IDC-5#TRMPBF LT3009IDC-5#TRMPBF LT3009IDC-5#TRPBF LT3009IDC-5#TRPBF
Textversion des Dokuments
LT3009 Series
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TJ = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Operating Voltage l 1.6 20 V Regulated Output Voltage (Note 4) LT3009-1.2: VIN = 1.7V, ILOAD = 100μA 1.188 1.2 1.212 V 1.7V < VIN < 20V, 1μA < ILOAD < 20mA l 1.176 1.2 1.224 V LT3009-1.5: VIN = 2V, ILOAD = 100μA 1.485 1.5 1.515 V 2V < VIN < 20V, 1μA < ILOAD < 20mA l 1.470 1.5 1.530 V LT3009-1.8: VIN = 2.3V, ILOAD = 100μA 1.782 1.8 1.818 V 2.3V < VIN < 20V, 1μA < ILOAD < 20mA l 1.764 1.8 1.836 V LT3009-2.5: VIN = 3V, ILOAD = 100μA 2.475 2.5 2.525 V 3V < VIN < 20V, 1μA < ILOAD < 20mA l 2.45 2.5 2.55 V LT3009-3.3: VIN = 3.8V, ILOAD = 100μA 3.267 3.3 3.333 V 3.8V < VIN < 20V, 1μA < ILOAD < 20mA l 3.234 3.3 3.366 V LT3009-5: VIN = 5.5V, ILOAD = 100μA 4.950 5 5.050 V 3.8V < VIN < 20V, 1μA < ILOAD < 20mA l 4.900 5 5.100 V ADJ Pin Voltage (Notes 3, 4) VIN = 1.6V, ILOAD = 100μA 594 600 606 mV 1.6V < VIN < 20V, 1μA < ILOAD < 20mA l 588 600 612 mV Line Regulation (Note 3) LT3009-1.2: VIN = 1.7V to 20V, ILOAD = 1mA l 0.8 3.0 mV LT3009-1.5: VIN = 2.0V to 20V, ILOAD = 1mA l 1.0 3.8 mV LT3009-1.8: VIN = 2.3V to 20V, ILOAD = 1mA l 1.2 4.5 mV LT3009-2.5: VIN = 3.0V to 20V, ILOAD = 1mA l 1.7 6.3 mV LT3009-3.3: VIN = 3.8V to 20V, ILOAD = 1mA l 2.2 8.3 mV LT3009-5: VIN = 5.5V to 20V, ILOAD = 1mA l 3.3 12.5 mV LT3009: VIN = 1.6V to 20V, ILOAD = 1mA l 0.4 1.5 mV Load Regulation (Note 3) LT3009-1.2: VIN = 1.7V, ILOAD = 1μA to 20mA l 1.4 6 mV LT3009-1.5: VIN = 2V, ILOAD = 1μA to 20mA l 1.8 7.5 mV LT3009-1.8: VIN = 2.3V, ILOAD = 1μA to 20mA l 2.1 9.0 mV LT3009-2.5: VIN = 3V, ILOAD = 1μA to 20mA l 2.9 12.5 mV LT3009-3.3: VIN = 3.8V, ILOAD = 1μA to 20mA l 3.9 16.5 mV LT3009-5: VIN = 5.5V, ILOAD = 1μA to 20mA l 5.8 25 mV LT3009: VIN = 1.6V, ILOAD = 1μA to 20mA l 0.7 3 mV Dropout Voltage ILOAD = 100μA 115 180 mV VIN = VOUT(NOMINAL) (Notes 5, 6) ILOAD = 100μA l 250 mV ILOAD = 1mA 170 250 mV ILOAD = 1mA l 350 mV ILOAD = 10mA 250 310 mV ILOAD = 10mA l 410 mV ILOAD = 20mA 280 350 mV ILOAD = 20mA l 450 mV Quiescent Current (Notes 6, 7) ILOAD = 0μA 3 μA ILOAD = 0μA l 6 μA GND Pin Current ILOAD = 0μA l 3 6 μA VIN = VOUT(NOMINAL) + 0.5V (Notes 6, 7) ILOAD = 100μA l 6 12 μA ILOAD = 1mA l 23 50 μA ILOAD = 10mA l 200 500 μA ILOAD = 20mA l 450 1000 μA 3009fd 4
