Datasheet LT3009 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | 3µA IQ, 20mA Low Dropout Linear Regulators |
| Seiten / Seite | 20 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| Dateiformat / Größe | PDF / 269 Kb |
| Dokumentensprache | Englisch |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Modelllinie für dieses Datenblatt
- LT3009EDC#PBF LT3009EDC#TRMPBF LT3009EDC#TRMPBF LT3009EDC#TRPBF LT3009EDC#TRPBF LT3009EDC-1.2#PBF LT3009EDC-1.2#TRMPBF LT3009EDC-1.2#TRMPBF LT3009EDC-1.2#TRPBF LT3009EDC-1.2#TRPBF LT3009EDC-1.5#PBF LT3009EDC-1.5#TRMPBF LT3009EDC-1.5#TRMPBF LT3009EDC-1.5#TRPBF LT3009EDC-1.5#TRPBF LT3009EDC-1.8#PBF LT3009EDC-1.8#TRMPBF LT3009EDC-1.8#TRMPBF LT3009EDC-1.8#TRPBF LT3009EDC-1.8#TRPBF LT3009EDC-2.5#PBF LT3009EDC-2.5#TRMPBF LT3009EDC-2.5#TRMPBF LT3009EDC-2.5#TRPBF LT3009EDC-2.5#TRPBF LT3009EDC-3.3#PBF LT3009EDC-3.3#TRMPBF LT3009EDC-3.3#TRMPBF LT3009EDC-3.3#TRPBF LT3009EDC-3.3#TRPBF LT3009EDC-5#PBF LT3009EDC-5#TRMPBF LT3009EDC-5#TRMPBF LT3009EDC-5#TRPBF LT3009EDC-5#TRPBF LT3009ESC8#PBF LT3009ESC8#TRMPBF LT3009ESC8#TRMPBF LT3009ESC8#TRPBF LT3009ESC8#TRPBF LT3009ESC8-1.2#PBF LT3009ESC8-1.2#TRMPBF LT3009ESC8-1.2#TRMPBF LT3009ESC8-1.2#TRPBF LT3009ESC8-1.2#TRPBF LT3009ESC8-1.5#PBF LT3009ESC8-1.5#TRMPBF LT3009ESC8-1.5#TRMPBF LT3009ESC8-1.5#TRPBF LT3009ESC8-1.5#TRPBF LT3009ESC8-1.8#PBF LT3009ESC8-1.8#TRMPBF LT3009ESC8-1.8#TRMPBF LT3009ESC8-1.8#TRPBF LT3009ESC8-1.8#TRPBF LT3009ESC8-2.5#PBF LT3009ESC8-2.5#TRMPBF LT3009ESC8-2.5#TRMPBF LT3009ESC8-2.5#TRPBF LT3009ESC8-2.5#TRPBF LT3009ESC8-3.3#PBF LT3009ESC8-3.3#TRMPBF LT3009ESC8-3.3#TRMPBF LT3009ESC8-3.3#TRPBF LT3009ESC8-3.3#TRPBF LT3009ESC8-5#PBF LT3009ESC8-5#TRMPBF LT3009ESC8-5#TRMPBF LT3009ESC8-5#TRPBF LT3009ESC8-5#TRPBF LT3009IDC#PBF LT3009IDC#TRMPBF LT3009IDC#TRMPBF LT3009IDC#TRPBF LT3009IDC#TRPBF LT3009IDC-1.2#PBF LT3009IDC-1.2#TRMPBF LT3009IDC-1.2#TRMPBF LT3009IDC-1.2#TRPBF LT3009IDC-1.2#TRPBF LT3009IDC-1.5#PBF LT3009IDC-1.5#TRMPBF LT3009IDC-1.5#TRMPBF LT3009IDC-1.5#TRPBF LT3009IDC-1.5#TRPBF LT3009IDC-1.8#PBF LT3009IDC-1.8#TRMPBF LT3009IDC-1.8#TRMPBF LT3009IDC-1.8#TRPBF LT3009IDC-1.8#TRPBF LT3009IDC-2.5#PBF LT3009IDC-2.5#TRMPBF LT3009IDC-2.5#TRMPBF LT3009IDC-2.5#TRPBF LT3009IDC-2.5#TRPBF LT3009IDC-3.3#PBF LT3009IDC-3.3#TRMPBF LT3009IDC-3.3#TRMPBF LT3009IDC-3.3#TRPBF LT3009IDC-3.3#TRPBF LT3009IDC-5#PBF LT3009IDC-5#TRMPBF LT3009IDC-5#TRMPBF LT3009IDC-5#TRPBF LT3009IDC-5#TRPBF
Textversion des Dokuments
LT3009 Series

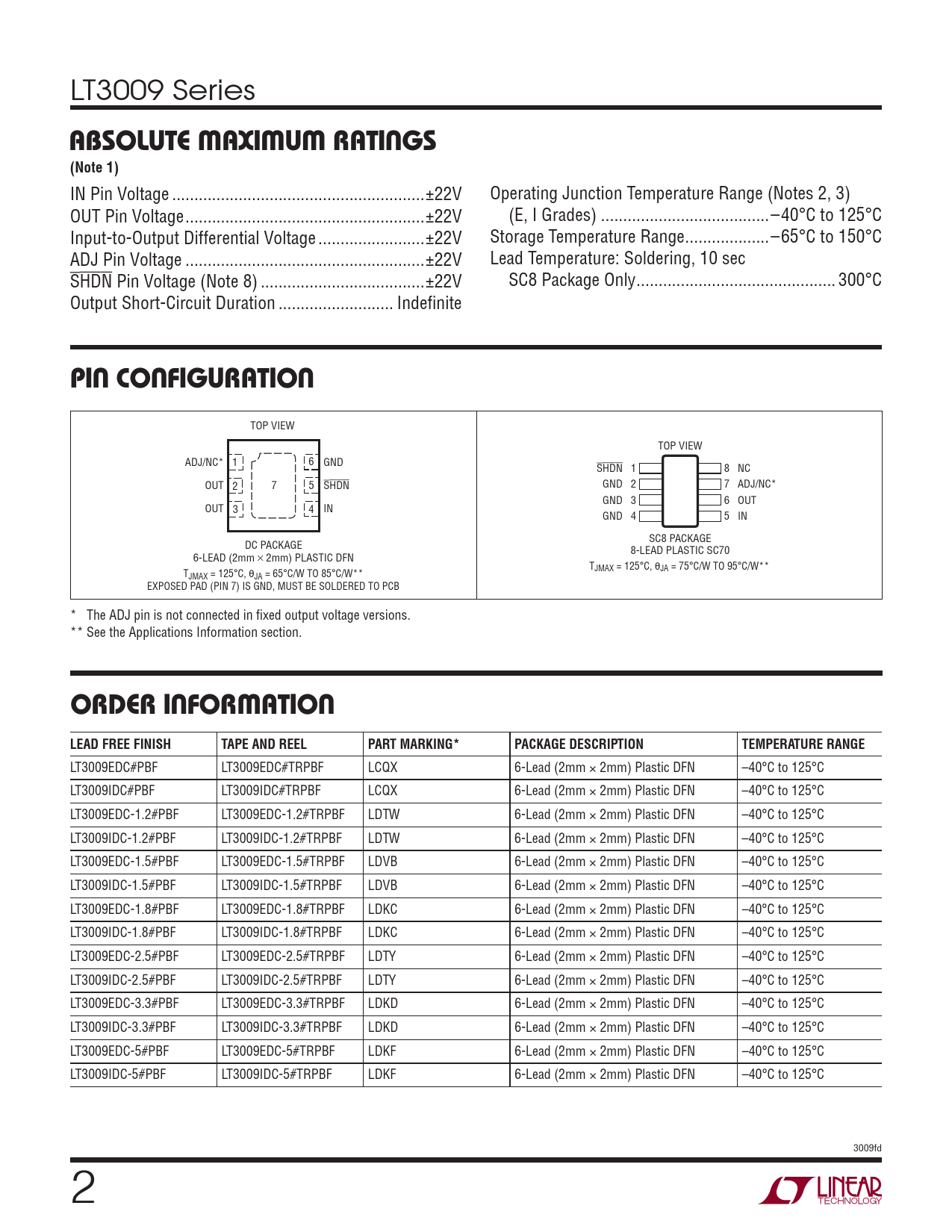

ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±22V Operating Junction Temperature Range (Notes 2, 3) OUT Pin Voltage ..±22V (E, I Grades) ..–40°C to 125°C Input-to-Output Differential Voltage ..±22V Storage Temperature Range ...–65°C to 150°C ADJ Pin Voltage ..±22V Lead Temperature: Soldering, 10 sec SHDN Pin Voltage (Note 8) ...±22V SC8 Package Only ... 300°C Output Short-Circuit Duration .. Indefi nite
PIN CONFIGURATION
TOP VIEW TOP VIEW ADJ/NC* 1 6 GND SHDN 1 8 NC OUT 2 7 5 SHDN GND 2 7 ADJ/NC* GND 3 6 OUT OUT 3 4 IN GND 4 5 IN SC8 PACKAGE DC PACKAGE 8-LEAD PLASTIC SC70 6-LEAD (2mm s 2mm) PLASTIC DFN T T JMAX = 125°C, θJA = 75°C/W TO 95°C/W** JMAX = 125°C, θJA = 65°C/W TO 85°C/W** EXPOSED PAD (PIN 7) IS GND, MUST BE SOLDERED TO PCB * The ADJ pin is not connected in fi xed output voltage versions. ** See the Applications Information section.
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3009EDC#PBF LT3009EDC#TRPBF LCQX 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC#PBF LT3009IDC#TRPBF LCQX 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.2#PBF LT3009EDC-1.2#TRPBF LDTW 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.2#PBF LT3009IDC-1.2#TRPBF LDTW 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.5#PBF LT3009EDC-1.5#TRPBF LDVB 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.5#PBF LT3009IDC-1.5#TRPBF LDVB 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.8#PBF LT3009EDC-1.8#TRPBF LDKC 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.8#PBF LT3009IDC-1.8#TRPBF LDKC 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-2.5#PBF LT3009EDC-2.5#TRPBF LDTY 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-2.5#PBF LT3009IDC-2.5#TRPBF LDTY 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-3.3#PBF LT3009EDC-3.3#TRPBF LDKD 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-3.3#PBF LT3009IDC-3.3#TRPBF LDKD 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-5#PBF LT3009EDC-5#TRPBF LDKF 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-5#PBF LT3009IDC-5#TRPBF LDKF 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C 3009fd 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±22V Operating Junction Temperature Range (Notes 2, 3) OUT Pin Voltage ..±22V (E, I Grades) ..–40°C to 125°C Input-to-Output Differential Voltage ..±22V Storage Temperature Range ...–65°C to 150°C ADJ Pin Voltage ..±22V Lead Temperature: Soldering, 10 sec SHDN Pin Voltage (Note 8) ...±22V SC8 Package Only ... 300°C Output Short-Circuit Duration .. Indefi nite
PIN CONFIGURATION
TOP VIEW TOP VIEW ADJ/NC* 1 6 GND SHDN 1 8 NC OUT 2 7 5 SHDN GND 2 7 ADJ/NC* GND 3 6 OUT OUT 3 4 IN GND 4 5 IN SC8 PACKAGE DC PACKAGE 8-LEAD PLASTIC SC70 6-LEAD (2mm s 2mm) PLASTIC DFN T T JMAX = 125°C, θJA = 75°C/W TO 95°C/W** JMAX = 125°C, θJA = 65°C/W TO 85°C/W** EXPOSED PAD (PIN 7) IS GND, MUST BE SOLDERED TO PCB * The ADJ pin is not connected in fi xed output voltage versions. ** See the Applications Information section.
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3009EDC#PBF LT3009EDC#TRPBF LCQX 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC#PBF LT3009IDC#TRPBF LCQX 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.2#PBF LT3009EDC-1.2#TRPBF LDTW 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.2#PBF LT3009IDC-1.2#TRPBF LDTW 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.5#PBF LT3009EDC-1.5#TRPBF LDVB 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.5#PBF LT3009IDC-1.5#TRPBF LDVB 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-1.8#PBF LT3009EDC-1.8#TRPBF LDKC 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-1.8#PBF LT3009IDC-1.8#TRPBF LDKC 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-2.5#PBF LT3009EDC-2.5#TRPBF LDTY 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-2.5#PBF LT3009IDC-2.5#TRPBF LDTY 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-3.3#PBF LT3009EDC-3.3#TRPBF LDKD 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-3.3#PBF LT3009IDC-3.3#TRPBF LDKD 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009EDC-5#PBF LT3009EDC-5#TRPBF LDKF 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3009IDC-5#PBF LT3009IDC-5#TRPBF LDKF 6-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C 3009fd 2
