TYPICAL APPLICATIONS N. Minimum Parts Count LT1585A Adjustable Circuit. for the Intel 120MHz Pentium Processor
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1585A/LT1585A-3.3

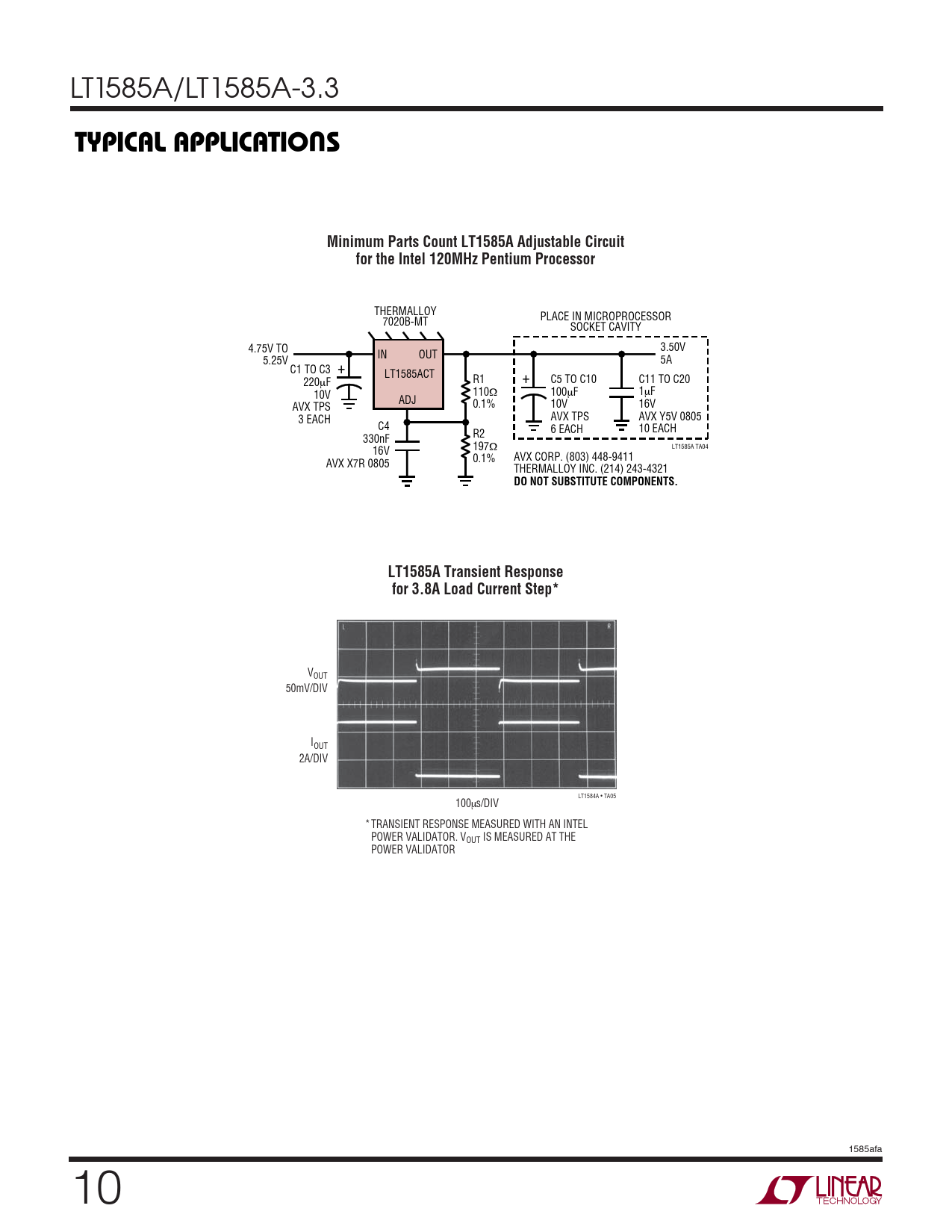

U TYPICAL APPLICATIONS N Minimum Parts Count LT1585A Adjustable Circuit for the Intel 120MHz Pentium Processor
THERMALLOY PLACE IN MICROPROCESSOR 7020B-MT SOCKET CAVITY 4.75V TO 3.50V IN OUT 5.25V 5A C1 TO C3 + LT1585ACT 220µF R1 + C5 TO C10 C11 TO C20 10V 110Ω 100µF 1µF ADJ AVX TPS 0.1% 10V 16V 3 EACH AVX TPS AVX Y5V 0805 C4 6 EACH 10 EACH R2 330nF 197 16V Ω LT1585A TA04 0.1% AVX CORP. (803) 448-9411 AVX X7R 0805 THERMALLOY INC. (214) 243-4321
DO NOT SUBSTITUTE COMPONENTS. LT1585A Transient Response for 3.8A Load Current Step*
VOUT 50mV/DIV IOUT 2A/DIV LT1584A • TA05 100µs/DIV *TRANSIENT RESPONSE MEASURED WITH AN INTEL POWER VALIDATOR. VOUT IS MEASURED AT THE POWER VALIDATOR 1585afa 10
