Datasheet LTC1391 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | 8-Channel Analog Multiplexer with Cascadable Serial Interface |
| Seiten / Seite | 12 / 10 — PACKAGE DESCRIPTIO. N Package. 16-Lead PDIP (Narrow .300 Inch) |
| Revision | LTC1391: 8-Channel Analog Multiplexer with Cascadable Serial Interface Data Sheet |
| Dateiformat / Größe | PDF / 185 Kb |
| Dokumentensprache | Englisch |
PACKAGE DESCRIPTIO. N Package. 16-Lead PDIP (Narrow .300 Inch)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC1391

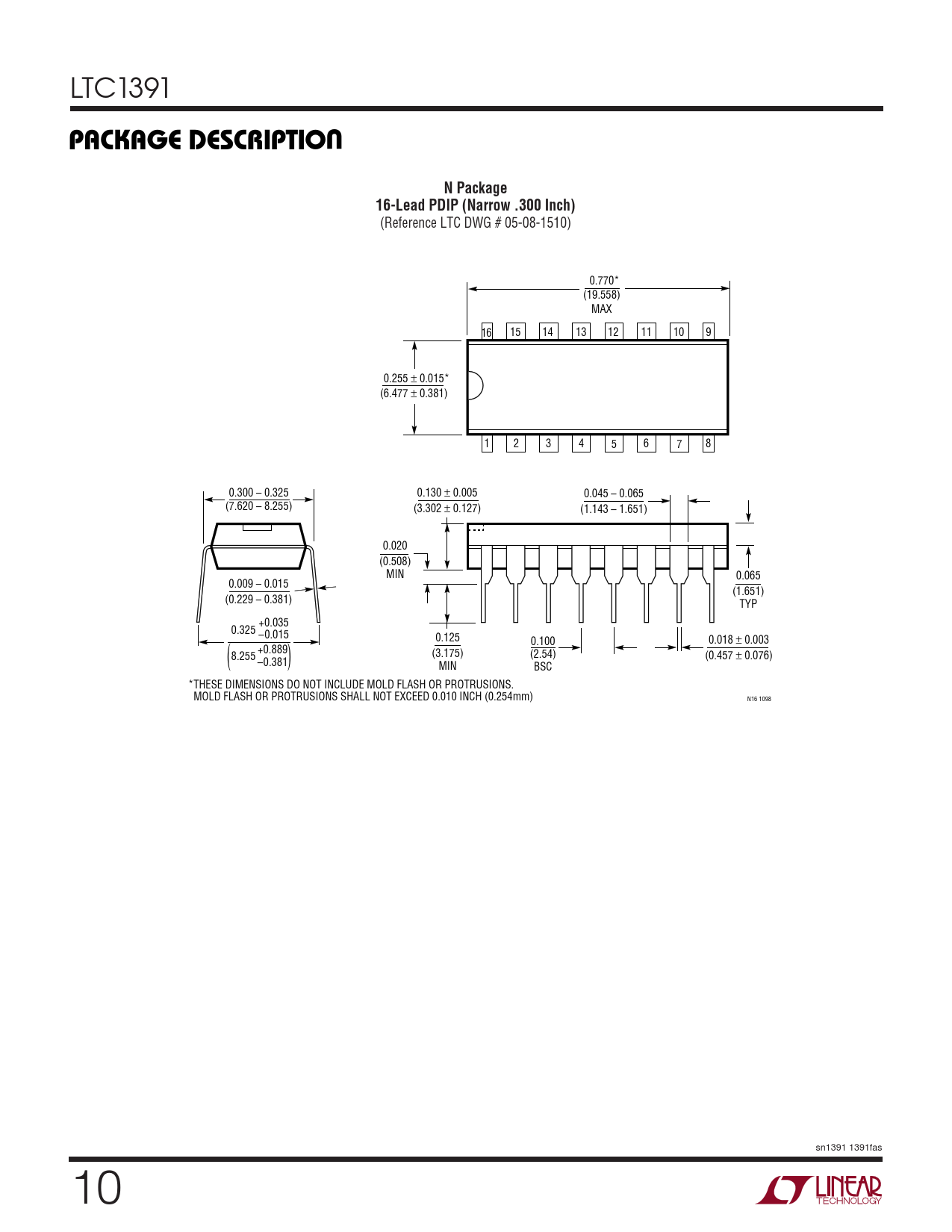

U PACKAGE DESCRIPTIO N Package 16-Lead PDIP (Narrow .300 Inch)
(Reference LTC DWG # 05-08-1510) 0.770* (19.558) MAX 16 15 14 13 12 11 10 9 0.255 ± 0.015* (6.477 ± 0.381) 1 2 3 4 5 6 7 8 0.300 – 0.325 0.130 ± 0.005 0.045 – 0.065 (7.620 – 8.255) (3.302 ± 0.127) (1.143 – 1.651) 0.020 (0.508) MIN 0.065 0.009 – 0.015 (1.651) (0.229 – 0.381) TYP +0.035 0.325 –0.015 0.125 0.100 0.018 ± 0.003 +0.889 (3.175) (2.54) 8.255 (0.457 ± 0.076) ( ) –0.381 MIN BSC *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.010 INCH (0.254mm) N16 1098 sn1391 1391fas 10
