Typical perFormance characTerisTics. TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V,
Modelllinie für dieses Datenblatt
- LTC2378CDE-18#PBF LTC2378CDE-18#PBF LTC2378CDE-18#TRPBF LTC2378CDE-18#TRPBF LTC2378CMS-18#PBF LTC2378CMS-18#PBF LTC2378CMS-18#TRPBF LTC2378CMS-18#TRPBF LTC2378HMS-18#PBF LTC2378HMS-18#PBF LTC2378HMS-18#TRPBF LTC2378HMS-18#TRPBF LTC2378IDE-18#PBF LTC2378IDE-18#PBF LTC2378IDE-18#TRPBF LTC2378IDE-18#TRPBF LTC2378IMS-18#PBF LTC2378IMS-18#PBF LTC2378IMS-18#TRPBF LTC2378IMS-18#TRPBF
Textversion des Dokuments
LTC2378-18

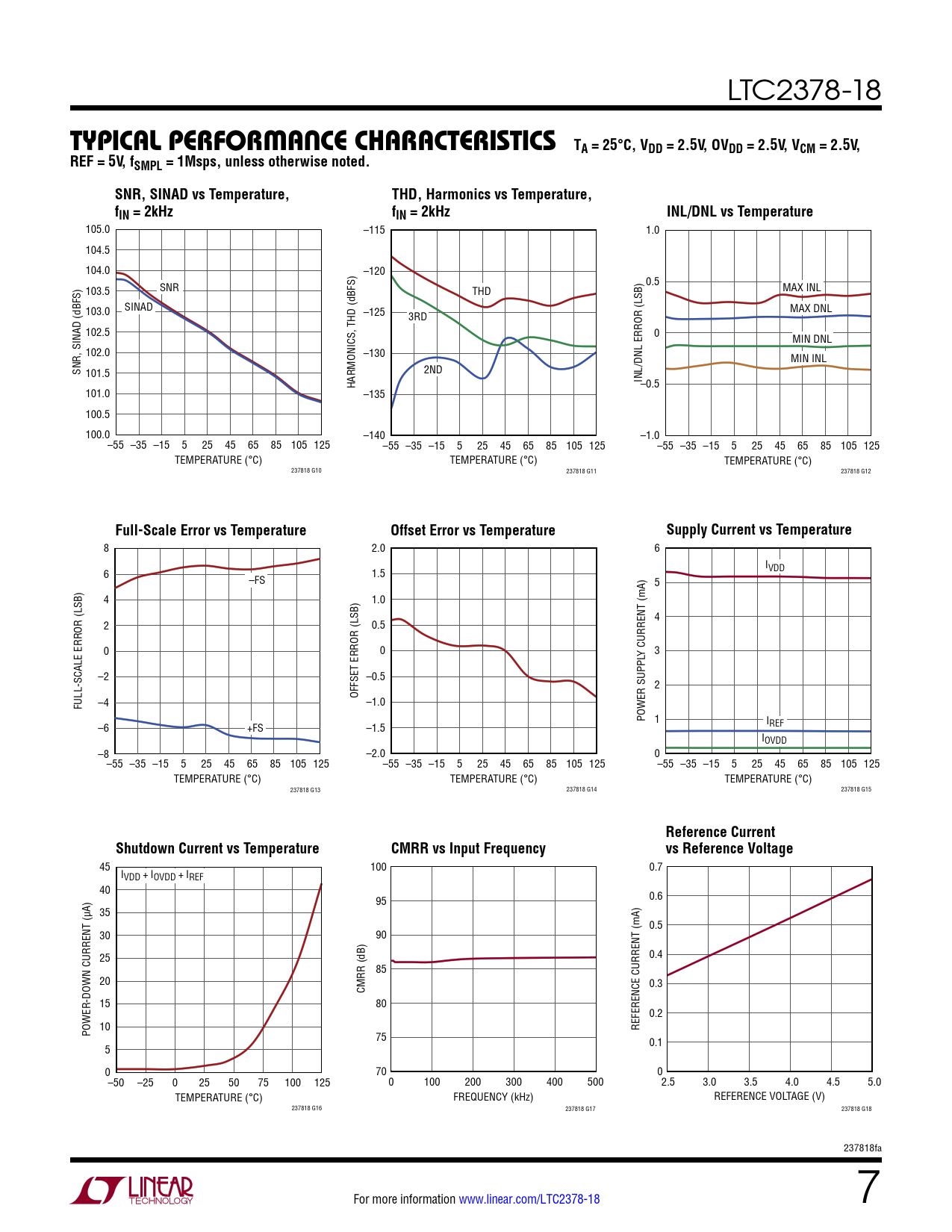

Typical perFormance characTerisTics TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V, REF = 5V, fSMPL = 1Msps, unless otherwise noted. SNR, SINAD vs Temperature, THD, Harmonics vs Temperature, fIN = 2kHz fIN = 2kHz INL/DNL vs Temperature
