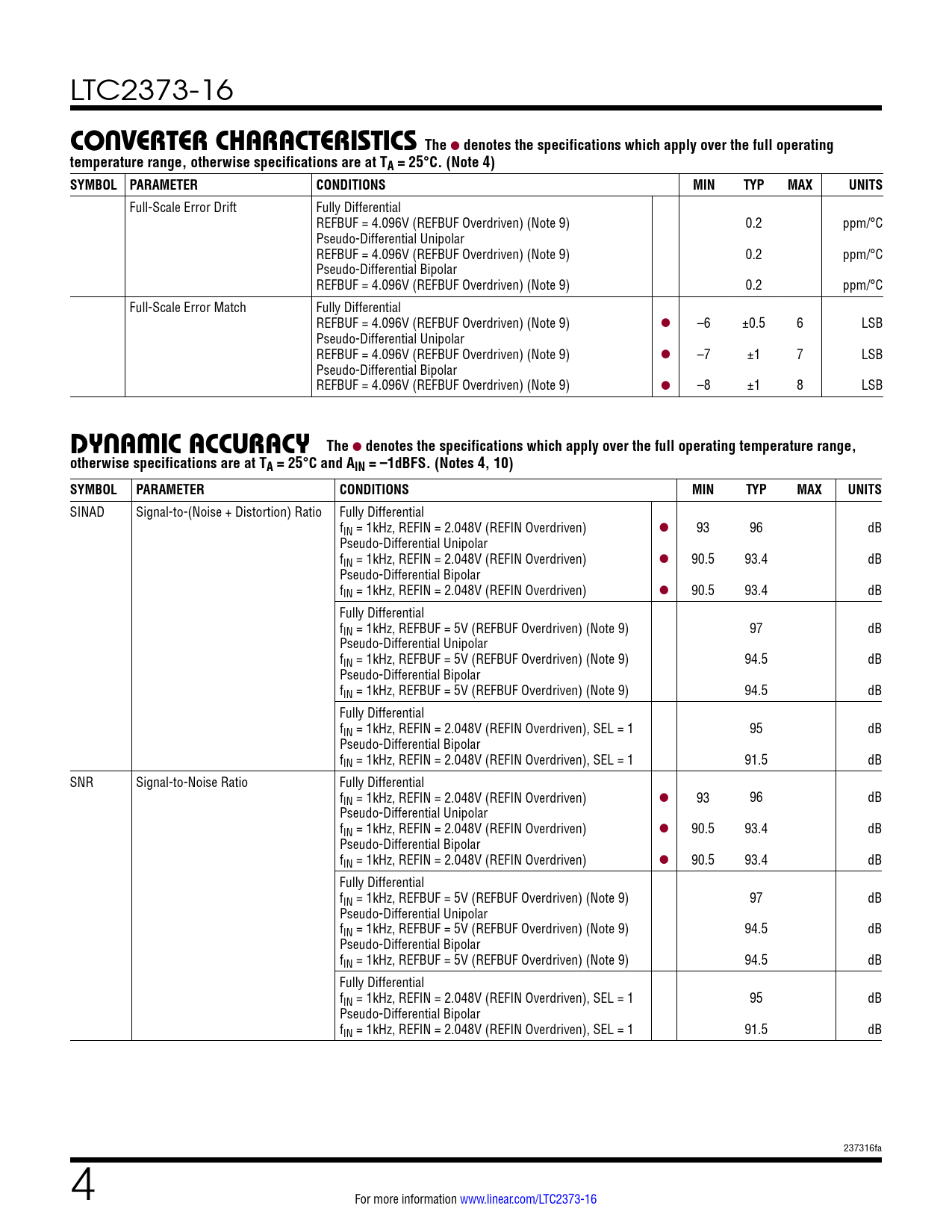

Datasheet LTC2373-16 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 1Msps, 8-Channel SAR ADC with 96dB SNR |
| Seiten / Seite | 52 / 4 — c onverTer characTerisTics The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 2.8 Mb |
| Dokumentensprache | Englisch |
c onverTer characTerisTics The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2373-16
c onverTer characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Full-Scale Error Drift Fully Differential REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Pseudo-Differential Unipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Pseudo-Differential Bipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Full-Scale Error Match Fully Differential REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –6 ±0.5 6 LSB Pseudo-Differential Unipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –7 ±1 7 LSB Pseudo-Differential Bipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –8 ±1 8 LSB
Dyna Mic accuracy The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C and AIN = –1dBFS. (Notes 4, 10) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + Distortion) Ratio Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 93 96 dB Pseudo-Differential Unipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Fully Differential fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 97 dB Pseudo-Differential Unipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Pseudo-Differential Bipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 95 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 91.5 dB SNR Signal-to-Noise Ratio Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 93 96 dB Pseudo-Differential Unipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Fully Differential fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 97 dB Pseudo-Differential Unipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Pseudo-Differential Bipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 95 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 91.5 dB 237316fa 4 For more information www.linear.com/LTC2373-16 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram
c onverTer characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Full-Scale Error Drift Fully Differential REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Pseudo-Differential Unipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Pseudo-Differential Bipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) 0.2 ppm/°C Full-Scale Error Match Fully Differential REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –6 ±0.5 6 LSB Pseudo-Differential Unipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –7 ±1 7 LSB Pseudo-Differential Bipolar REFBUF = 4.096V (REFBUF Overdriven) (Note 9) l –8 ±1 8 LSB
Dyna Mic accuracy The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C and AIN = –1dBFS. (Notes 4, 10) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + Distortion) Ratio Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 93 96 dB Pseudo-Differential Unipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Fully Differential fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 97 dB Pseudo-Differential Unipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Pseudo-Differential Bipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 95 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 91.5 dB SNR Signal-to-Noise Ratio Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 93 96 dB Pseudo-Differential Unipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven) l 90.5 93.4 dB Fully Differential fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 97 dB Pseudo-Differential Unipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Pseudo-Differential Bipolar fIN = 1kHz, REFBUF = 5V (REFBUF Overdriven) (Note 9) 94.5 dB Fully Differential fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 95 dB Pseudo-Differential Bipolar fIN = 1kHz, REFIN = 2.048V (REFIN Overdriven), SEL = 1 91.5 dB 237316fa 4 For more information www.linear.com/LTC2373-16 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram
