Datasheet LTC2367-18 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | 18-Bit, 500ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR |
| Seiten / Seite | 24 / 9 — FUNCTIONAL BLOCK DIAGRAM. TIMING DIAGRAM. Conversion Timing Using the … |
| Dateiformat / Größe | PDF / 2.1 Mb |
| Dokumentensprache | Englisch |
FUNCTIONAL BLOCK DIAGRAM. TIMING DIAGRAM. Conversion Timing Using the Serial Interface
Modelllinie für dieses Datenblatt
- LTC2367CDE-18#PBF LTC2367CDE-18#PBF LTC2367CDE-18#TRPBF LTC2367CDE-18#TRPBF LTC2367CMS-18#PBF LTC2367CMS-18#PBF LTC2367CMS-18#TRPBF LTC2367CMS-18#TRPBF LTC2367HMS-18#PBF LTC2367HMS-18#PBF LTC2367HMS-18#TRPBF LTC2367HMS-18#TRPBF LTC2367IDE-18#PBF LTC2367IDE-18#PBF LTC2367IDE-18#TRPBF LTC2367IDE-18#TRPBF LTC2367IMS-18#PBF LTC2367IMS-18#PBF LTC2367IMS-18#TRPBF LTC2367IMS-18#TRPBF
Textversion des Dokuments
LTC2367-18

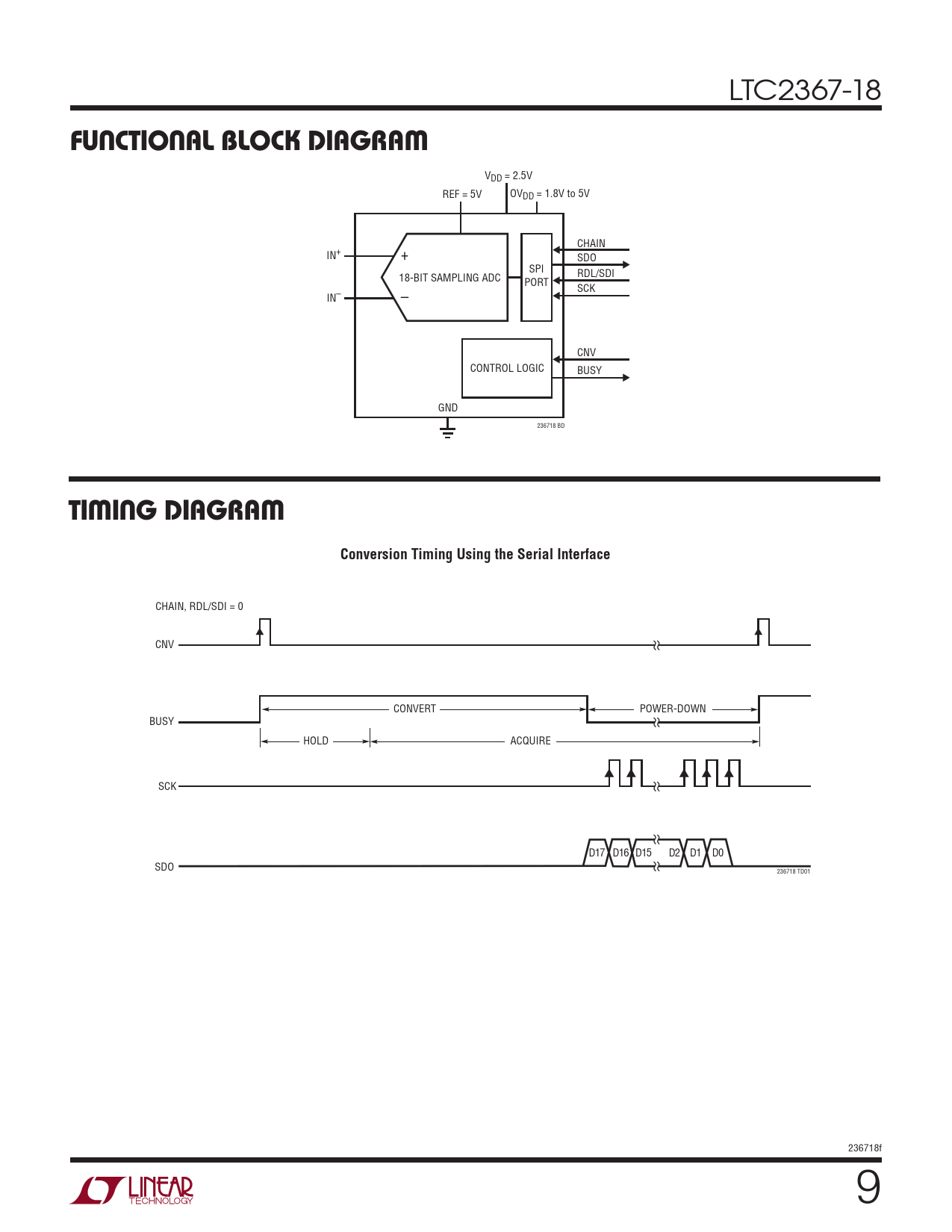

FUNCTIONAL BLOCK DIAGRAM
VDD = 2.5V REF = 5V OVDD = 1.8V to 5V CHAIN IN+ + SDO SPI RDL/SDI 18-BIT SAMPLING ADC PORT SCK IN– – CNV CONTROL LOGIC BUSY GND 236718 BD
TIMING DIAGRAM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 CNV CONVERT POWER-DOWN BUSY HOLD ACQUIRE SCK D17 D16 D15 D2 D1 D0 SDO 236718 TD01 236718f 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Timing Diagrams Board Layout Package Description Typical Application Related Parts
FUNCTIONAL BLOCK DIAGRAM
VDD = 2.5V REF = 5V OVDD = 1.8V to 5V CHAIN IN+ + SDO SPI RDL/SDI 18-BIT SAMPLING ADC PORT SCK IN– – CNV CONTROL LOGIC BUSY GND 236718 BD
TIMING DIAGRAM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 CNV CONVERT POWER-DOWN BUSY HOLD ACQUIRE SCK D17 D16 D15 D2 D1 D0 SDO 236718 TD01 236718f 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Timing Diagrams Board Layout Package Description Typical Application Related Parts
