TYPICAL PERFORMANCE CHARACTERISTICS (LTC2301) TA = 25°C, VDD = 5V, fSMPL = 14ksps, unless otherwise noted
Modelllinie für dieses Datenblatt
- LTC2301CDE#PBF LTC2301CDE#PBF LTC2301CDE#TRPBF LTC2301CDE#TRPBF LTC2301CMS#PBF LTC2301CMS#PBF LTC2301CMS#TRPBF LTC2301CMS#TRPBF LTC2301HMS#PBF LTC2301HMS#PBF LTC2301HMS#TRPBF LTC2301HMS#TRPBF LTC2301IDE#PBF LTC2301IDE#PBF LTC2301IDE#TRPBF LTC2301IDE#TRPBF LTC2301IMS#PBF LTC2301IMS#PBF LTC2301IMS#TRPBF LTC2301IMS#TRPBF
- LTC2305CDE#PBF LTC2305CDE#PBF LTC2305CDE#TRPBF LTC2305CDE#TRPBF LTC2305CMS#PBF LTC2305CMS#PBF LTC2305CMS#TRPBF LTC2305CMS#TRPBF LTC2305HMS#PBF LTC2305HMS#PBF LTC2305HMS#TRPBF LTC2305HMS#TRPBF LTC2305IDE#PBF LTC2305IDE#PBF LTC2305IDE#TRPBF LTC2305IDE#TRPBF LTC2305IMS#PBF LTC2305IMS#PBF LTC2305IMS#TRPBF LTC2305IMS#TRPBF
Textversion des Dokuments
LTC2301/LTC2305

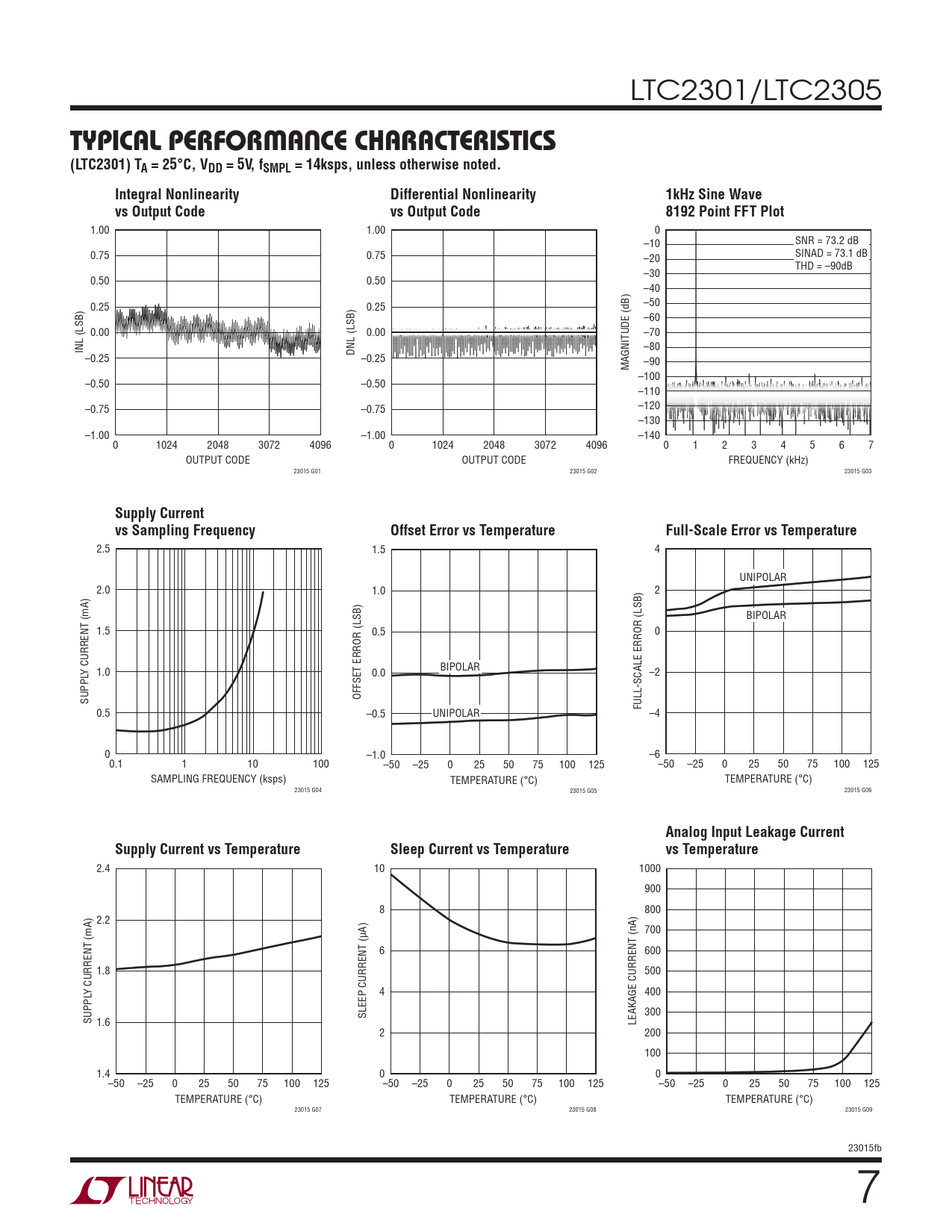

TYPICAL PERFORMANCE CHARACTERISTICS (LTC2301) TA = 25°C, VDD = 5V, fSMPL = 14ksps, unless otherwise noted. Integral Nonlinearity Differential Nonlinearity 1kHz Sine Wave vs Output Code vs Output Code 8192 Point FFT Plot
1.00 1.00 0 –10 SNR = 73.2 dB 0.75 0.75 SINAD = 73.1 dB –20 THD = –90dB –30 0.50 0.50 –40 0.25 0.25 –50 –60 0.00 0.00 –70 INL (LSB) DNL (LSB) –80 –0.25 –0.25 MAGNITUDE (dB) –90 –100 –0.50 –0.50 –110 –0.75 –0.75 –120 –130 –1.00 –1.00 –140 0 1024 2048 3072 4096 0 1024 2048 3072 4096 0 1 2 3 4 5 6 7 OUTPUT CODE OUTPUT CODE FREQUENCY (kHz) 23015 G01 23015 G02 23015 G03
Supply Current vs Sampling Frequency Offset Error vs Temperature Full-Scale Error vs Temperature
2.5 1.5 4 UNIPOLAR 2.0 1.0 2 BIPOLAR 1.5 0.5 0 Y CURRENT (mA) 1.0 BIPOLAR 0.0 –2 SUPPL OFFSET ERROR (LSB) FULL-SCALE ERROR (LSB) 0.5 –0.5 UNIPOLAR –4 0 –1.0 –6 0.1 1 10 100 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 SAMPLING FREQUENCY (ksps) TEMPERATURE (°C) TEMPERATURE (°C) 23015 G04 23015 G05 23015 G06
Analog Input Leakage Current Supply Current vs Temperature Sleep Current vs Temperature vs Temperature
2.4 10 1000 900 8 800 2.2 700 6 600 1.8 500 Y CURRENT (mA) 4 400 300 SUPPL SLEEP CURRENT (μA) 1.6 LEAKAGE CURRENT (nA) 2 200 100 1.4 0 0 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 23015 G07 23015 G08 23015 G09 23015fb 7
