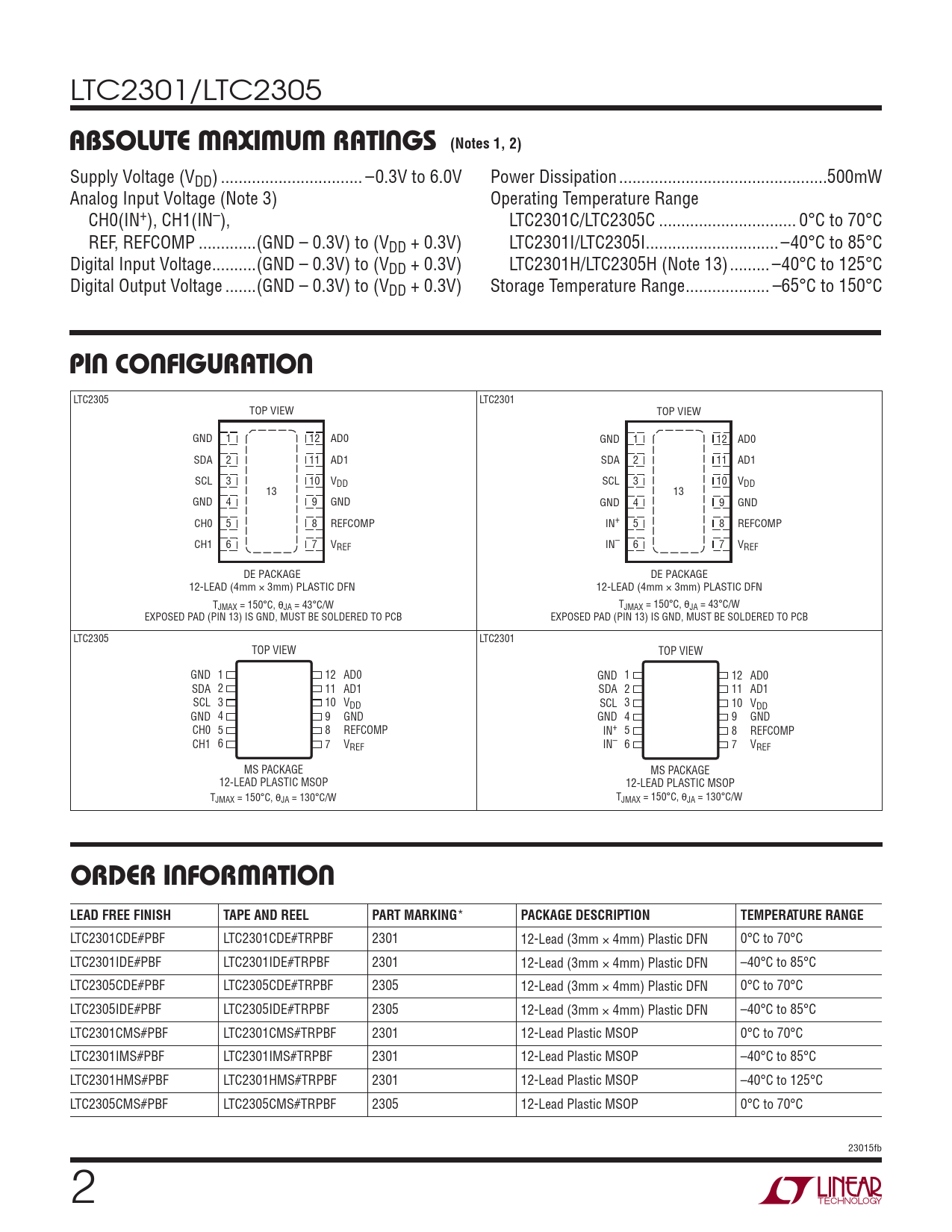

LTC2301/LTC2305
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) .. –0.3V to 6.0V Power Dissipation ...500mW Analog Input Voltage (Note 3) Operating Temperature Range CH0(IN+), CH1(IN–), LTC2301C/LTC2305C ... 0°C to 70°C REF, REFCOMP ...(GND – 0.3V) to (VDD + 0.3V) LTC2301I/LTC2305I .. –40°C to 85°C Digital Input Voltage ..(GND – 0.3V) to (VDD + 0.3V) LTC2301H/LTC2305H (Note 13) ... –40°C to 125°C Digital Output Voltage ...(GND – 0.3V) to (VDD + 0.3V) Storage Temperature Range ... –65°C to 150°C
PIN CONFIGURATION
LTC2305 LTC2301 TOP VIEW TOP VIEW GND 1 12 AD0 GND 1 12 AD0 SDA 2 11 AD1 SDA 2 11 AD1 SCL 3 10 VDD SCL 3 10 VDD 13 13 GND 4 9 GND GND 4 9 GND CH0 5 8 REFCOMP IN+ 5 8 REFCOMP CH1 6 7 VREF IN– 6 7 VREF DE PACKAGE DE PACKAGE 12-LEAD (4mm × 3mm) PLASTIC DFN 12-LEAD (4mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 43°C/W TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB LTC2305 LTC2301 TOP VIEW TOP VIEW GND 1 12 AD0 GND 1 12 AD0 SDA 2 11 AD1 SDA 2 11 AD1 SCL 3 10 VDD SCL 3 10 VDD GND 4 9 GND GND 4 9 GND CH0 5 8 REFCOMP IN+ 5 8 REFCOMP CH1 6 7 VREF IN– 6 7 VREF MS PACKAGE MS PACKAGE 12-LEAD PLASTIC MSOP 12-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 130°C/W TJMAX = 150°C, θJA = 130°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2301CDE#PBF LTC2301CDE#TRPBF 2301 12-Lead (3mm × 4mm) Plastic DFN 0°C to 70°C LTC2301IDE#PBF LTC2301IDE#TRPBF 2301 12-Lead (3mm × 4mm) Plastic DFN –40°C to 85°C LTC2305CDE#PBF LTC2305CDE#TRPBF 2305 12-Lead (3mm × 4mm) Plastic DFN 0°C to 70°C LTC2305IDE#PBF LTC2305IDE#TRPBF 2305 12-Lead (3mm × 4mm) Plastic DFN –40°C to 85°C LTC2301CMS#PBF LTC2301CMS#TRPBF 2301 12-Lead Plastic MSOP 0°C to 70°C LTC2301IMS#PBF LTC2301IMS#TRPBF 2301 12-Lead Plastic MSOP –40°C to 85°C LTC2301HMS#PBF LTC2301HMS#TRPBF 2301 12-Lead Plastic MSOP –40°C to 125°C LTC2305CMS#PBF LTC2305CMS#TRPBF 2305 12-Lead Plastic MSOP 0°C to 70°C 23015fb 2
