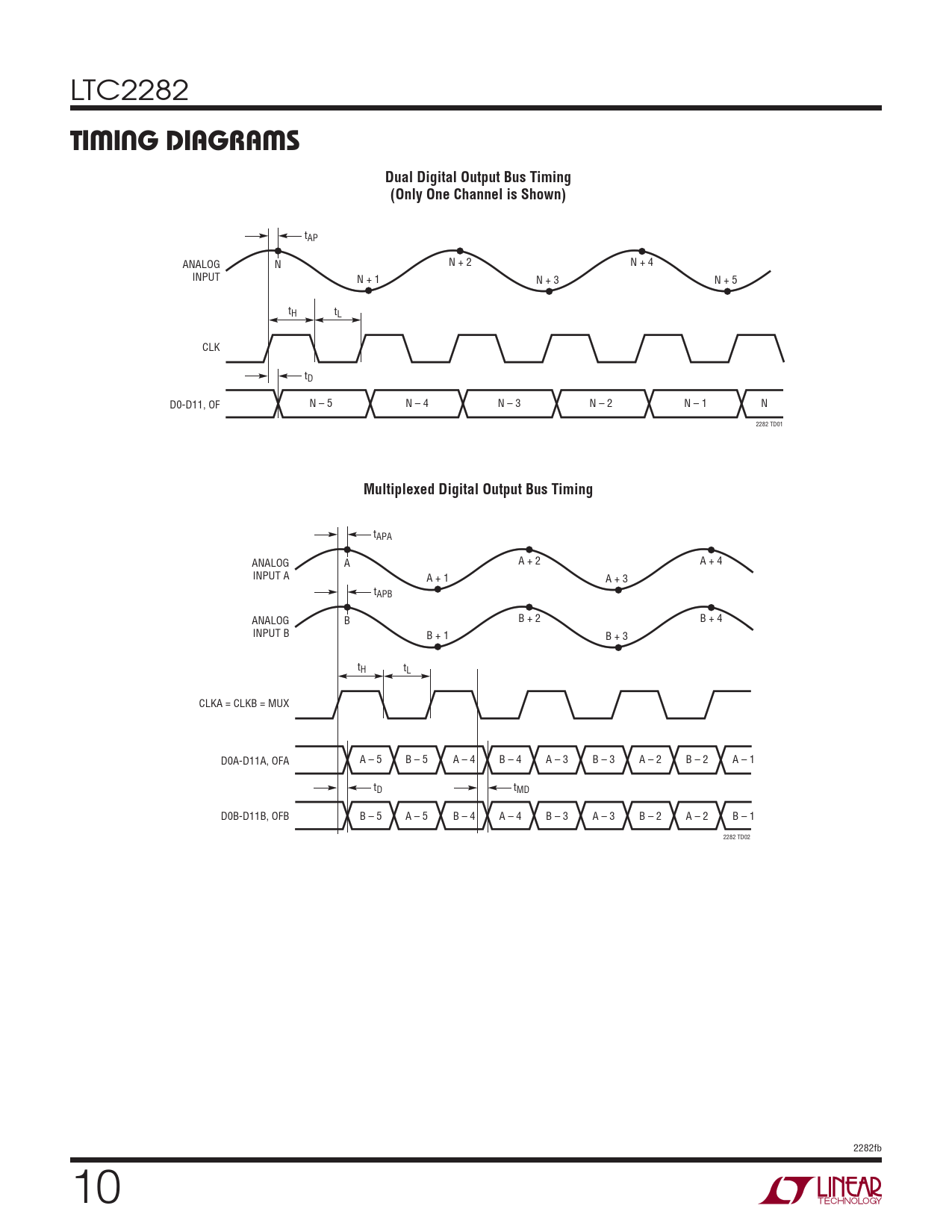

TIMING DIAGRAMS. Dual Digital Output Bus Timing. (Only One Channel is Shown). Multiplexed Digital Output Bus Timing
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2282
TIMING DIAGRAMS Dual Digital Output Bus Timing (Only One Channel is Shown)
tAP N + 2 N + 4 ANALOG N INPUT N + 1 N + 3 N + 5 tH tL CLK tD D0-D11, OF N – 5 N – 4 N – 3 N – 2 N – 1 N 2282 TD01
Multiplexed Digital Output Bus Timing
tAPA A + 2 A + 4 ANALOG A INPUT A A + 1 A + 3 tAPB B + 2 B + 4 ANALOG B INPUT B B + 1 B + 3 tH tL CLKA = CLKB = MUX D0A-D11A, OFA A – 5 B – 5 A – 4 B – 4 A – 3 B – 3 A – 2 B – 2 A – 1 tD tMD D0B-D11B, OFB B – 5 A – 5 B – 4 A – 4 B – 3 A – 3 B – 2 A – 2 B – 1 2282 TD02 2282fb 10
