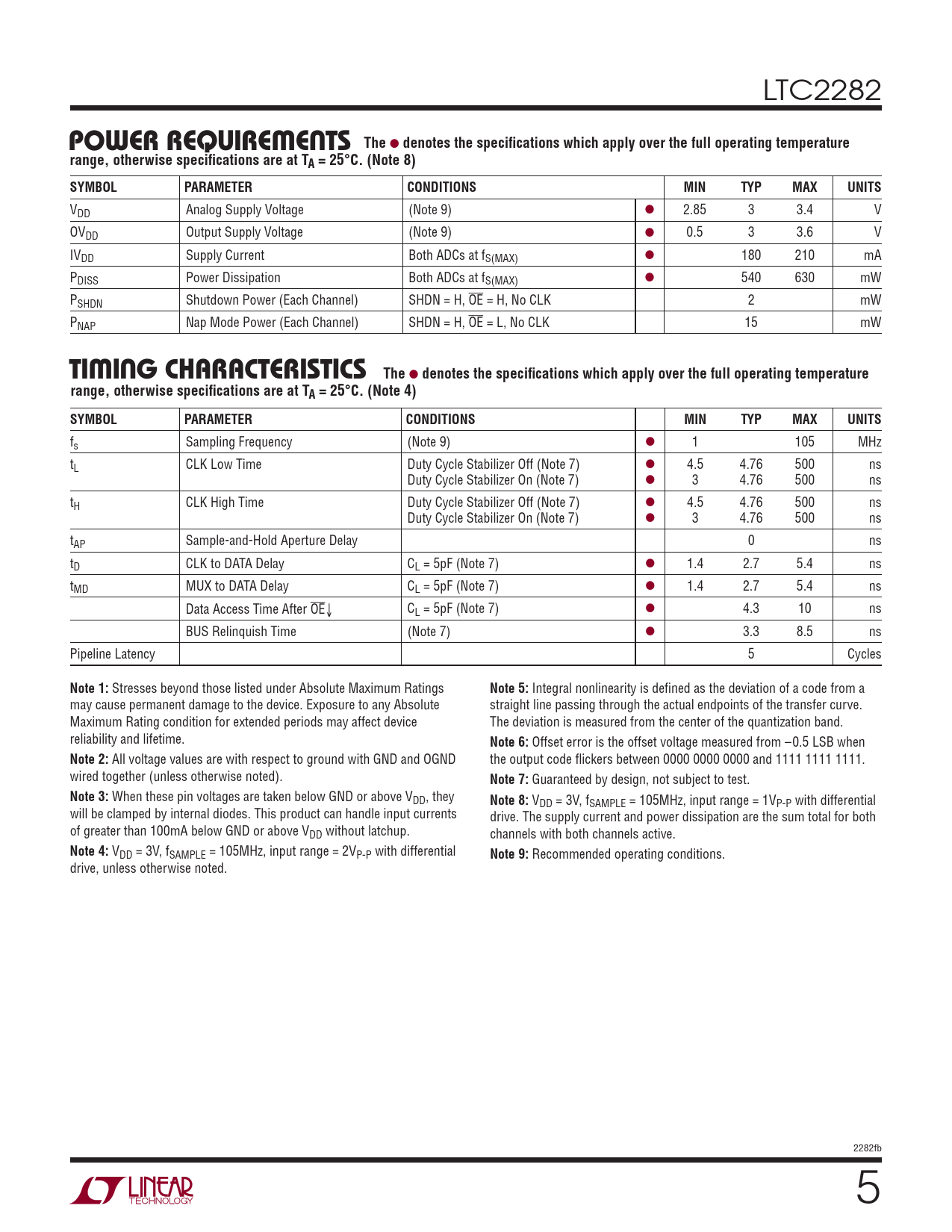

POWER REQUIREMENTS The. denotes the specifi cations which apply over the full operating temperature
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2282
POWER REQUIREMENTS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Analog Supply Voltage (Note 9) l 2.85 3 3.4 V OVDD Output Supply Voltage (Note 9) l 0.5 3 3.6 V IVDD Supply Current Both ADCs at fS(MAX) l 180 210 mA PDISS Power Dissipation Both ADCs at fS(MAX) l 540 630 mW PSHDN Shutdown Power (Each Channel) SHDN = H, OE = H, No CLK 2 mW PNAP Nap Mode Power (Each Channel) SHDN = H, OE = L, No CLK 15 mW
TIMING CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fs Sampling Frequency (Note 9) l 1 105 MHz tL CLK Low Time Duty Cycle Stabilizer Off (Note 7) l 4.5 4.76 500 ns Duty Cycle Stabilizer On (Note 7) l 3 4.76 500 ns tH CLK High Time Duty Cycle Stabilizer Off (Note 7) l 4.5 4.76 500 ns Duty Cycle Stabilizer On (Note 7) l 3 4.76 500 ns tAP Sample-and-Hold Aperture Delay 0 ns tD CLK to DATA Delay CL = 5pF (Note 7) l 1.4 2.7 5.4 ns tMD MUX to DATA Delay CL = 5pF (Note 7) l 1.4 2.7 5.4 ns Data Access Time After OE↓ CL = 5pF (Note 7) l 4.3 10 ns BUS Relinquish Time (Note 7) l 3.3 8.5 ns Pipeline Latency 5 Cycles
