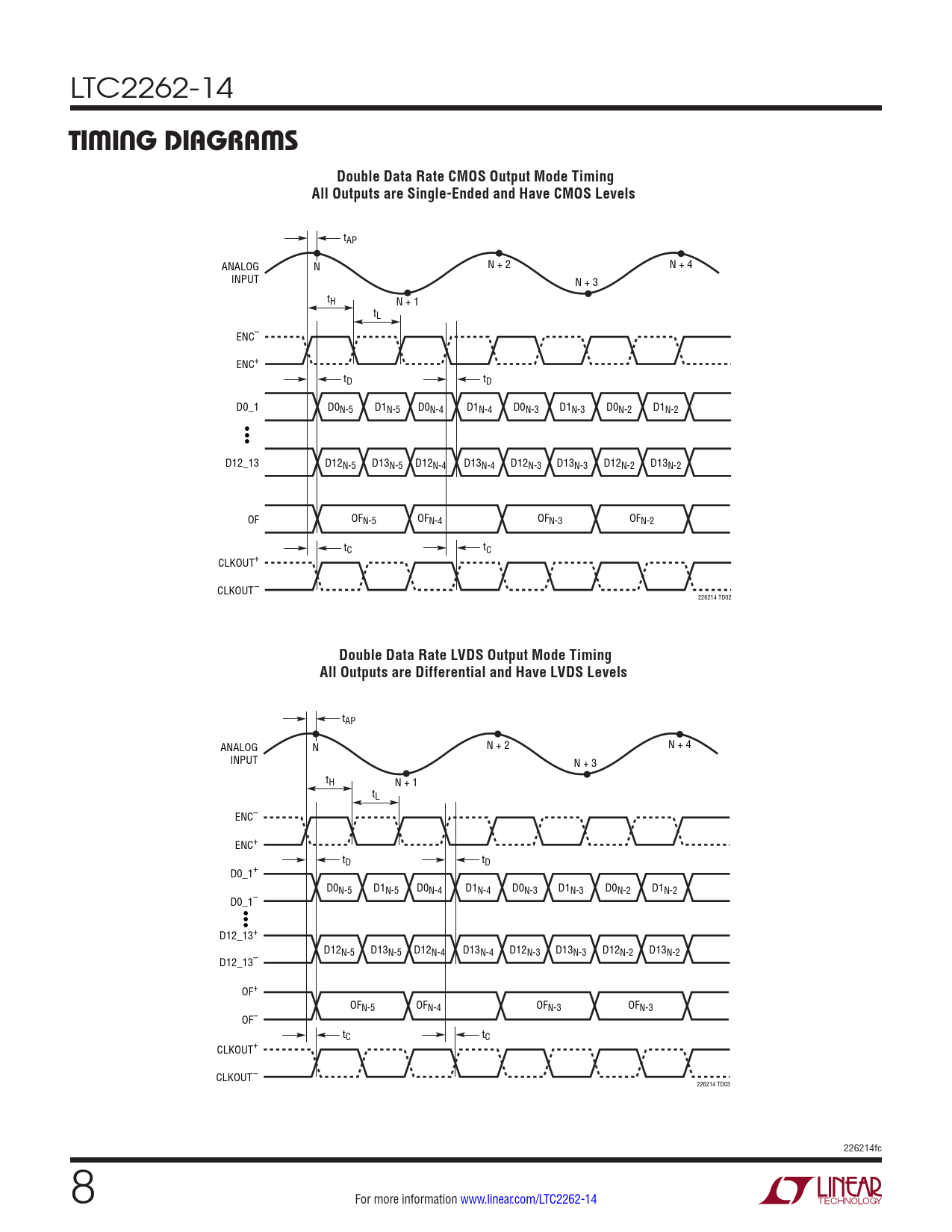

TIMING DIAGRAMS. Double Data Rate CMOS Output Mode Timing. All Outputs are Single-Ended and Have CMOS Levels
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2262-14
TIMING DIAGRAMS Double Data Rate CMOS Output Mode Timing All Outputs are Single-Ended and Have CMOS Levels
tAP ANALOG N N + 2 N + 4 INPUT N + 3 tH N + 1 tL ENC– ENC+ tD tD D0_1 D0N-5 D1N-5 D0N-4 D1N-4 D0N-3 D1N-3 D0N-2 D1N-2 ••• D12_13 D12N-5 D13N-5 D12N-4 D13N-4 D12N-3 D13N-3 D12N-2 D13N-2 OF OFN-5 OFN-4 OFN-3 OFN-2 tC tC CLKOUT+ CLKOUT– 226214 TD02
Double Data Rate LVDS Output Mode Timing All Outputs are Differential and Have LVDS Levels
tAP ANALOG N N + 2 N + 4 INPUT N + 3 tH N + 1 tL ENC– ENC+ tD tD D0_1+ D0N-5 D1N-5 D0N-4 D1N-4 D0N-3 D1N-3 D0N-2 D1N-2 D0_1– ••• D12_13+ D12N-5 D13N-5 D12N-4 D13N-4 D12N-3 D13N-3 D12N-2 D13N-2 D12_13– OF+ OFN-5 OFN-4 OFN-3 OFN-3 OF– tC tC CLKOUT+ CLKOUT– 226214 TD03 226214fc 8 For more information www.linear.com/LTC2262-14 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configurations Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
