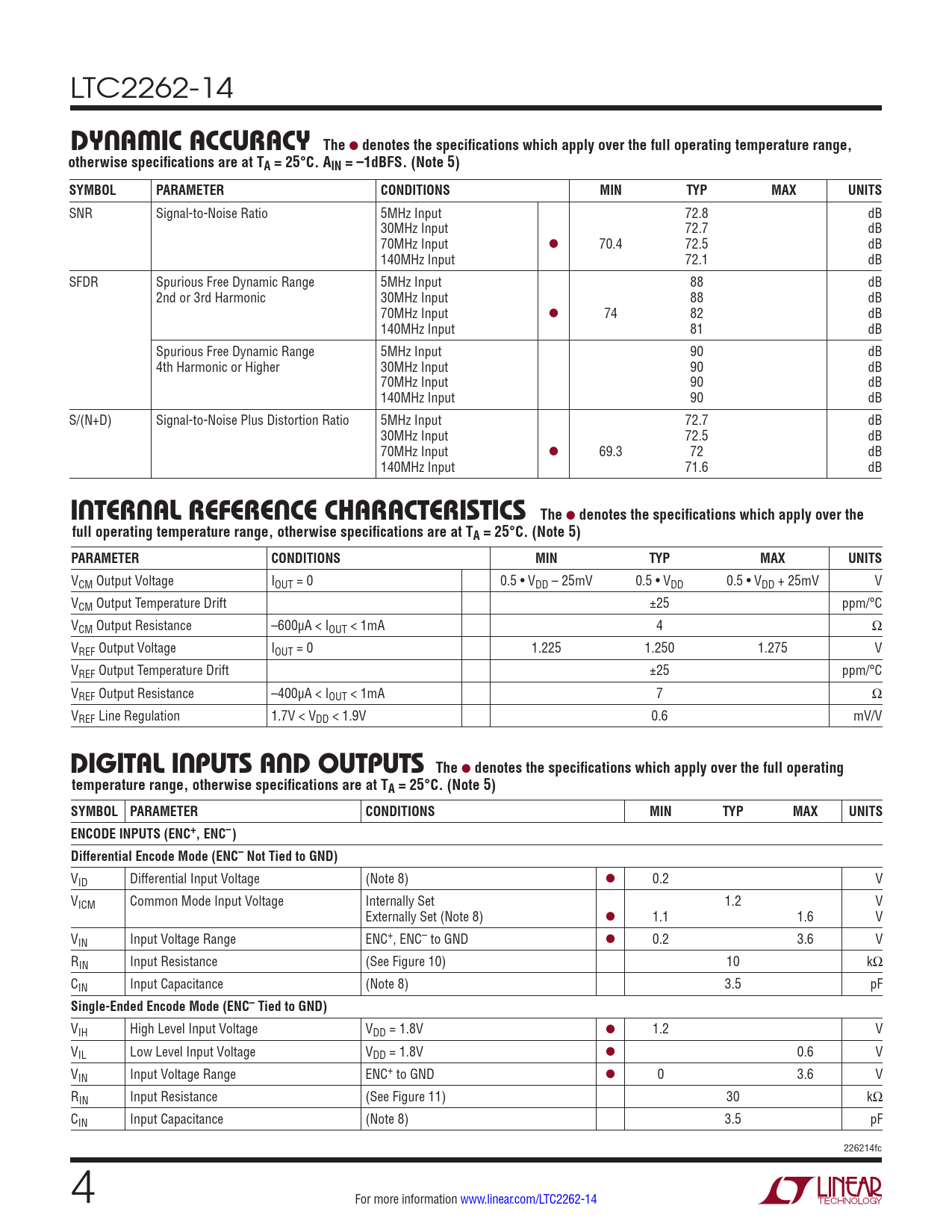

DYNAMIC ACCURACY. The. denotes the specifications which apply over the full operating temperature range,
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2262-14
DYNAMIC ACCURACY The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. AIN = –1dBFS. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SNR Signal-to-Noise Ratio 5MHz Input 72.8 dB 30MHz Input 72.7 dB 70MHz Input l 70.4 72.5 dB 140MHz Input 72.1 dB SFDR Spurious Free Dynamic Range 5MHz Input 88 dB 2nd or 3rd Harmonic 30MHz Input 88 dB 70MHz Input l 74 82 dB 140MHz Input 81 dB Spurious Free Dynamic Range 5MHz Input 90 dB 4th Harmonic or Higher 30MHz Input 90 dB 70MHz Input 90 dB 140MHz Input 90 dB S/(N+D) Signal-to-Noise Plus Distortion Ratio 5MHz Input 72.7 dB 30MHz Input 72.5 dB 70MHz Input l 69.3 72 dB 140MHz Input 71.6 dB
INTERNAL REFERENCE CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) PARAMETER CONDITIONS MIN TYP MAX UNITS
VCM Output Voltage IOUT = 0 0.5 • VDD – 25mV 0.5 • VDD 0.5 • VDD + 25mV V VCM Output Temperature Drift ±25 ppm/°C VCM Output Resistance –600µA < IOUT < 1mA 4 Ω VREF Output Voltage IOUT = 0 1.225 1.250 1.275 V VREF Output Temperature Drift ±25 ppm/°C VREF Output Resistance –400µA < IOUT < 1mA 7 Ω VREF Line Regulation 1.7V < VDD < 1.9V 0.6 mV/V
DIGITAL INPUTS AND OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS ENCODE INPUTS (ENC+, ENC– ) Differential Encode Mode (ENC– Not Tied to GND)
VID Differential Input Voltage (Note 8) l 0.2 V VICM Common Mode Input Voltage Internally Set 1.2 V Externally Set (Note 8) l 1.1 1.6 V VIN Input Voltage Range ENC+, ENC– to GND l 0.2 3.6 V RIN Input Resistance (See Figure 10) 10 kΩ CIN Input Capacitance (Note 8) 3.5 pF
Single-Ended Encode Mode (ENC– Tied to GND)
VIH High Level Input Voltage VDD = 1.8V l 1.2 V VIL Low Level Input Voltage VDD = 1.8V l 0.6 V VIN Input Voltage Range ENC+ to GND l 0 3.6 V RIN Input Resistance (See Figure 11) 30 kΩ CIN Input Capacitance (Note 8) 3.5 pF 226214fc 4 For more information www.linear.com/LTC2262-14 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configurations Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
