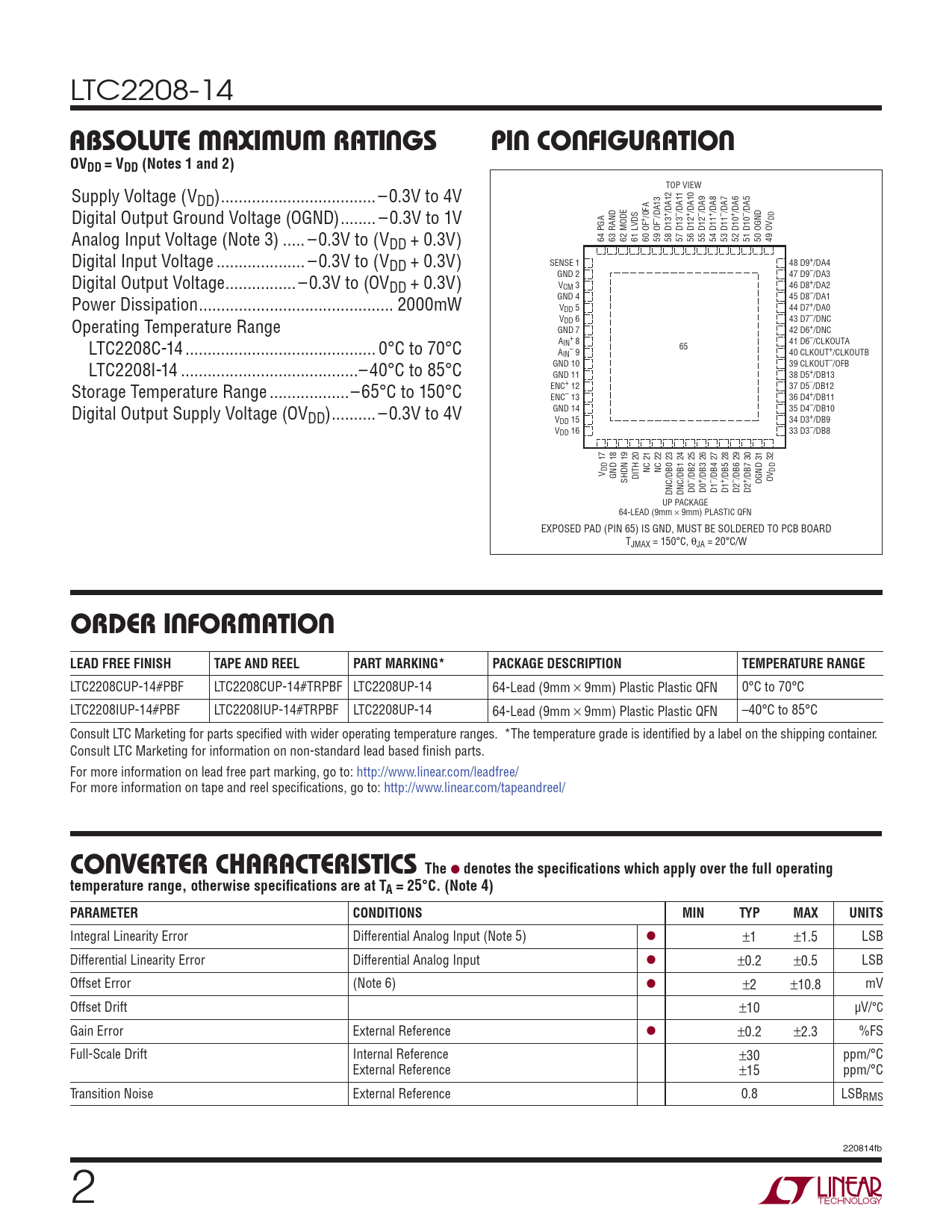

LTC2208-14
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION OVDD = VDD (Notes 1 and 2)
TOP VIEW Supply Voltage (VDD) ... –0.3V to 4V Digital Output Ground Voltage (OGND) .. –0.3V to 1V /DA12 /DA11 /DA10 /DA9 /DA8 /DA7 /DA6 /DA5 /0FA /DA13 + – + – + – + – + – DD Analog Input Voltage (Note 3) ... –0.3V to (VDD + 0.3V) 64 PGA 63 RAND 62 MODE 61 LVDS 60 OF 59 OF 58 D13 57 D13 56 D12 55 D12 54 D11 53 D11 52 D10 51 D10 50 OGND 49 OV Digital Input Voltage .. –0.3V to (VDD + 0.3V) SENSE 1 48 D9+/DA4 GND 2 47 D9–/DA3 Digital Output Voltage .. –0.3V to (OVDD + 0.3V) VCM 3 46 D8+/DA2 GND 4 45 D8–/DA1 Power Dissipation .. 2000mW VDD 5 44 D7+/DA0 Operating Temperature Range VDD 6 43 D7–/DNC GND 7 42 D6+/DNC + LTC2208C-14 ... 0°C to 70°C AIN 8 41 D6–/CLKOUTA 65 A – IN 9 40 CLKOUT+/CLKOUTB LTC2208I-14 ..–40°C to 85°C GND 10 39 CLKOUT–/OFB GND 11 38 D5+/DB13 _ Storage Temperature Range ..–65°C to 150°C ENC+ 12 37 D5 /DB12 ENC– 13 36 D4+/DB11 Digital Output Supply Voltage (OV GND 14 35 D4–/DB10 DD) .. – 0.3V to 4V VDD 15 34 D3+/DB9 VDD 16 33 D3–/DB8 17 19 20 32 DD DD V NC 21 NC 22 GND 18 SHDN DITH /DB2 25 /DB3 26 /DB4 27 /DB5 28 /DB6 29 /DB7 30 – + – + – + OGND 31 OV DNC/DB0 23 DNC/DB1 24 D0 D0 D1 D1 D2 D2 UP PACKAGE 64-LEAD (9mm s 9mm) PLASTIC QFN EXPOSED PAD (PIN 65) IS GND, MUST BE SOLDERED TO PCB BOARD TJMAX = 150°C, θJA = 20°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2208CUP-14#PBF LTC2208CUP-14#TRPBF LTC2208UP-14 64-Lead (9mm × 9mm) Plastic Plastic QFN 0°C to 70°C LTC2208IUP-14#PBF LTC2208IUP-14#TRPBF LTC2208UP-14 64-Lead (9mm × 9mm) Plastic Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
CONVERTER CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Integral Linearity Error Differential Analog Input (Note 5) l ±1 ±1.5 LSB Differential Linearity Error Differential Analog Input l ±0.2 ±0.5 LSB Offset Error (Note 6) l ±2 ±10.8 mV Offset Drift ±10 μV/°C Gain Error External Reference l ±0.2 ±2.3 %FS Full-Scale Drift Internal Reference ±30 ppm/°C External Reference ±15 ppm/°C Transition Noise External Reference 0.8 LSBRMS 220814fb 2
