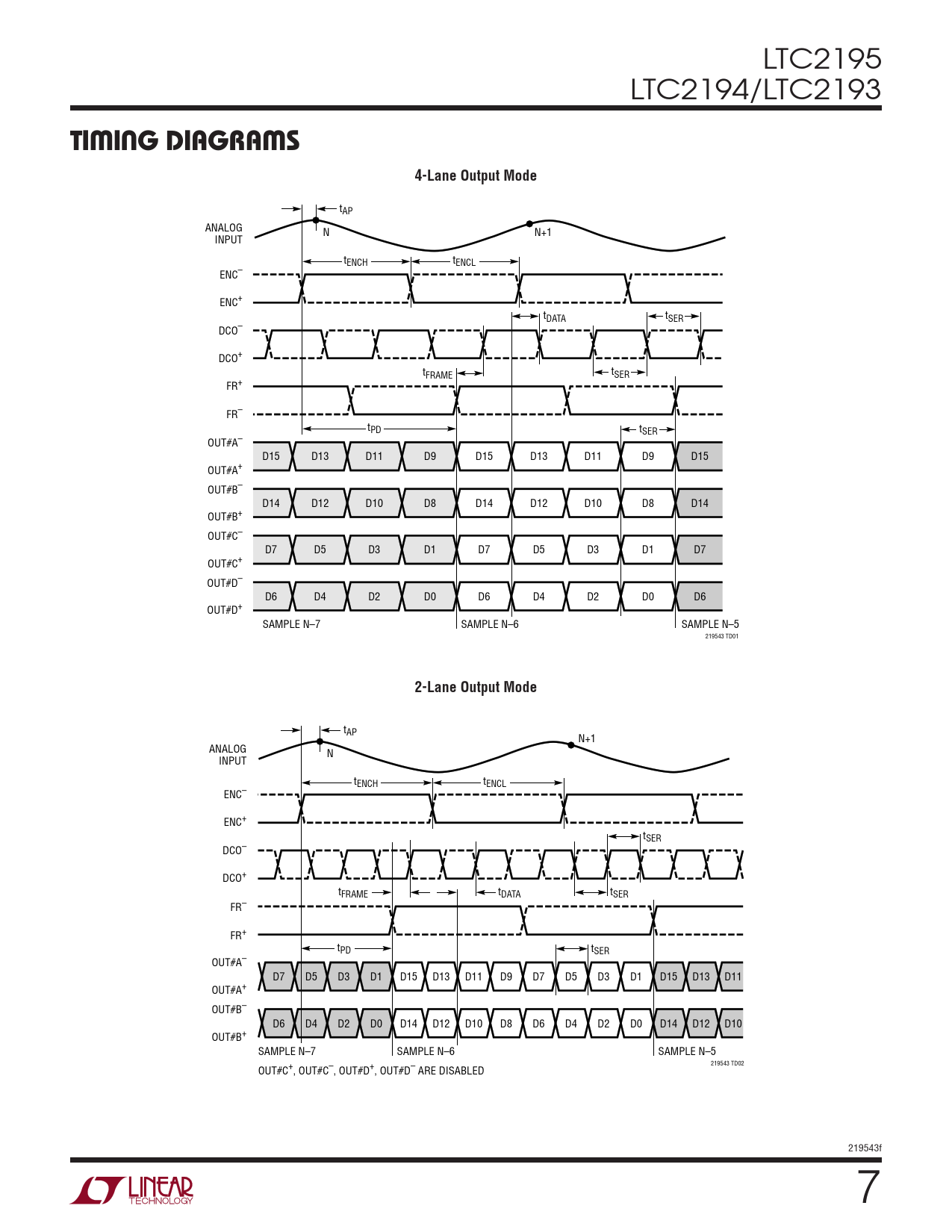

TIMING DIAGRAMS 4-Lane Output Mode
tAP ANALOG N N+1 INPUT tENCH tENCL ENC– ENC+ tDATA tSER DCO– DCO+ tFRAME tSER FR+ FR– tPD tSER OUT#A– D15 D13 D11 D9 D15 D13 D11 D9 D15 OUT#A+ OUT#B– D14 D12 D10 D8 D14 D12 D10 D8 D14 OUT#B+ OUT#C– D7 D5 D3 D1 D7 D5 D3 D1 D7 OUT#C+ OUT#D– D6 D4 D2 D0 D6 D4 D2 D0 D6 OUT#D+ SAMPLE N–7 SAMPLE N–6 SAMPLE N–5 219543 TD01
2-Lane Output Mode
tAP N+1 ANALOG N INPUT tENCH tENCL ENC– ENC+ tSER DCO– DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D7 D5 D3 D1 D15 D13 D11 D9 D7 D5 D3 D1 D15 D13 D11 OUT#A+ OUT#B– D6 D4 D2 D0 D14 D12 D10 D8 D6 D4 D2 D0 D14 D12 D10 OUT#B+ SAMPLE N–7 SAMPLE N–6 SAMPLE N–5 219543 TD02 OUT#C+, OUT#C–, OUT#D+, OUT#D– ARE DISABLED 219543f 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
