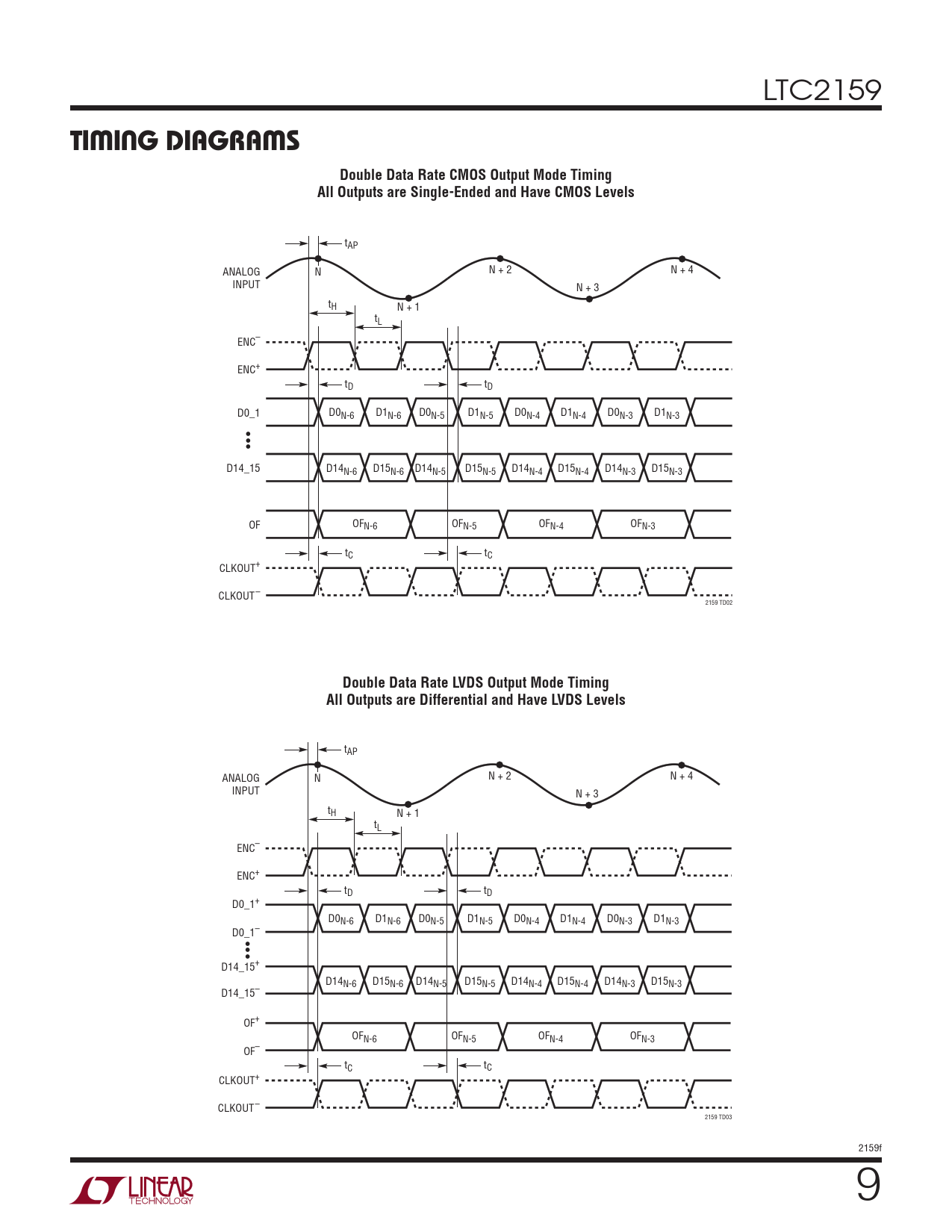

TiMing DiagraMs. Double Data Rate CMOS Output Mode Timing. All Outputs are Single-Ended and Have CMOS Levels
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2159
TiMing DiagraMs Double Data Rate CMOS Output Mode Timing All Outputs are Single-Ended and Have CMOS Levels
tAP ANALOG N N + 2 N + 4 INPUT N + 3 tH N + 1 tL ENC– ENC+ tD tD D0_1 D0N-6 D1N-6 D0N-5 D1N-5 D0N-4 D1N-4 D0N-3 D1N-3 ••• D14_15 D14N-6 D15N-6 D14N-5 D15N-5 D14N-4 D15N-4 D14N-3 D15N-3 OF OFN-6 OFN-5 OFN-4 OFN-3 tC tC CLKOUT+ CLKOUT– 2159 TD02
Double Data Rate LVDS Output Mode Timing All Outputs are Differential and Have LVDS Levels
tAP ANALOG N N + 2 N + 4 INPUT N + 3 tH N + 1 tL ENC– ENC+ tD tD D0_1+ D0N-6 D1N-6 D0N-5 D1N-5 D0N-4 D1N-4 D0N-3 D1N-3 D0_1– ••• D14_15+ D14N-6 D15N-6 D14N-5 D15N-5 D14N-4 D15N-4 D14N-3 D15N-3 D14_15– OF+ OFN-6 OFN-5 OFN-4 OFN-3 OF– tC tC CLKOUT+ CLKOUT– 2159 TD03 2159f 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
