Datasheet LTC2122 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | Dual14-Bit 170Msps ADC with JESD204B Serial Outputs |
| Seiten / Seite | 50 / 9 — TYPICAL PERFORMANCE CHARACTERISTICS. CMLOUT Bathtub Curve, 3.4Gbps. … |
| Dateiformat / Größe | PDF / 1.5 Mb |
| Dokumentensprache | Englisch |
TYPICAL PERFORMANCE CHARACTERISTICS. CMLOUT Bathtub Curve, 3.4Gbps. CMLOUT Eye Diagram, 3.4Gbps. CMLOUT Eye Diagram,
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2122

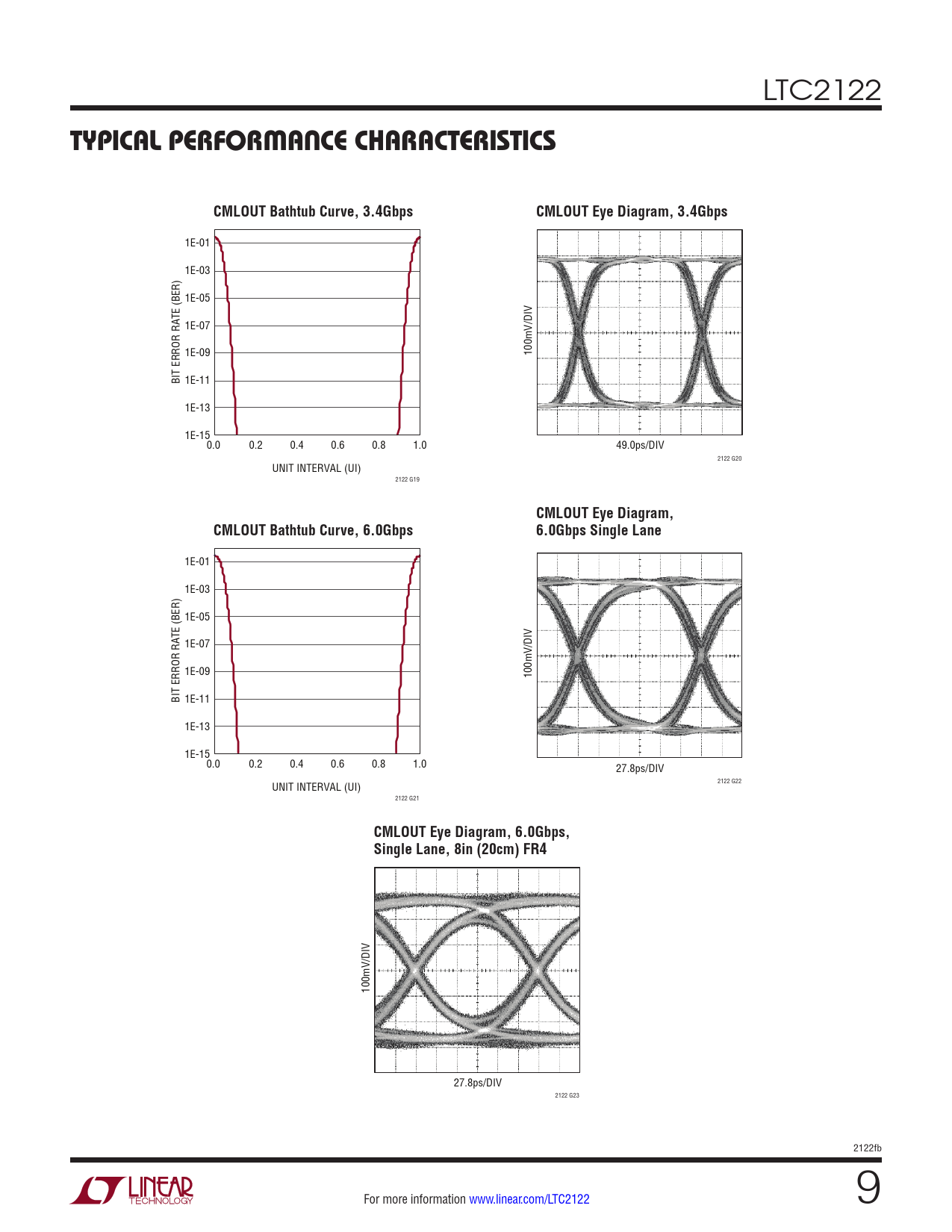

TYPICAL PERFORMANCE CHARACTERISTICS CMLOUT Bathtub Curve, 3.4Gbps CMLOUT Eye Diagram, 3.4Gbps
1E-01 1E-03 1E-05 1E-07 1E-09 100mV/DIV BIT ERROR RATE (BER) 1E-11 1E-13 1E-150.0 0.2 0.4 0.6 0.8 1.0 49.0ps/DIV 2122 G20 UNIT INTERVAL (UI) 2122 G19
CMLOUT Eye Diagram, CMLOUT Bathtub Curve, 6.0Gbps 6.0Gbps Single Lane
1E-01 1E-03 1E-05 1E-07 1E-09 100mV/DIV BIT ERROR RATE (BER) 1E-11 1E-13 1E-150.0 0.2 0.4 0.6 0.8 1.0 27.8ps/DIV UNIT INTERVAL (UI) 2122 G22 2122 G21
CMLOUT Eye Diagram, 6.0Gbps, Single Lane, 8in (20cm) FR4
100mV/DIV 27.8ps/DIV 2122 G23 2122fb For more information www.linear.com/LTC2122 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs And Outputs Digital Inputs And Outputs Timing characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagram SPI Timing Definitions ADC PERFORMANCE TERMS SERIAL INTERFACE TERMS Applications Information CONVERTER OPERATION INPUT DRIVE CIRCUITS GROUNDING AND BYPASSING HEAT TRANSFER Typical Applications Package Description Revision History Typical Application Related Parts
