DIGITAL AND DC ELECTRICAL CHARACTERISTICS. The. denotes specifi cations which apply
Modelllinie für dieses Datenblatt
- LTC1864ACMS8#PBF LTC1864ACMS8#PBF LTC1864ACMS8#TRPBF LTC1864ACMS8#TRPBF LTC1864ACS8#PBF LTC1864ACS8#PBF LTC1864ACS8#TRPBF LTC1864ACS8#TRPBF LTC1864AHMS8#PBF LTC1864AHMS8#PBF LTC1864AHMS8#TRPBF LTC1864AHMS8#TRPBF LTC1864AIMS8#PBF LTC1864AIMS8#PBF LTC1864AIMS8#TRPBF LTC1864AIMS8#TRPBF LTC1864AIS8#PBF LTC1864AIS8#PBF LTC1864AIS8#TRPBF LTC1864AIS8#TRPBF LTC1864CMS8#PBF LTC1864CMS8#PBF LTC1864CMS8#TRPBF LTC1864CMS8#TRPBF LTC1864CS8#PBF LTC1864CS8#PBF LTC1864CS8#TRPBF LTC1864CS8#TRPBF LTC1864HMS8#PBF LTC1864HMS8#PBF LTC1864HMS8#TRPBF LTC1864HMS8#TRPBF LTC1864IMS8#PBF LTC1864IMS8#PBF LTC1864IMS8#TRPBF LTC1864IMS8#TRPBF LTC1864IS8#PBF LTC1864IS8#PBF LTC1864IS8#TRPBF LTC1864IS8#TRPBF
- LTC1865ACMS#PBF LTC1865ACMS#PBF LTC1865ACMS#TRPBF LTC1865ACMS#TRPBF LTC1865ACS8#PBF LTC1865ACS8#PBF LTC1865ACS8#TRPBF LTC1865ACS8#TRPBF LTC1865AHMS#PBF LTC1865AHMS#PBF LTC1865AHMS#TRPBF LTC1865AHMS#TRPBF LTC1865AIMS#PBF LTC1865AIMS#PBF LTC1865AIMS#TRPBF LTC1865AIMS#TRPBF LTC1865AIS8#PBF LTC1865AIS8#PBF LTC1865AIS8#TRPBF LTC1865AIS8#TRPBF LTC1865CMS#PBF LTC1865CMS#PBF LTC1865CMS#TRPBF LTC1865CMS#TRPBF LTC1865CS8#PBF LTC1865CS8#PBF LTC1865CS8#TRPBF LTC1865CS8#TRPBF LTC1865HMS#PBF LTC1865HMS#PBF LTC1865HMS#TRPBF LTC1865HMS#TRPBF LTC1865IMS#PBF LTC1865IMS#PBF LTC1865IMS#TRPBF LTC1865IMS#TRPBF LTC1865IS8#PBF LTC1865IS8#PBF LTC1865IS8#TRPBF LTC1865IS8#TRPBF
Textversion des Dokuments
LTC1864/LTC1865

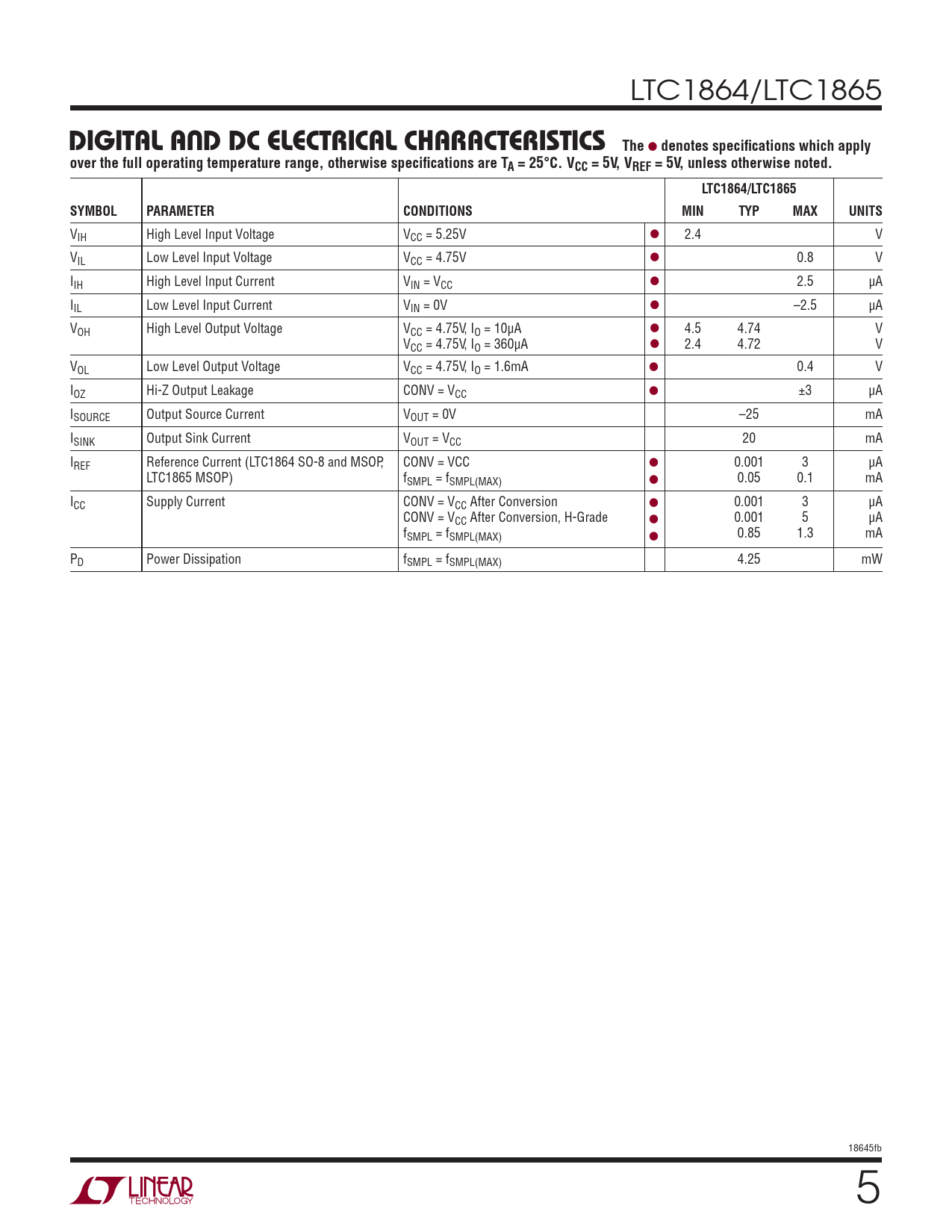

DIGITAL AND DC ELECTRICAL CHARACTERISTICS The
●
denotes specifi cations which apply over the full operating temperature range, otherwise specifi cations are TA = 25°C. VCC = 5V, VREF = 5V, unless otherwise noted. LTC1864/LTC1865 SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage VCC = 5.25V l 2.4 V VIL Low Level Input Voltage VCC = 4.75V l 0.8 V IIH High Level Input Current VIN = VCC l 2.5 μA IIL Low Level Input Current VIN = 0V l –2.5 μA VOH High Level Output Voltage VCC = 4.75V, IO = 10μA l 4.5 4.74 V VCC = 4.75V, IO = 360μA l 2.4 4.72 V VOL Low Level Output Voltage VCC = 4.75V, IO = 1.6mA ● 0.4 V IOZ Hi-Z Output Leakage CONV = VCC ● ±3 μA ISOURCE Output Source Current VOUT = 0V –25 mA ISINK Output Sink Current VOUT = VCC 20 mA IREF Reference Current (LTC1864 SO-8 and MSOP, CONV = VCC ● 0.001 3 μA LTC1865 MSOP) fSMPL = fSMPL(MAX) ● 0.05 0.1 mA ICC Supply Current CONV = VCC After Conversion ● 0.001 3 μA CONV = VCC After Conversion, H-Grade ● 0.001 5 μA fSMPL = fSMPL(MAX) ● 0.85 1.3 mA PD Power Dissipation fSMPL = fSMPL(MAX) 4.25 mW 18645fb 5
DIGITAL AND DC ELECTRICAL CHARACTERISTICS The
●
denotes specifi cations which apply over the full operating temperature range, otherwise specifi cations are TA = 25°C. VCC = 5V, VREF = 5V, unless otherwise noted. LTC1864/LTC1865 SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage VCC = 5.25V l 2.4 V VIL Low Level Input Voltage VCC = 4.75V l 0.8 V IIH High Level Input Current VIN = VCC l 2.5 μA IIL Low Level Input Current VIN = 0V l –2.5 μA VOH High Level Output Voltage VCC = 4.75V, IO = 10μA l 4.5 4.74 V VCC = 4.75V, IO = 360μA l 2.4 4.72 V VOL Low Level Output Voltage VCC = 4.75V, IO = 1.6mA ● 0.4 V IOZ Hi-Z Output Leakage CONV = VCC ● ±3 μA ISOURCE Output Source Current VOUT = 0V –25 mA ISINK Output Sink Current VOUT = VCC 20 mA IREF Reference Current (LTC1864 SO-8 and MSOP, CONV = VCC ● 0.001 3 μA LTC1865 MSOP) fSMPL = fSMPL(MAX) ● 0.05 0.1 mA ICC Supply Current CONV = VCC After Conversion ● 0.001 3 μA CONV = VCC After Conversion, H-Grade ● 0.001 5 μA fSMPL = fSMPL(MAX) ● 0.85 1.3 mA PD Power Dissipation fSMPL = fSMPL(MAX) 4.25 mW 18645fb 5
