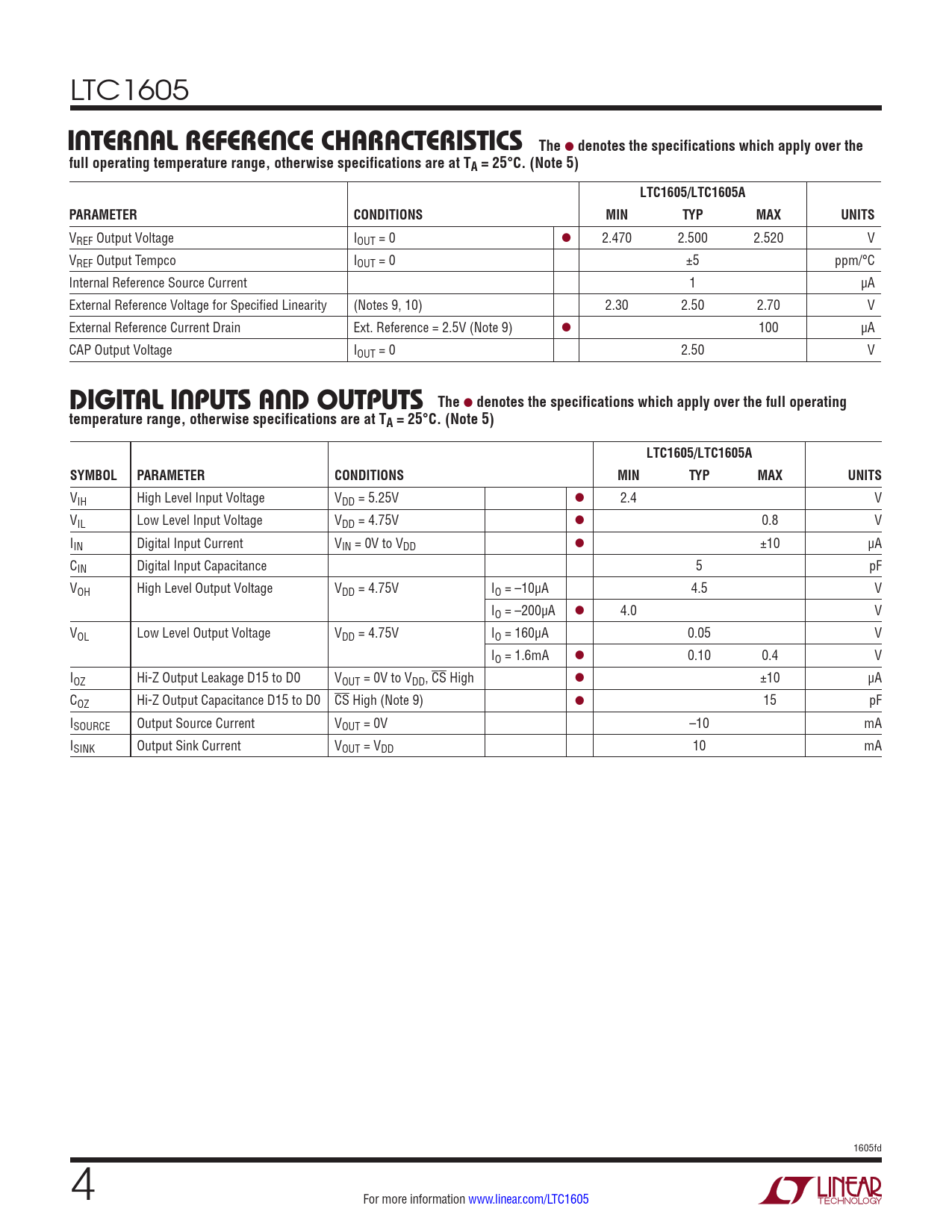

INTERNAL REFERENCE CHARACTERISTICS. The. denotes the specifications which apply over the
Modelllinie für dieses Datenblatt
- LTC1605ACG#PBF LTC1605ACG#PBF LTC1605ACG#TRPBF LTC1605ACG#TRPBF LTC1605ACSW#PBF LTC1605ACSW#PBF LTC1605ACSW#TRPBF LTC1605ACSW#TRPBF LTC1605AIG#PBF LTC1605AIG#PBF LTC1605AIG#TRPBF LTC1605AIG#TRPBF LTC1605AISW#PBF LTC1605AISW#PBF LTC1605AISW#TRPBF LTC1605AISW#TRPBF LTC1605CG#PBF LTC1605CG#PBF LTC1605CG#TRPBF LTC1605CG#TRPBF LTC1605CSW#PBF LTC1605CSW#PBF LTC1605CSW#TRPBF LTC1605CSW#TRPBF LTC1605IG#PBF LTC1605IG#PBF LTC1605IG#TRPBF LTC1605IG#TRPBF LTC1605ISW#PBF LTC1605ISW#PBF LTC1605ISW#TRPBF LTC1605ISW#TRPBF
Textversion des Dokuments
LTC1605
INTERNAL REFERENCE CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) LTC1605/LTC1605A PARAMETER CONDITIONS MIN TYP MAX UNITS
VREF Output Voltage IOUT = 0 l 2.470 2.500 2.520 V VREF Output Tempco IOUT = 0 ±5 ppm/°C Internal Reference Source Current 1 µA External Reference Voltage for Specified Linearity (Notes 9, 10) 2.30 2.50 2.70 V External Reference Current Drain Ext. Reference = 2.5V (Note 9) l 100 µA CAP Output Voltage IOUT = 0 2.50 V
