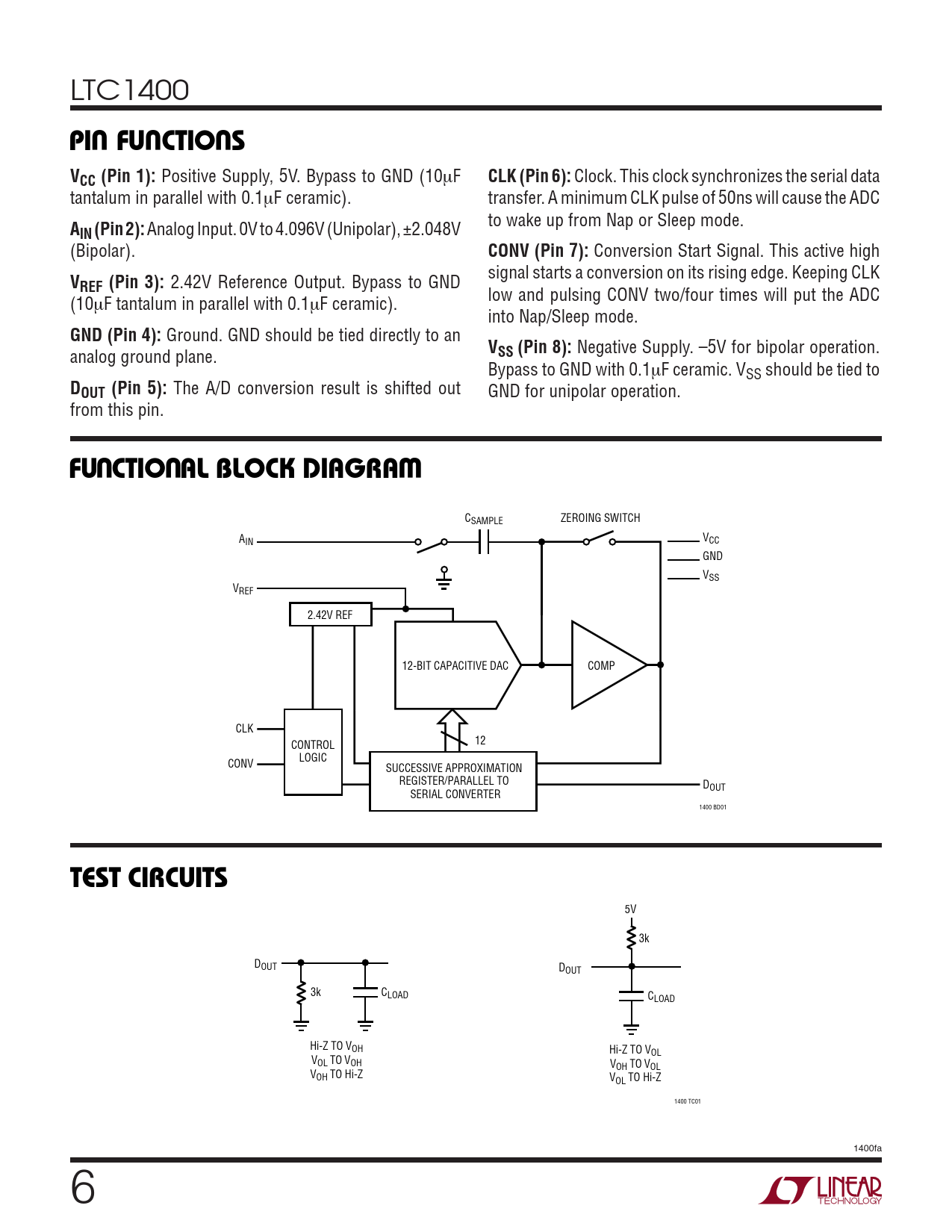

LTC1400
U U U PI FU CTIO S VCC (Pin 1):
Positive Supply, 5V. Bypass to GND (10μF
CLK (Pin 6):
Clock. This clock synchronizes the serial data tantalum in parallel with 0.1μF ceramic). transfer. A minimum CLK pulse of 50ns will cause the ADC
A
to wake up from Nap or Sleep mode.
IN (Pin 2):
Analog Input. 0V to 4.096V (Unipolar), ±2.048V (Bipolar).
CONV (Pin 7):
Conversion Start Signal. This active high
V
signal starts a conversion on its rising edge. Keeping CLK
REF (Pin 3):
2.42V Reference Output. Bypass to GND (10 low and pulsing CONV two/four times will put the ADC μF tantalum in parallel with 0.1μF ceramic). into Nap/Sleep mode.
GND (Pin 4):
Ground. GND should be tied directly to an analog ground plane.
VSS (Pin 8):
Negative Supply. –5V for bipolar operation. Bypass to GND with 0.1μF ceramic. VSS should be tied to
DOUT (Pin 5):
The A/D conversion result is shifted out GND for unipolar operation. from this pin.
U U W FU CTIO AL BLOCK DIAGRA
CSAMPLE ZEROING SWITCH A V IN CC GND VSS VREF 2.42V REF 12-BIT CAPACITIVE DAC COMP CLK CONTROL 12 LOGIC CONV SUCCESSIVE APPROXIMATION REGISTER/PARALLEL TO DOUT SERIAL CONVERTER 1400 BD01
TEST CIRCUITS
5V 3k DOUT DOUT 3k CLOAD CLOAD Hi-Z TO VOH Hi-Z TO VOL VOL TO VOH VOH TO VOL VOH TO Hi-Z VOL TO Hi-Z 1400 TC01 1400fa 6
