Datasheet OP200 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | Dual Low Offset, Low Power Operational Amplifier |
| Seiten / Seite | 17 / 4 — Data Sheet. OP200. BIAS. OUT. VOLTAGE. LIMITING. NETWORK. +IN. –IN |
| Revision | G |
| Dateiformat / Größe | PDF / 414 Kb |
| Dokumentensprache | Englisch |
Data Sheet. OP200. BIAS. OUT. VOLTAGE. LIMITING. NETWORK. +IN. –IN
Textversion des Dokuments
Data Sheet OP200 V+ BIAS OUT VOLTAGE LIMITING NETWORK +IN –IN
003
V–

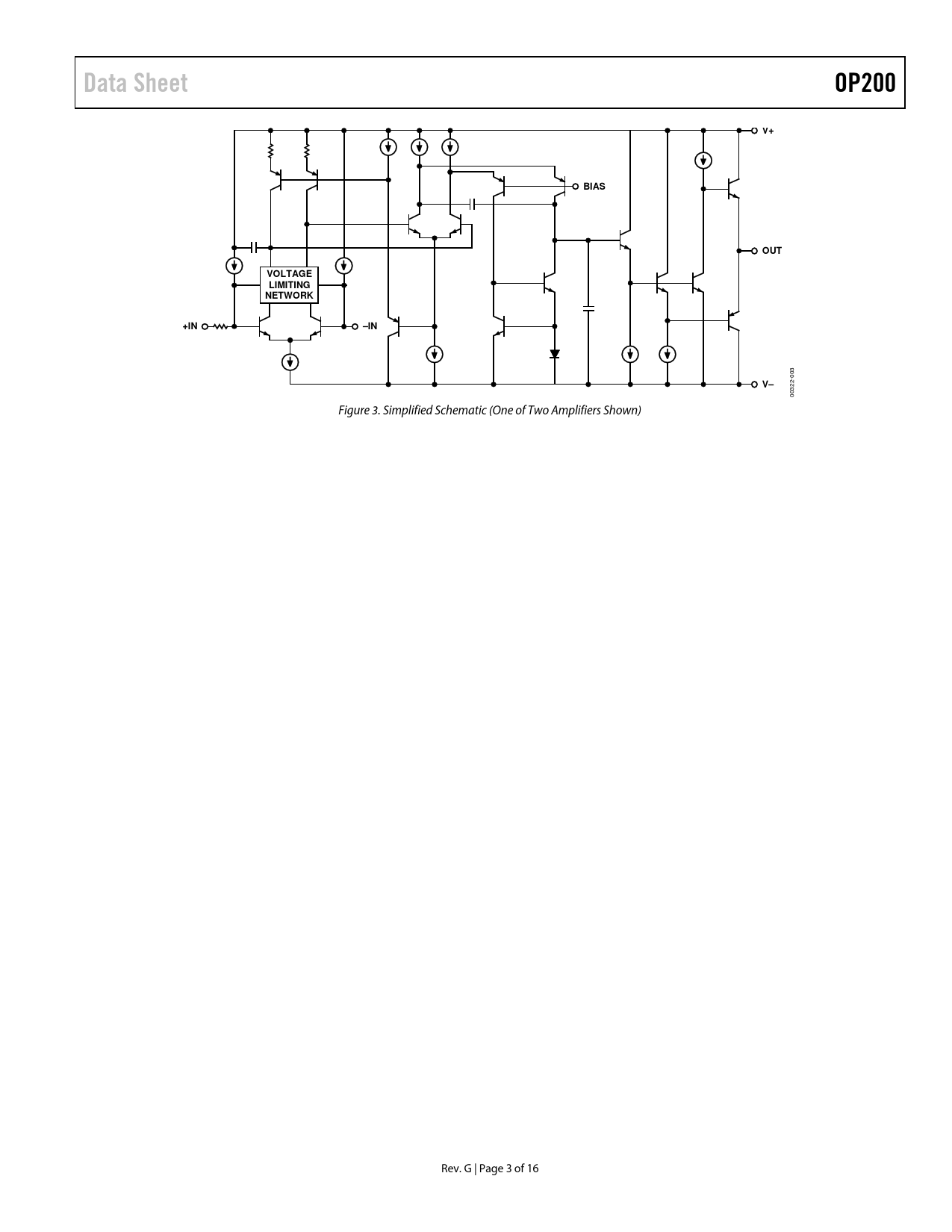

00322- Figure 3. Simplified Schematic (One of Two Amplifiers Shown) Rev. G | Page 3 of 16 Document Outline FEATURES PIN CONNECTIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION DUAL LOW POWER INSTRUMENTATION AMPLIFIER PRECISION ABSOLUTE VALUE AMPLIFIER PRECISION CURRENT PUMP DUAL 12-BIT VOLTAGE OUTPUT DAC DUAL PRECISION VOLTAGE REFERENCE PROGRAMMABLE HIGH RESOLUTION WINDOW COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
