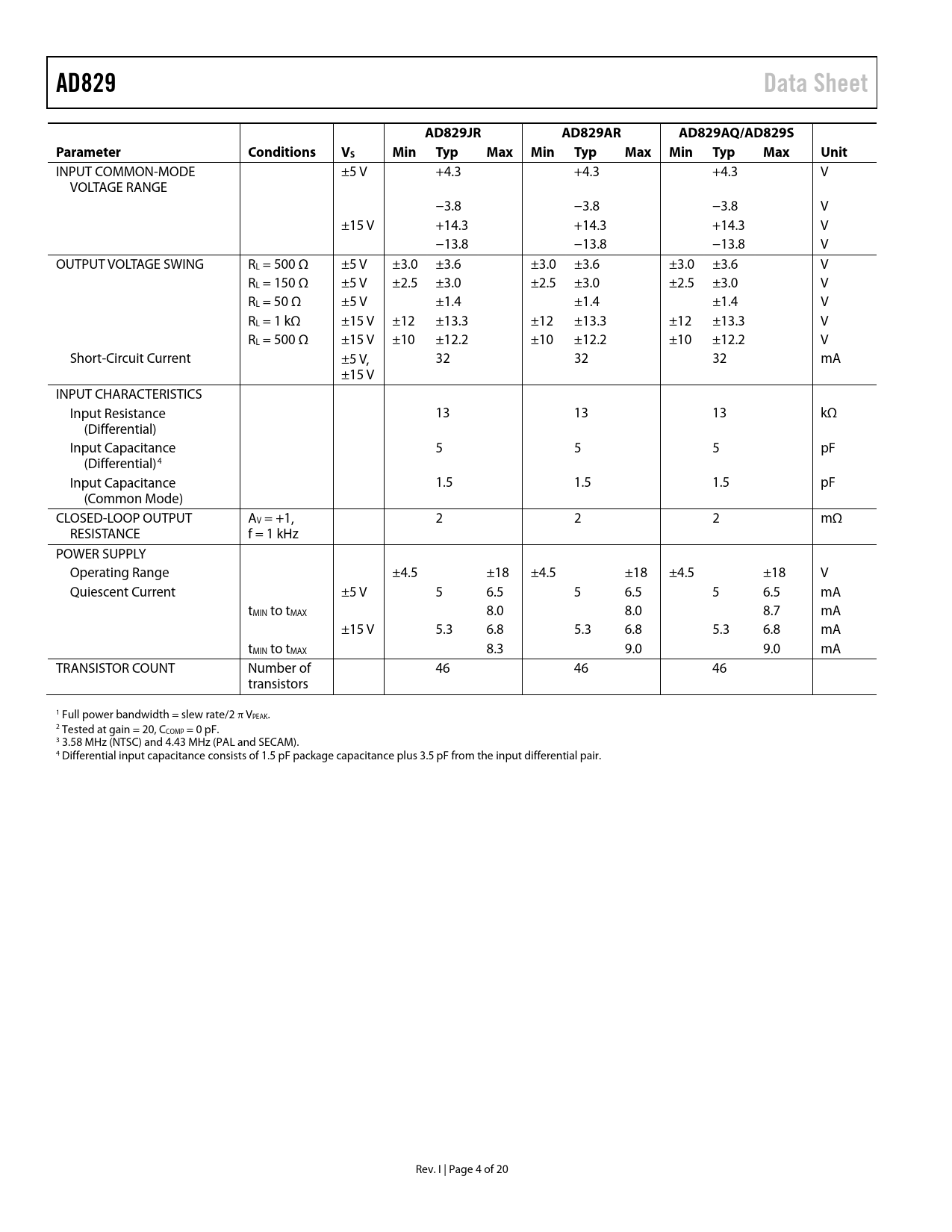

AD829 Data Sheet AD829JR AD829AR AD829AQ/AD829S Parameter Conditions VS Min Typ Max Min Typ Max Min Typ Max Unit
INPUT COMMON-MODE ±5 V +4.3 +4.3 +4.3 V VOLTAGE RANGE −3.8 −3.8 −3.8 V ±15 V +14.3 +14.3 +14.3 V −13.8 −13.8 −13.8 V OUTPUT VOLTAGE SWING RL = 500 Ω ±5 V ±3.0 ±3.6 ±3.0 ±3.6 ±3.0 ±3.6 V RL = 150 Ω ±5 V ±2.5 ±3.0 ±2.5 ±3.0 ±2.5 ±3.0 V RL = 50 Ω ±5 V ±1.4 ±1.4 ±1.4 V RL = 1 kΩ ±15 V ±12 ±13.3 ±12 ±13.3 ±12 ±13.3 V RL = 500 Ω ±15 V ±10 ±12.2 ±10 ±12.2 ±10 ±12.2 V Short-Circuit Current ±5 V, 32 32 32 mA ±15 V INPUT CHARACTERISTICS Input Resistance 13 13 13 kΩ (Differential) Input Capacitance 5 5 5 pF (Differential)4 Input Capacitance 1.5 1.5 1.5 pF (Common Mode) CLOSED-LOOP OUTPUT AV = +1, 2 2 2 mΩ RESISTANCE f = 1 kHz POWER SUPPLY Operating Range ±4.5 ±18 ±4.5 ±18 ±4.5 ±18 V Quiescent Current ±5 V 5 6.5 5 6.5 5 6.5 mA tMIN to tMAX 8.0 8.0 8.7 mA ±15 V 5.3 6.8 5.3 6.8 5.3 6.8 mA tMIN to tMAX 8.3 9.0 9.0 mA TRANSISTOR COUNT Number of 46 46 46 transistors 1 Full power bandwidth = slew rate/2 π VPEAK. 2 Tested at gain = 20, CCOMP = 0 pF. 3 3.58 MHz (NTSC) and 4.43 MHz (PAL and SECAM). 4 Differential input capacitance consists of 1.5 pF package capacitance plus 3.5 pF from the input differential pair. Rev. I | Page 4 of 20 Document Outline Features General Description Connection Diagram Product Highlights Revision History Specifications Absolute Maximum Ratings Thermal Characteristics Metallization Photo ESD Caution Typical Performance Characteristics Test Circuits Theory of Operation Externally Compensating the AD829 Shunt Compensation Current Feedback Compensation Low Error Video Line Driver High Gain Video Bandwidth, 3-Op-Amp Instrumentation Amplifier Outline Dimensions Ordering Guide
