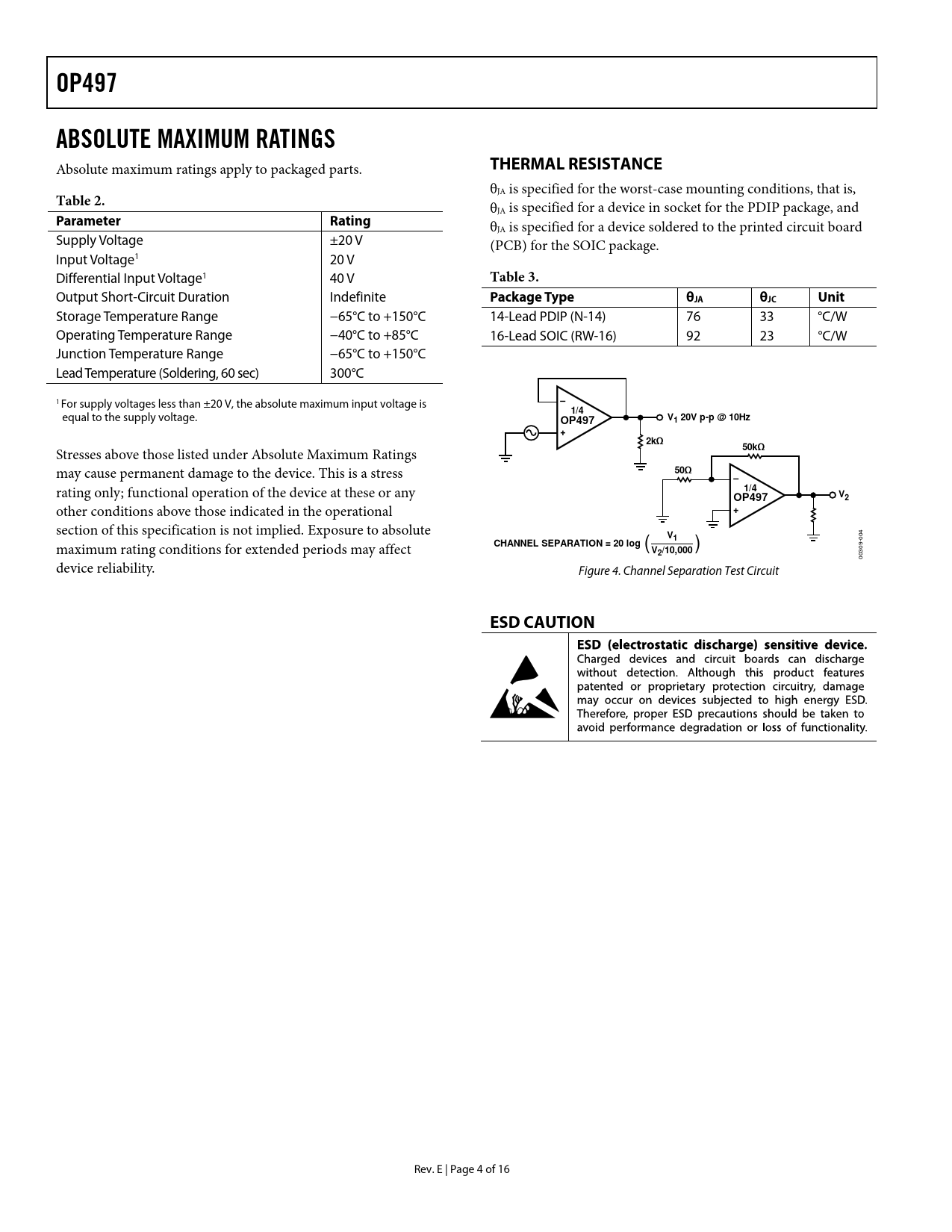

OP497 ABSOLUTE MAXIMUM RATINGS
Absolute maximum ratings apply to packaged parts.
THERMAL RESISTANCE
θJA is specified for the worst-case mounting conditions, that is,
Table 2.
θJA is specified for a device in socket for the PDIP package, and
Parameter Rating
θJA is specified for a device soldered to the printed circuit board Supply Voltage ±20 V (PCB) for the SOIC package. Input Voltage1 20 V Differential Input Voltage1 40 V
Table 3.
Output Short-Circuit Duration Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 14-Lead PDIP (N-14) 76 33 °C/W Operating Temperature Range −40°C to +85°C 16-Lead SOIC (RW-16) 92 23 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C 1 For supply voltages less than ±20 V, the absolute maximum input voltage is
– 1/4
equal to the supply voltage.
OP497 V1 20V p-p @ 10Hz + 2kΩ 50kΩ
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
50Ω –
rating only; functional operation of the device at these or any
1/4 V OP497 2
other conditions above those indicated in the operational
+
section of this specification is not implied. Exposure to absolute 4
V1
00 maximum rating conditions for extended periods may affect
CHANNEL SEPARATION = 20 log
( ) 9-
V2/10,000
30 00 device reliability. Figure 4. Channel Separation Test Circuit
ESD CAUTION
