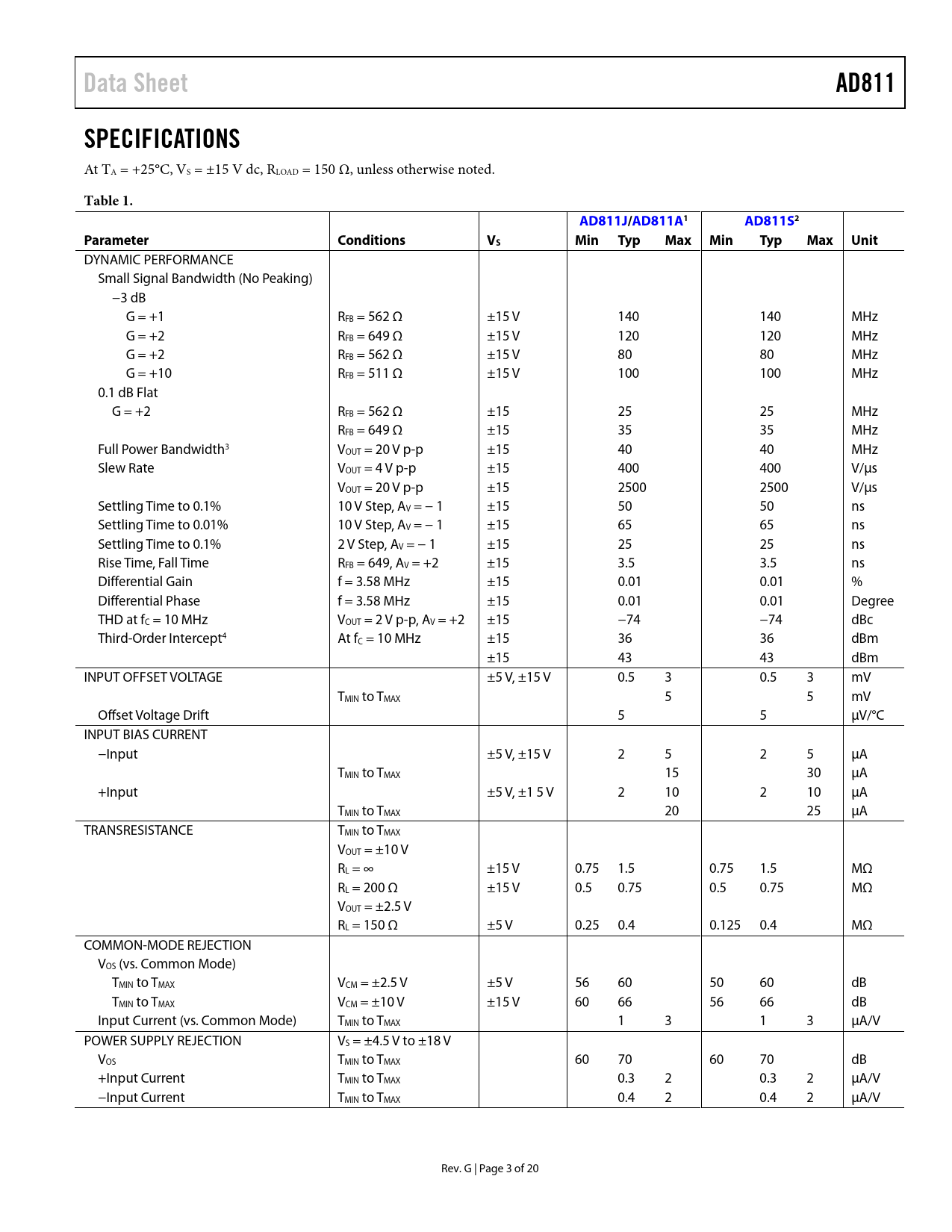

Data Sheet AD811 SPECIFICATIONS
At TA = +25°C, VS = ±15 V dc, RLOAD = 150 Ω, unless otherwise noted.
Table 1. AD811J/AD811A 1 AD811S 2 Parameter Conditions VS Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE Small Signal Bandwidth (No Peaking) −3 dB G = +1 RFB = 562 Ω ±15 V 140 140 MHz G = +2 RFB = 649 Ω ±15 V 120 120 MHz G = +2 RFB = 562 Ω ±15 V 80 80 MHz G = +10 RFB = 511 Ω ±15 V 100 100 MHz 0.1 dB Flat G = +2 RFB = 562 Ω ±15 25 25 MHz RFB = 649 Ω ±15 35 35 MHz Full Power Bandwidth3 VOUT = 20 V p-p ±15 40 40 MHz Slew Rate VOUT = 4 V p-p ±15 400 400 V/µs VOUT = 20 V p-p ±15 2500 2500 V/µs Settling Time to 0.1% 10 V Step, AV = − 1 ±15 50 50 ns Settling Time to 0.01% 10 V Step, AV = − 1 ±15 65 65 ns Settling Time to 0.1% 2 V Step, AV = − 1 ±15 25 25 ns Rise Time, Fall Time RFB = 649, AV = +2 ±15 3.5 3.5 ns Differential Gain f = 3.58 MHz ±15 0.01 0.01 % Differential Phase f = 3.58 MHz ±15 0.01 0.01 Degree THD at fC = 10 MHz VOUT = 2 V p-p, AV = +2 ±15 −74 −74 dBc Third-Order Intercept4 At fC = 10 MHz ±15 36 36 dBm ±15 43 43 dBm INPUT OFFSET VOLTAGE ±5 V, ±15 V 0.5 3 0.5 3 mV TMIN to TMAX 5 5 mV Offset Voltage Drift 5 5 µV/°C INPUT BIAS CURRENT −Input ±5 V, ±15 V 2 5 2 5 µA TMIN to TMAX 15 30 µA +Input ±5 V, ±1 5 V 2 10 2 10 µA TMIN to TMAX 20 25 µA TRANSRESISTANCE TMIN to TMAX VOUT = ±10 V RL = ∞ ±15 V 0.75 1.5 0.75 1.5 MΩ RL = 200 Ω ±15 V 0.5 0.75 0.5 0.75 MΩ VOUT = ±2.5 V RL = 150 Ω ±5 V 0.25 0.4 0.125 0.4 MΩ COMMON-MODE REJECTION VOS (vs. Common Mode) TMIN to TMAX VCM = ±2.5 V ±5 V 56 60 50 60 dB TMIN to TMAX VCM = ±10 V ±15 V 60 66 56 66 dB Input Current (vs. Common Mode) TMIN to TMAX 1 3 1 3 µA/V POWER SUPPLY REJECTION VS = ±4.5 V to ±18 V VOS TMIN to TMAX 60 70 60 70 dB +Input Current TMIN to TMAX 0.3 2 0.3 2 µA/V −Input Current TMIN to TMAX 0.4 2 0.4 2 µA/V Rev. G | Page 3 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION METALIZATION PHOTOGRAPH ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GENERAL DESIGN CONSIDERATIONS ACHIEVING THE FLATTEST GAIN RESPONSE AT HIGH FREQUENCY Choice of Feedback and Gain Resistors Printed Circuit Board Layout Considerations Quality of Coaxial Cable Power Supply Bypassing Driving Capacitive Loads OPERATION AS A VIDEO LINE DRIVER AN 80 MHZ VOLTAGE-CONTROLLED AMPLIFIER CIRCUIT A VIDEO KEYER CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
