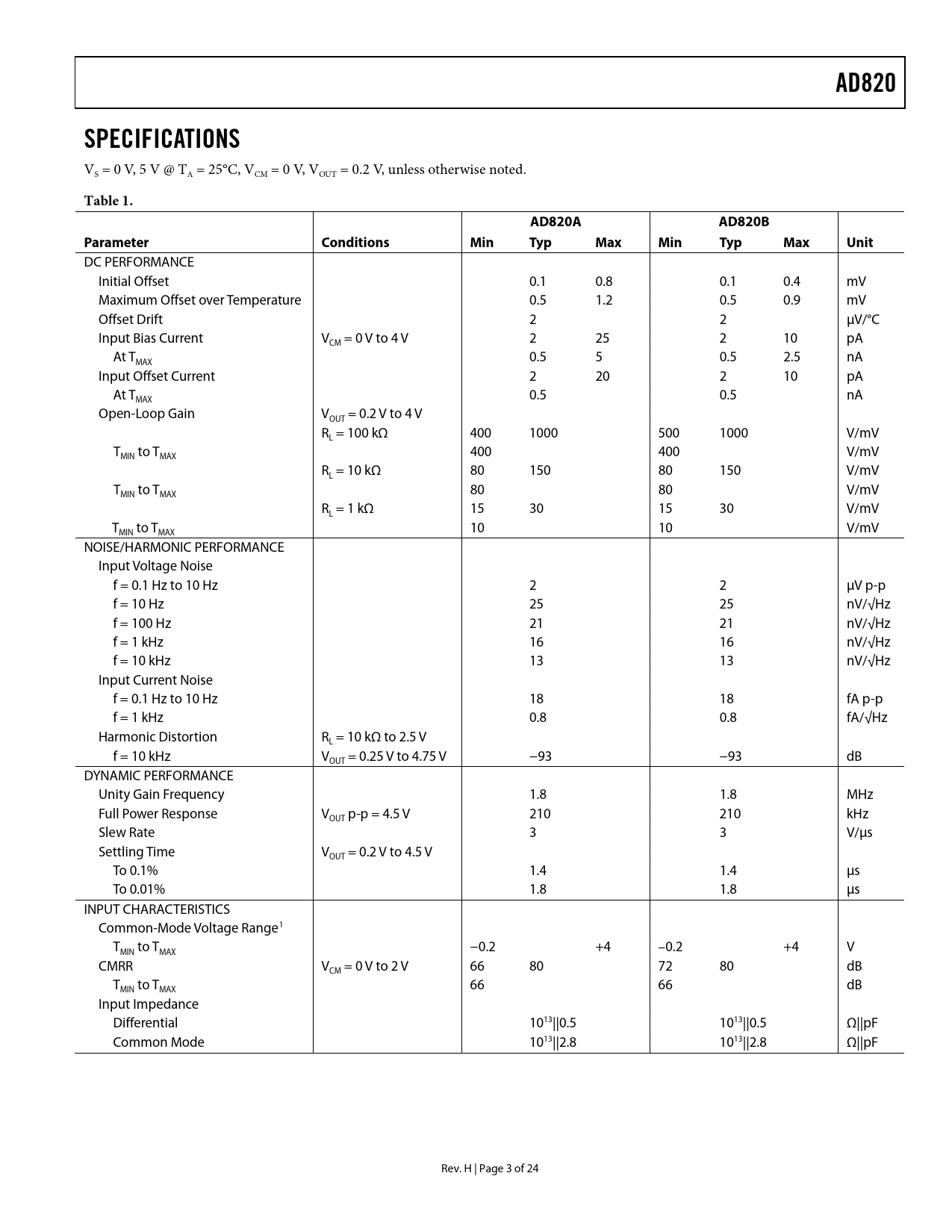

AD820 SPECIFICATIONS
VS = 0 V, 5 V @ TA = 25°C, VCM = 0 V, VOUT = 0.2 V, unless otherwise noted.
Table 1. AD820A AD820B Parameter Conditions Min Typ Max Min Typ Max Unit
