Datasheet AD8013 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | Single Supply, Low Power, Triple Video Amplifier |
| Seiten / Seite | 13 / 5 — AD8013. METALIZATION PHOTO. +IN1. +vs. DISABLE 3. –IN1 6. 2 DISABLE 2. 1 … |
| Revision | A |
| Dateiformat / Größe | PDF / 358 Kb |
| Dokumentensprache | Englisch |
AD8013. METALIZATION PHOTO. +IN1. +vs. DISABLE 3. –IN1 6. 2 DISABLE 2. 1 DISABLE 1. OUT1 7. 0.044 (1.13). 14 OUT 2. OUT3 8. –IN3 9. +IN3. +IN2. –IN2
Textversion des Dokuments

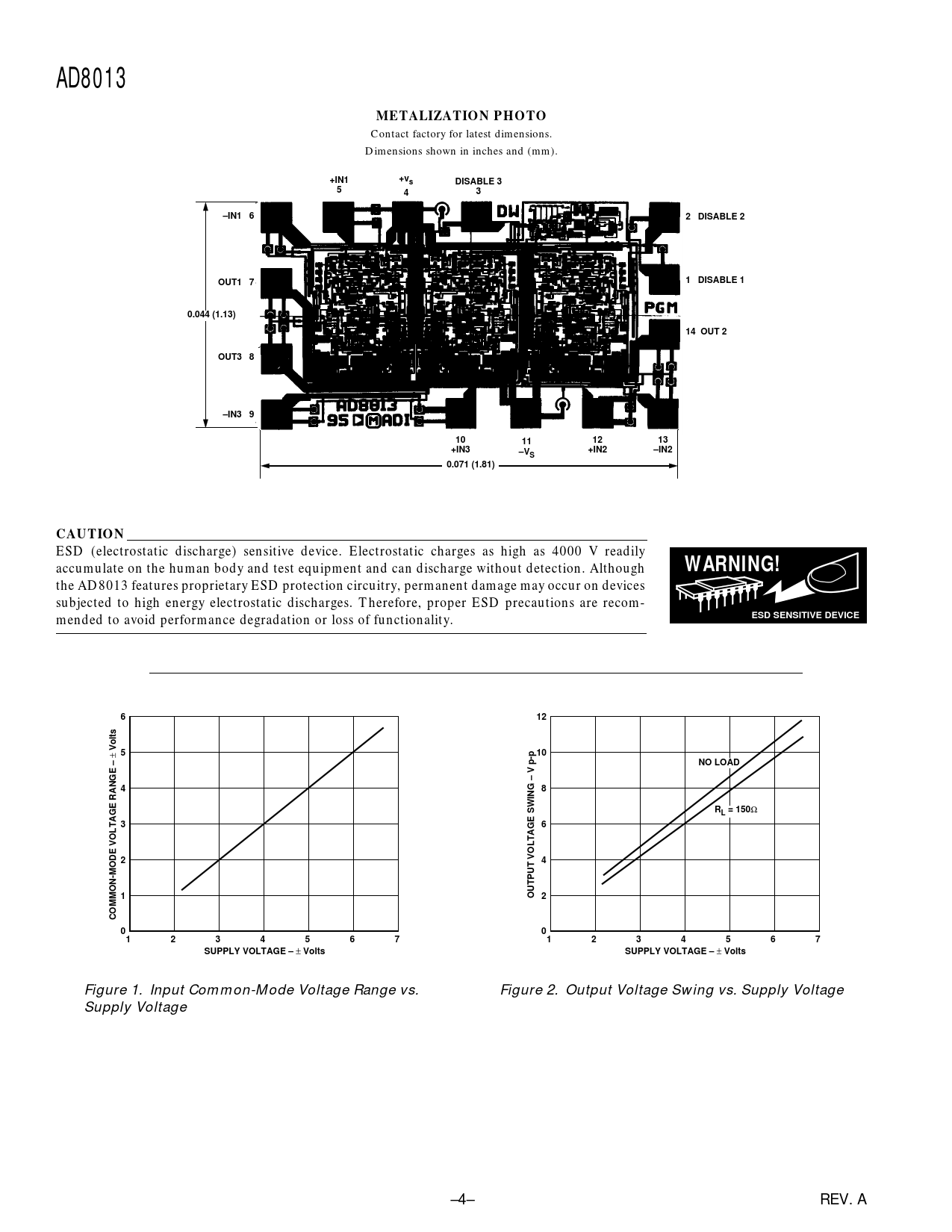

AD8013 METALIZATION PHOTO
Contact factory for latest dimensions. Dimensions shown in inches and (mm).
+IN1 +vs DISABLE 3 5 4 3 –IN1 6 2 DISABLE 2 1 DISABLE 1 OUT1 7 0.044 (1.13) 14 OUT 2 OUT3 8 –IN3 9 10 11 12 13 +IN3 –V +IN2 –IN2 S 0.071 (1.81) CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the AD8013 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recom- mended to avoid performance degradation or loss of functionality.
ESD SENSITIVE DEVICE 6 12
±
Volts 5 10 NO LOAD 4 8 RL = 150
Ω
3 6 2 4 1 OUTPUT VOLTAGE SWING – V p-p 2 COMMON-MODE VOLTAGE RANGE – 0 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 SUPPLY VOLTAGE –
±
Volts SUPPLY VOLTAGE –
±
Volts
Figure 1. Input Common-Mode Voltage Range vs. Figure 2. Output Voltage Swing vs. Supply Voltage Supply Voltage –4– REV. A
