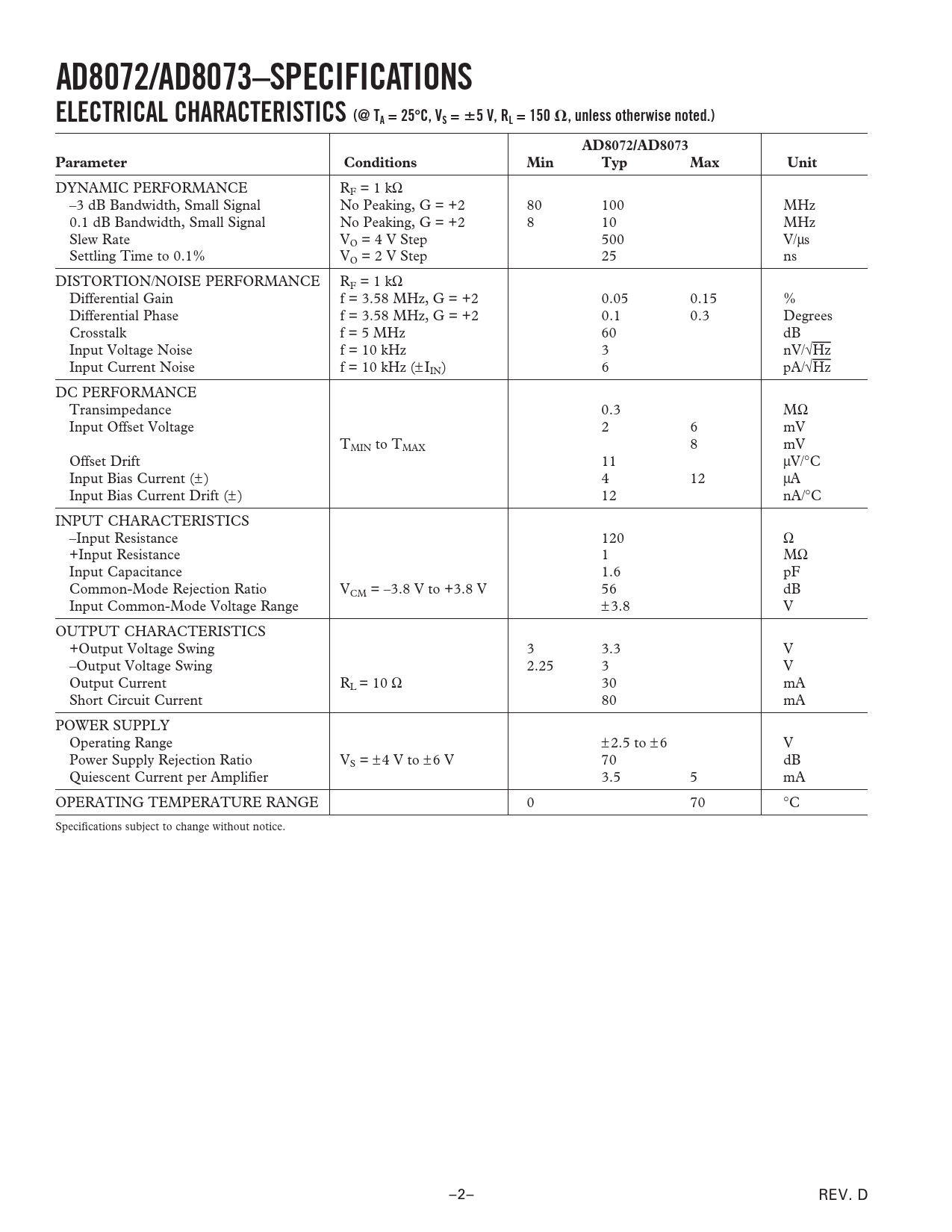

AD8072/AD8073–SPECIFICATIONS ELECTRICAL CHARACTERISTICS (@ TA = 25
ⴗ
C, VS =
ⴞ
5 V, RL = 150
⍀
, unless otherwise noted.) AD8072/AD8073 Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE RF = 1 kΩ –3 dB Bandwidth, Small Signal No Peaking, G = +2 80 100 MHz 0.1 dB Bandwidth, Small Signal No Peaking, G = +2 8 10 MHz Slew Rate VO = 4 V Step 500 V/µs Settling Time to 0.1% VO = 2 V Step 25 ns DISTORTION/NOISE PERFORMANCE RF = 1 kΩ Differential Gain f = 3.58 MHz, G = +2 0.05 0.15 % Differential Phase f = 3.58 MHz, G = +2 0.1 0.3 Degrees Crosstalk f = 5 MHz 60 dB Input Voltage Noise f = 10 kHz 3 nV/√Hz Input Current Noise f = 10 kHz (± IIN) 6 pA/√Hz DC PERFORMANCE Transimpedance 0.3 MΩ Input Offset Voltage 2 6 mV TMIN to TMAX 8 mV Offset Drift 11 µV/°C Input Bias Current (± ) 4 12 µA Input Bias Current Drift (± ) 12 nA/°C INPUT CHARACTERISTICS –Input Resistance 120 Ω +Input Resistance 1 MΩ Input Capacitance 1.6 pF Common-Mode Rejection Ratio VCM = –3.8 V to +3.8 V 56 dB Input Common-Mode Voltage Range ±3.8 V OUTPUT CHARACTERISTICS +Output Voltage Swing 3 3.3 V –Output Voltage Swing 2.25 3 V Output Current RL = 10 Ω 30 mA Short Circuit Current 80 mA POWER SUPPLY Operating Range ±2.5 to ±6 V Power Supply Rejection Ratio VS = ± 4 V to ± 6 V 70 dB Quiescent Current per Amplifier 3.5 5 mA OPERATING TEMPERATURE RANGE 0 70 °C Specifications subject to change without notice. –2– REV. D
