AD8051/AD8052/AD8054
@ TA = 25°C, VS = ±5 V, RL = 2 kΩ to ground, unless otherwise noted.

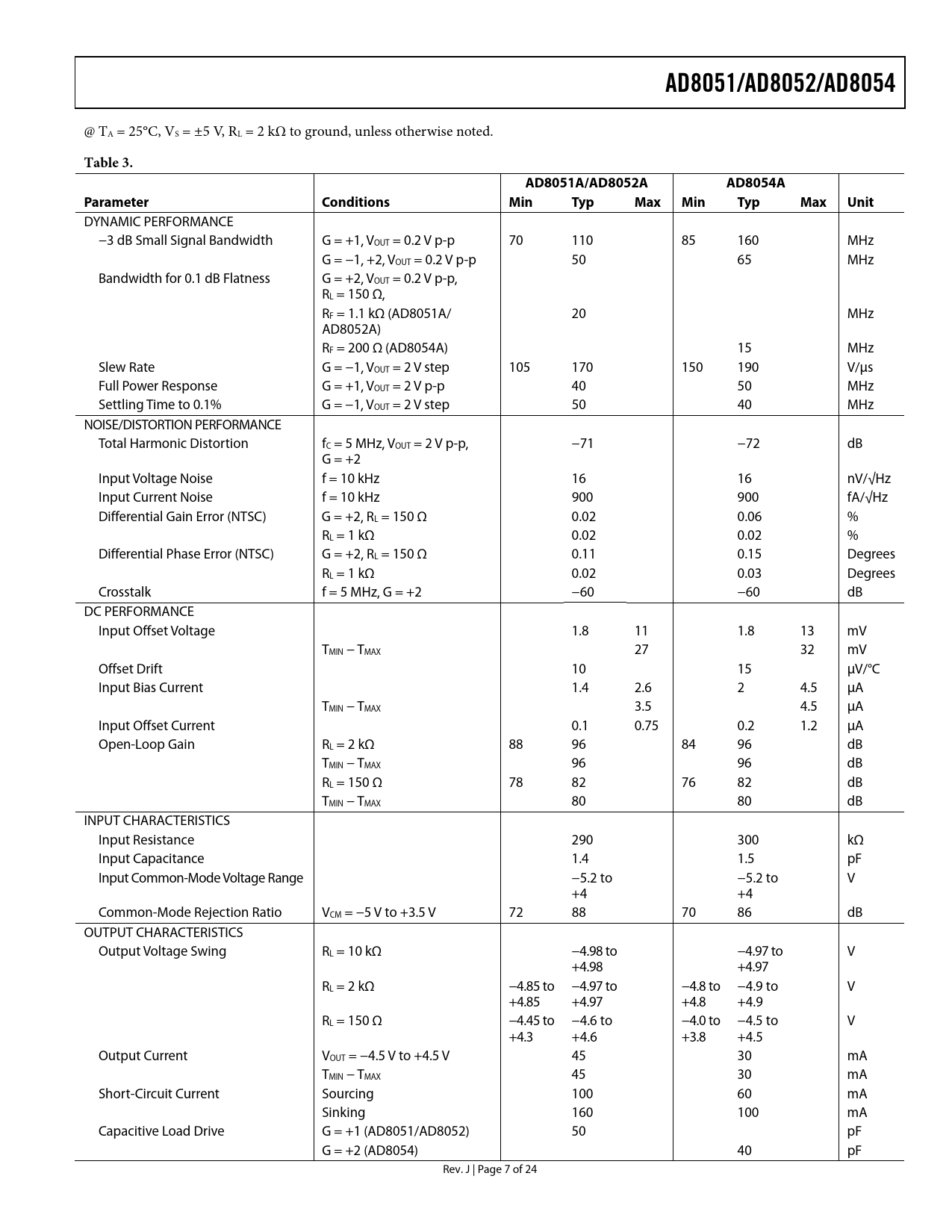

Table 3. AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth G = +1, VOUT = 0.2 V p-p 70 110 85 160 MHz G = −1, +2, VOUT = 0.2 V p-p 50 65 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p, RL = 150 Ω, RF = 1.1 kΩ (AD8051A/ 20 MHz AD8052A) RF = 200 Ω (AD8054A) 15 MHz Slew Rate G = −1, VOUT = 2 V step 105 170 150 190 V/μs Full Power Response G = +1, VOUT = 2 V p-p 40 50 MHz Settling Time to 0.1% G = −1, VOUT = 2 V step 50 40 MHz NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion fC = 5 MHz, VOUT = 2 V p-p, −71 −72 dB G = +2 Input Voltage Noise f = 10 kHz 16 16 nV/√Hz Input Current Noise f = 10 kHz 900 900 fA/√Hz Differential Gain Error (NTSC) G = +2, RL = 150 Ω 0.02 0.06 % RL = 1 kΩ 0.02 0.02 % Differential Phase Error (NTSC) G = +2, RL = 150 Ω 0.11 0.15 Degrees RL = 1 kΩ 0.02 0.03 Degrees Crosstalk f = 5 MHz, G = +2 −60 −60 dB DC PERFORMANCE Input Offset Voltage 1.8 11 1.8 13 mV TMIN − TMAX 27 32 mV Offset Drift 10 15 μV/°C Input Bias Current 1.4 2.6 2 4.5 μA TMIN − TMAX 3.5 4.5 μA Input Offset Current 0.1 0.75 0.2 1.2 μA Open-Loop Gain RL = 2 kΩ 88 96 84 96 dB TMIN − TMAX 96 96 dB RL = 150 Ω 78 82 76 82 dB TMIN − TMAX 80 80 dB INPUT CHARACTERISTICS Input Resistance 290 300 kΩ Input Capacitance 1.4 1.5 pF Input Common-Mode Voltage Range −5.2 to −5.2 to V +4 +4 Common-Mode Rejection Ratio VCM = −5 V to +3.5 V 72 88 70 86 dB OUTPUT CHARACTERISTICS Output Voltage Swing RL = 10 kΩ −4.98 to −4.97 to V +4.98 +4.97 RL = 2 kΩ −4.85 to −4.97 to −4.8 to −4.9 to V +4.85 +4.97 +4.8 +4.9 RL = 150 Ω −4.45 to −4.6 to −4.0 to −4.5 to V +4.3 +4.6 +3.8 +4.5 Output Current VOUT = −4.5 V to +4.5 V 45 30 mA TMIN − TMAX 45 30 mA Short-Circuit Current Sourcing 100 60 mA Sinking 160 100 mA Capacitive Load Drive G = +1 (AD8051/AD8052) 50 pF G = +2 (AD8054) 40 pF Rev. J | Page 7 of 24 Document Outline Features Applications Pin Connections (Top Views) General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation Circuit Description Application Information Overdrive Recovery Driving Capacitive Loads Layout Considerations Active Filters Analog-to-Digital and Digital-to-Analog Applications Sync Stripper Single-Supply Composite Video Line Driver Outline Dimensions Ordering Guide
