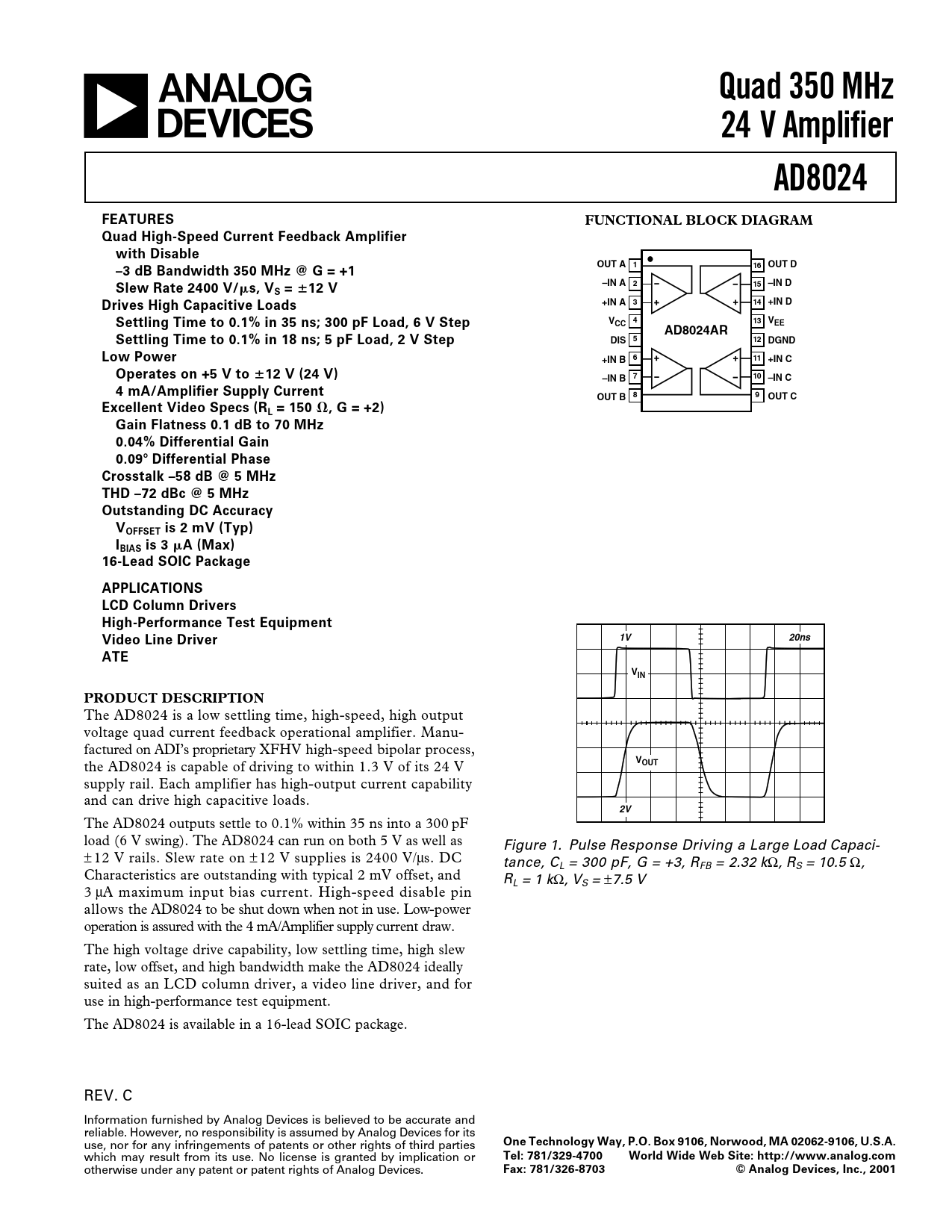

Quad 350 MHz. 24 V Amplifier. AD8024. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Quad High-Speed Current Feedback Amplifier. with Disable
Textversion des Dokuments
a
Quad 350 MHz 24 V Amplifier AD8024 FEATURES FUNCTIONAL BLOCK DIAGRAM Quad High-Speed Current Feedback Amplifier with Disable OUT A 1 16 OUT D –3 dB Bandwidth 350 MHz @ G = +1 –IN A 2 15 –IN D Slew Rate 2400 V/ s, VS = 12 V +IN A 3 14 +IN D Drives High Capacitive Loads V 4 13 Settling Time to 0.1% in 35 ns; 300 pF Load, 6 V Step CC VEE AD8024AR 5 12 Settling Time to 0.1% in 18 ns; 5 pF Load, 2 V Step DIS DGND Low Power 6 11 +IN B +IN C Operates on +5 V to 12 V (24 V) 7 10 –IN B –IN C 4 mA/Amplifier Supply Current 8 9 OUT B OUT C Excellent Video Specs (RL = 150 , G = +2) Gain Flatness 0.1 dB to 70 MHz 0.04% Differential Gain 0.09 Differential Phase Crosstalk –58 dB @ 5 MHz THD –72 dBc @ 5 MHz Outstanding DC Accuracy VOFFSET is 2 mV (Typ) IBIAS is 3 A (Max) 16-Lead SOIC Package APPLICATIONS LCD Column Drivers High-Performance Test Equipment 1V 20ns Video Line Driver ATE VIN PRODUCT DESCRIPTION
The AD8024 is a low settling time, high-speed, high output voltage quad current feedback operational amplifier. Manu- factured on ADI’s proprietary XFHV high-speed bipolar process,
V
the AD8024 is capable of driving to within 1.3 V of its 24 V
OUT
supply rail. Each amplifier has high-output current capability and can drive high capacitive loads.
2V
The AD8024 outputs settle to 0.1% within 35 ns into a 300 pF load (6 V swing). The AD8024 can run on both 5 V as well as Figure 1. Pulse Response Driving a Large Load Capaci- ± 12 V rails. Slew rate on ± 12 V supplies is 2400 V/µs. DC tance, CL = 300 pF, G = +3, RFB = 2.32 kΩ, RS = 10.5 Ω, Characteristics are outstanding with typical 2 mV offset, and RL = 1 kΩ, VS = ±7.5 V 3 µA maximum input bias current. High-speed disable pin allows the AD8024 to be shut down when not in use. Low-power operation is assured with the 4 mA/Amplifier supply current draw. The high voltage drive capability, low settling time, high slew rate, low offset, and high bandwidth make the AD8024 ideally suited as an LCD column driver, a video line driver, and for use in high-performance test equipment. The AD8024 is available in a 16-lead SOIC package. REV. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
