Datasheet AD8515 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 1.8 V Low Power CMOS Rail-to-Rail Input/Output Operational Amplifier |
| Seiten / Seite | 17 / 7 — AD8515. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 4. THERMAL … |
| Revision | E |
| Dateiformat / Größe | PDF / 330 Kb |
| Dokumentensprache | Englisch |
AD8515. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 4. THERMAL RESISTANCE. Parameter. Rating. Table 5. Thermal Resistance. Package Type
Textversion des Dokuments

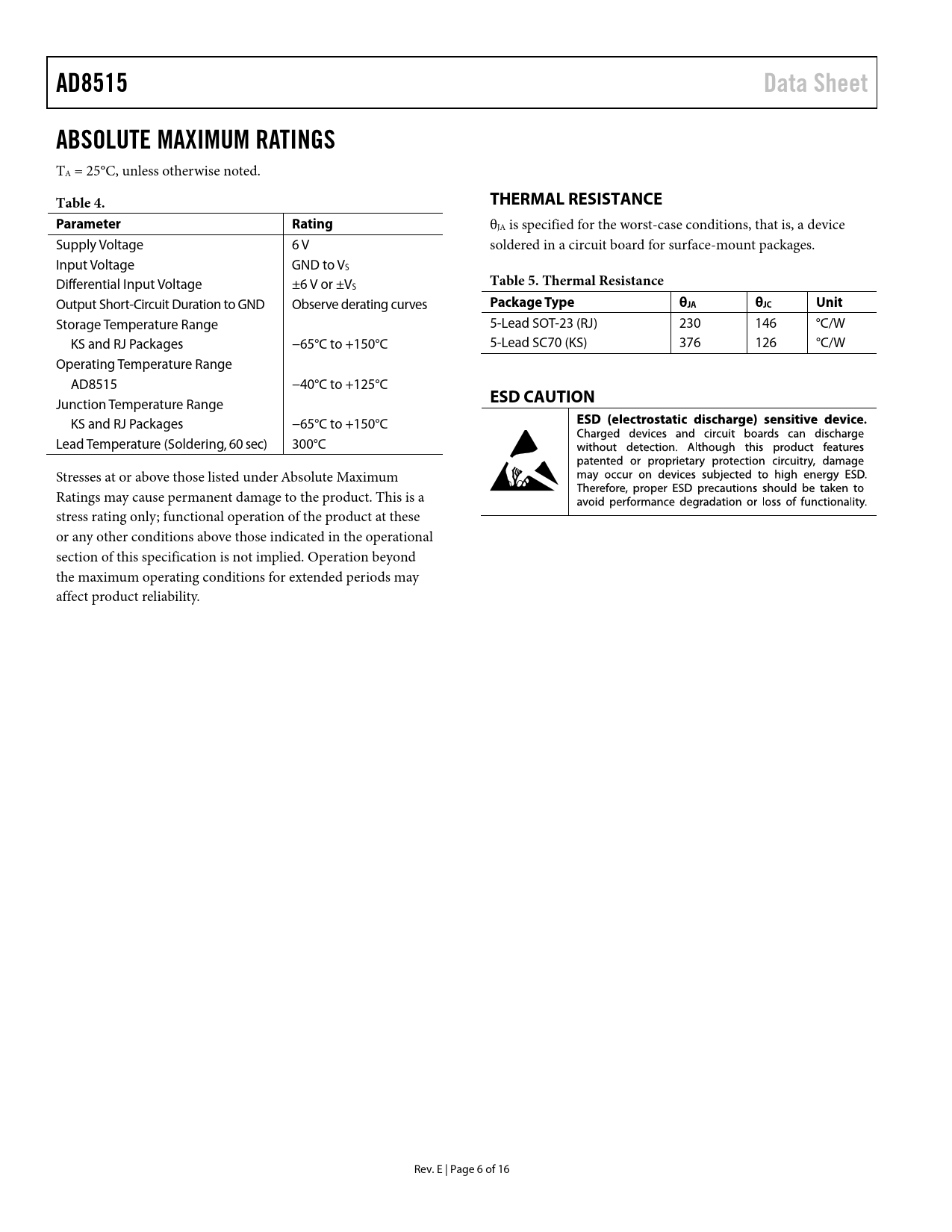

AD8515 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 4. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for surface-mount packages. Input Voltage GND to VS Differential Input Voltage ±6 V or ±V
Table 5. Thermal Resistance
S Output Short-Circuit Duration to GND Observe derating curves
Package Type θJA θJC Unit
Storage Temperature Range 5-Lead SOT-23 (RJ) 230 146 °C/W KS and RJ Packages −65°C to +150°C 5-Lead SC70 (KS) 376 126 °C/W Operating Temperature Range AD8515 −40°C to +125°C Junction Temperature Range
ESD CAUTION
KS and RJ Packages −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. E | Page 6 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER CONSUMPTION vs. BANDWIDTH DRIVING CAPACITIVE LOADS FULL POWER BANDWIDTH A MICROPOWER REFERENCE VOLTAGE GENERATOR A 100 kHz SINGLE-SUPPLY SECOND-ORDER BAND-PASS FILTER WIEN BRIDGE OSCILLATOR OUTLINE DIMENSIONS ORDERING GUIDE
