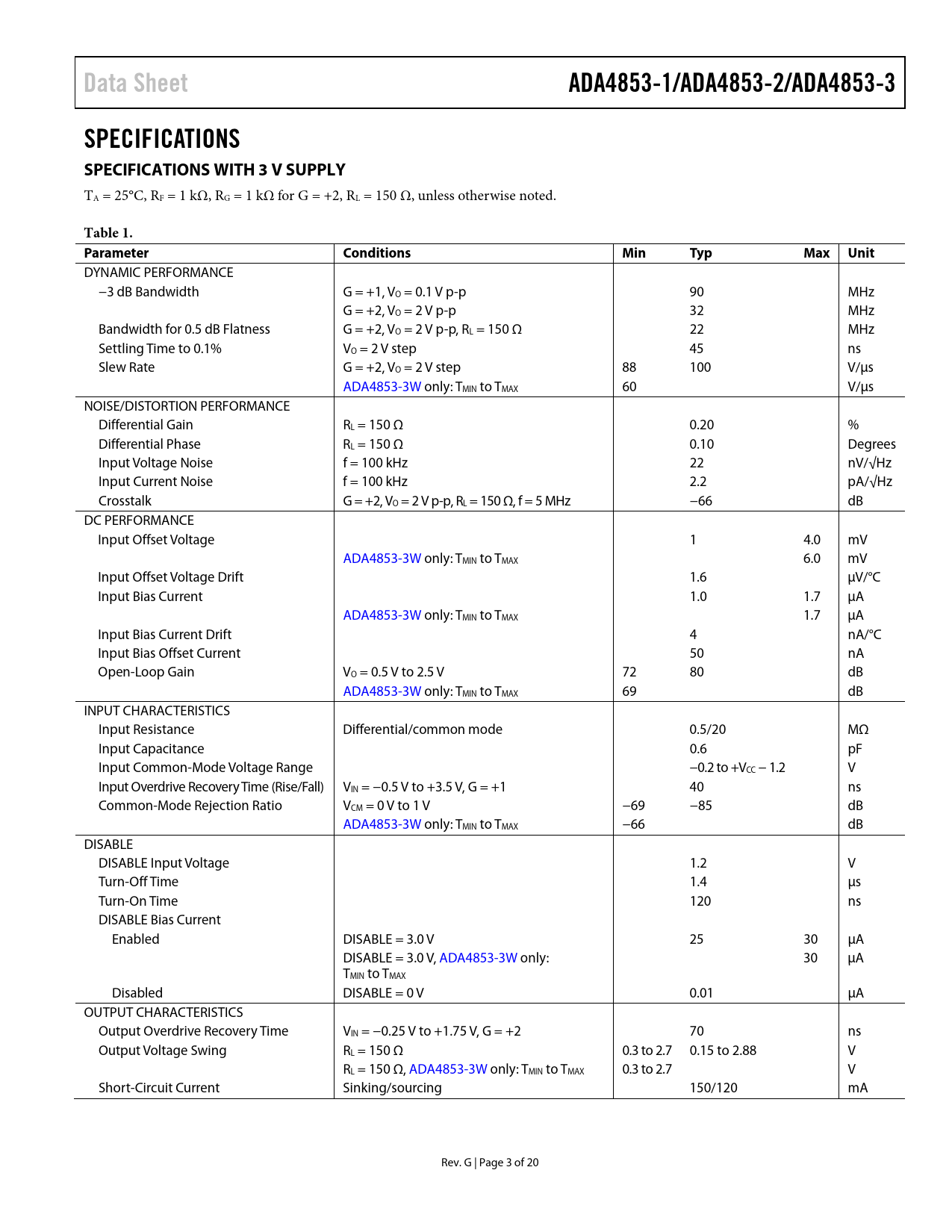

Data Sheet ADA4853-1/ADA4853-2/ADA4853-3 SPECIFICATIONS SPECIFICATIONS WITH 3 V SUPPLY
TA = 25°C, RF = 1 kΩ, RG = 1 kΩ for G = +2, RL = 150 Ω, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VO = 0.1 V p-p 90 MHz G = +2, VO = 2 V p-p 32 MHz Bandwidth for 0.5 dB Flatness G = +2, VO = 2 V p-p, RL = 150 Ω 22 MHz Settling Time to 0.1% VO = 2 V step 45 ns Slew Rate G = +2, VO = 2 V step 88 100 V/µs ADA4853-3W only: TMIN to TMAX 60 V/µs NOISE/DISTORTION PERFORMANCE Differential Gain RL = 150 Ω 0.20 % Differential Phase RL = 150 Ω 0.10 Degrees Input Voltage Noise f = 100 kHz 22 nV/√Hz Input Current Noise f = 100 kHz 2.2 pA/√Hz Crosstalk G = +2, VO = 2 V p-p, RL = 150 Ω, f = 5 MHz −66 dB DC PERFORMANCE Input Offset Voltage 1 4.0 mV ADA4853-3W only: TMIN to TMAX 6.0 mV Input Offset Voltage Drift 1.6 µV/°C Input Bias Current 1.0 1.7 µA ADA4853-3W only: TMIN to TMAX 1.7 µA Input Bias Current Drift 4 nA/°C Input Bias Offset Current 50 nA Open-Loop Gain VO = 0.5 V to 2.5 V 72 80 dB ADA4853-3W only: TMIN to TMAX 69 dB INPUT CHARACTERISTICS Input Resistance Differential/common mode 0.5/20 MΩ Input Capacitance 0.6 pF Input Common-Mode Voltage Range −0.2 to +VCC − 1.2 V Input Overdrive Recovery Time (Rise/Fal ) VIN = −0.5 V to +3.5 V, G = +1 40 ns Common-Mode Rejection Ratio VCM = 0 V to 1 V −69 −85 dB ADA4853-3W only: TMIN to TMAX −66 dB DISABLE DISABLE Input Voltage 1.2 V Turn-Off Time 1.4 µs Turn-On Time 120 ns DISABLE Bias Current Enabled DISABLE = 3.0 V 25 30 µA DISABLE = 3.0 V, ADA4853-3W only: 30 µA TMIN to TMAX Disabled DISABLE = 0 V 0.01 µA OUTPUT CHARACTERISTICS Output Overdrive Recovery Time VIN = −0.25 V to +1.75 V, G = +2 70 ns Output Voltage Swing RL = 150 Ω 0.3 to 2.7 0.15 to 2.88 V RL = 150 Ω, ADA4853-3W only: TMIN to TMAX 0.3 to 2.7 V Short-Circuit Current Sinking/sourcing 150/120 mA Rev. G | Page 3 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPECIFICATIONS WITH 3 V SUPPLY SPECIFICATIONS WITH 5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION HEADROOM CONSIDERATIONS OVERLOAD BEHAVIOR AND RECOVERY Input APPLICATIONS INFORMATION SINGLE-SUPPLY VIDEO AMPLIFIER POWER SUPPLY BYPASSING LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
