Datasheet ADA4004-1, ADA4004-2, ADA4004-4 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 1.8nV/√Hz, 36 V Precision Dual Amplifier |
| Seiten / Seite | 16 / 5 — Data Sheet. ADA4004-1/ADA4004-2/ADA4004-4. ABSOLUTE MAXIMUM RATINGS. … |
| Revision | H |
| Dateiformat / Größe | PDF / 391 Kb |
| Dokumentensprache | Englisch |

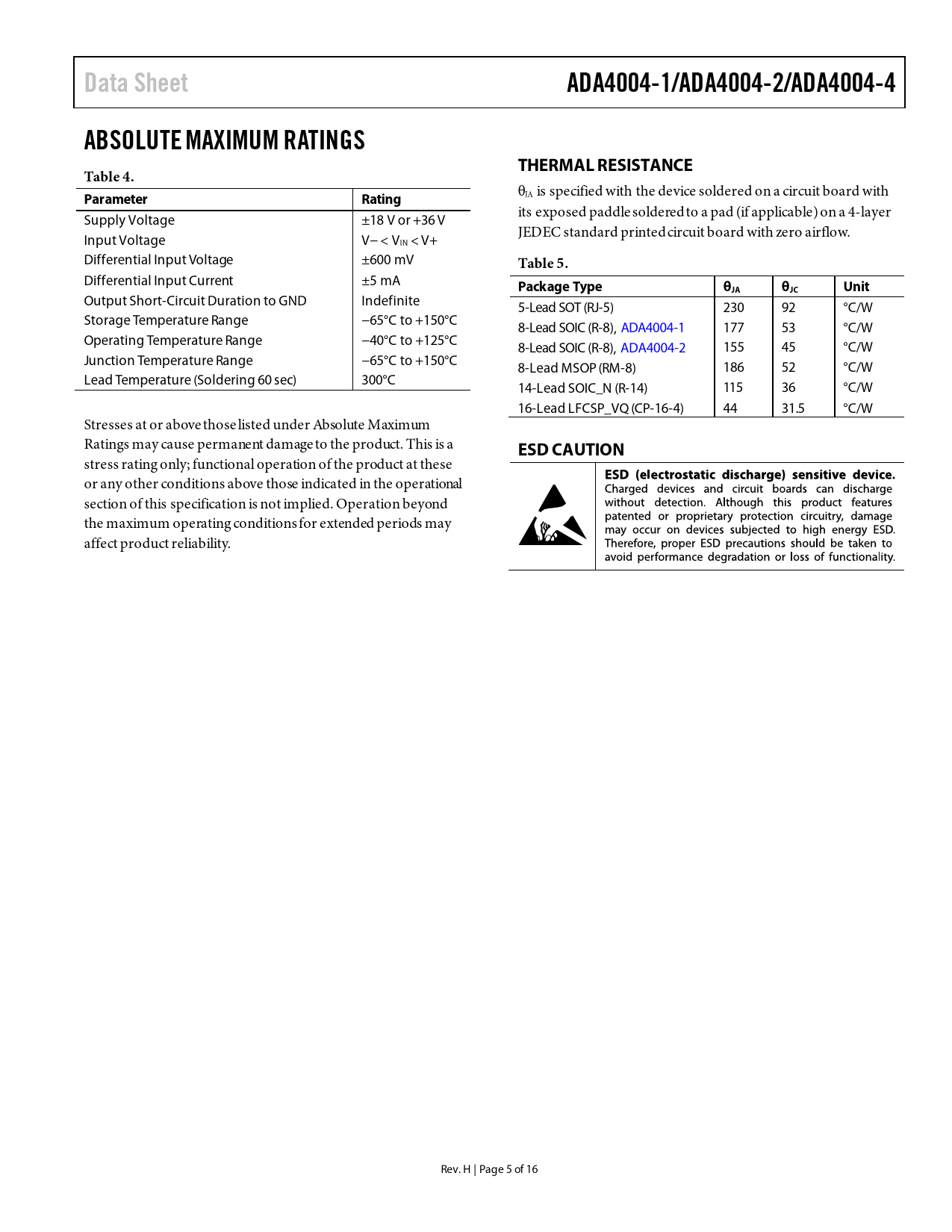

Data Sheet. ADA4004-1/ADA4004-2/ADA4004-4. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter. Rating. Table 5
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADA4004-1/ADA4004-2/ADA4004-4 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating
θJA is specified with the device soldered on a circuit board with Supply Voltage ±18 V or +36 V its exposed paddle soldered to a pad (if applicable) on a 4-layer Input Voltage V− < V JEDEC standard printed circuit board with zero airflow. IN < V+ Differential Input Voltage ±600 mV
Table 5.
Differential Input Current ±5 mA
Package Type θJA θJC Unit
Output Short-Circuit Duration to GND Indefinite 5-Lead SOT (RJ-5) 230 92 °C/W Storage Temperature Range −65°C to +150°C 8-Lead SOIC (R-8), ADA4004-1 177 53 °C/W Operating Temperature Range −40°C to +125°C 8-Lead SOIC (R-8), ADA4004-2 155 45 °C/W Junction Temperature Range −65°C to +150°C 8-Lead MSOP (RM-8) 186 52 °C/W Lead Temperature (Soldering 60 sec) 300°C 14-Lead SOIC_N (R-14) 115 36 °C/W 16-Lead LFCSP_VQ (CP-16-4) 44 31.5 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
ESD CAUTION
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. H | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
