Datasheet ADA4627-1, ADA4637-1 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 30 V, 80 MHz, Low Noise, Low Bias Current, JFET Op Amp |
| Seiten / Seite | 20 / 5 — Data Sheet. ADA4627-1/ADA4637-1. ABSOLUTE MAXIMUM RATINGS. THERMAL … |
| Revision | F |
| Dateiformat / Größe | PDF / 793 Kb |
| Dokumentensprache | Englisch |

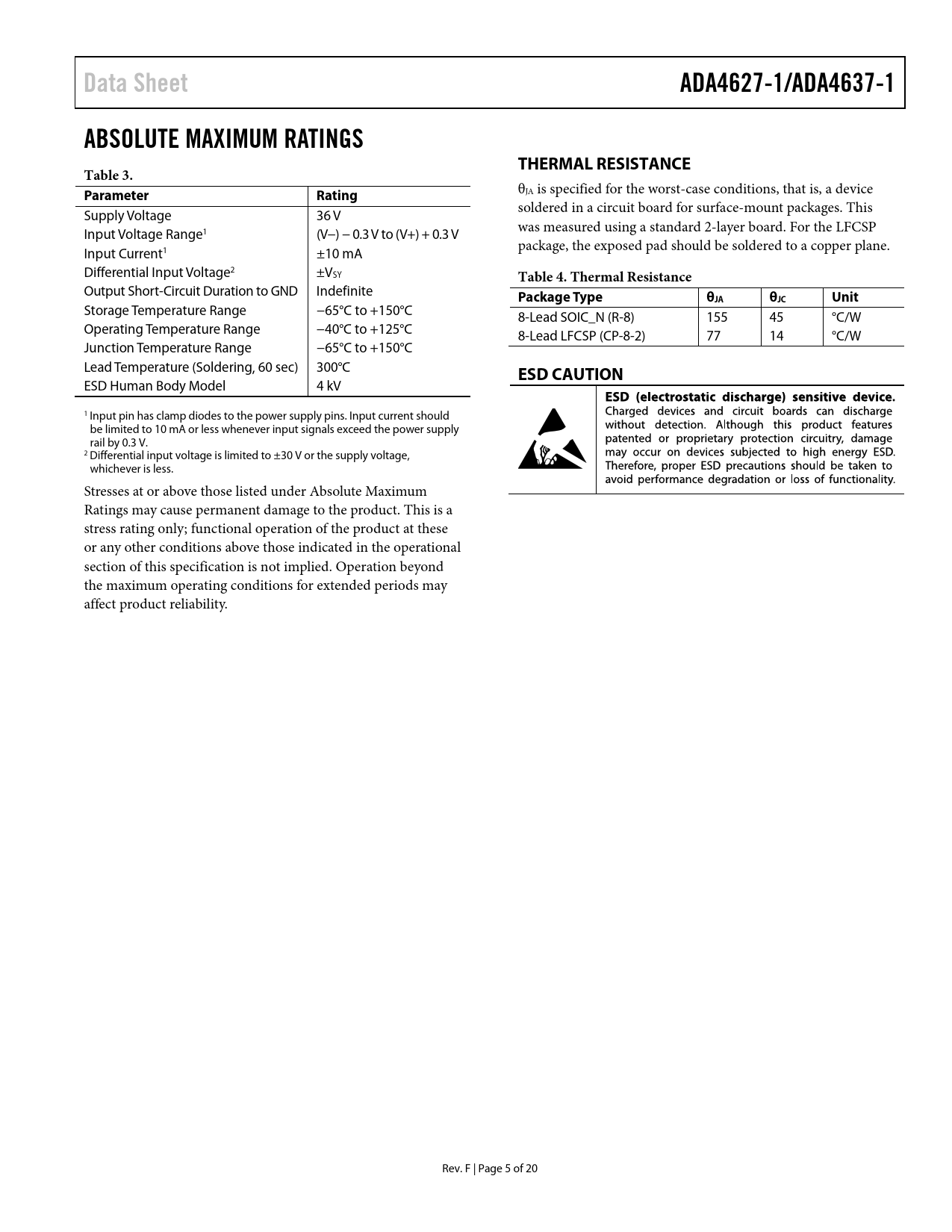

Data Sheet. ADA4627-1/ADA4637-1. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADA4627-1/ADA4637-1 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 36 V soldered in a circuit board for surface-mount packages. This Input Voltage Range1 (V−) − 0.3 V to (V+) + 0.3 V was measured using a standard 2-layer board. For the LFCSP Input Current1 ±10 mA package, the exposed pad should be soldered to a copper plane. Differential Input Voltage2 ±VSY
Table 4. Thermal Resistance
Output Short-Circuit Duration to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC_N (R-8) 155 45 °C/W Operating Temperature Range −40°C to +125°C 8-Lead LFCSP (CP-8-2) 77 14 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C
ESD CAUTION
ESD Human Body Model 4 kV 1 Input pin has clamp diodes to the power supply pins. Input current should be limited to 10 mA or less whenever input signals exceed the power supply rail by 0.3 V. 2 Differential input voltage is limited to ±30 V or the supply voltage, whichever is less. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. F | Page 5 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—30 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT VOLTAGE RANGE INPUT OFFSET VOLTAGE ADJUST RANGE INPUT BIAS CURRENT NOISE CONSIDERATIONS THD + N MEASUREMENTS PRINTED CIRCUIT BOARD LAYOUT, BIAS CURRENT, AND BYPASSING OUTPUT PHASE REVERSAL DECOMPENSATED OP AMPS DRIVING CAPACITIVE LOADS OUTLINE DIMENSIONS ORDERING GUIDE
