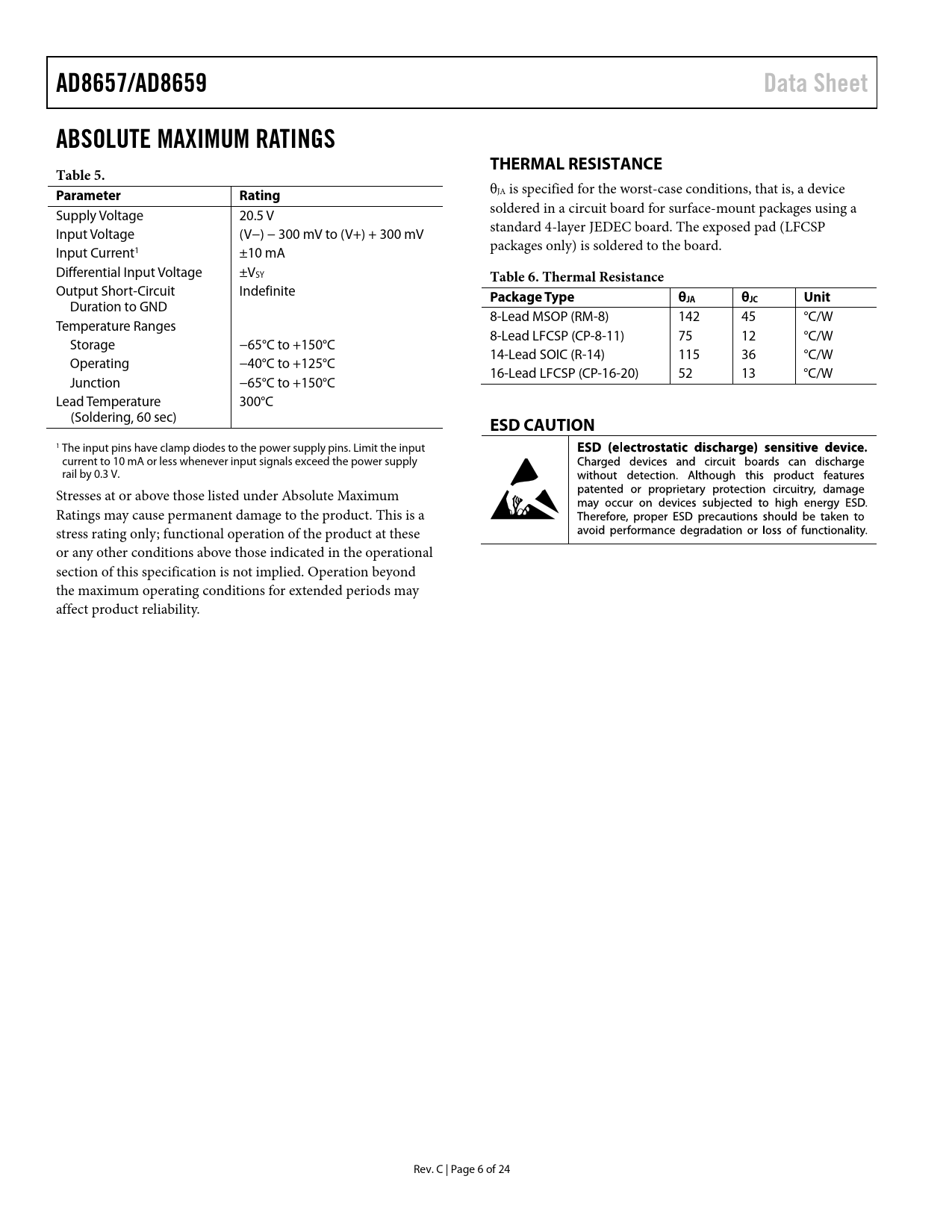

Datasheet AD8657, AD8659 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 22 μA, RRIO, CMOS, 18 V Quad Operational Amplifier |
| Seiten / Seite | 24 / 6 — AD8657/AD8659. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. … |
| Revision | C |
| Dateiformat / Größe | PDF / 867 Kb |
| Dokumentensprache | Englisch |
AD8657/AD8659. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 5. Parameter. Rating. Table 6. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8657/AD8659 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 5. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 20.5 V soldered in a circuit board for surface-mount packages using a Input Voltage (V−) − 300 mV to (V+) + 300 mV standard 4-layer JEDEC board. The exposed pad (LFCSP Input Current1 ±10 mA packages only) is soldered to the board. Differential Input Voltage ±VSY
Table 6. Thermal Resistance
Output Short-Circuit Indefinite
Package Type θ
Duration to GND
JA θJC Unit
8-Lead MSOP (RM-8) 142 45 °C/W Temperature Ranges 8-Lead LFCSP (CP-8-11) 75 12 °C/W Storage −65°C to +150°C 14-Lead SOIC (R-14) 115 36 °C/W Operating −40°C to +125°C 16-Lead LFCSP (CP-16-20) 52 13 °C/W Junction −65°C to +150°C Lead Temperature 300°C (Soldering, 60 sec)
ESD CAUTION
1 The input pins have clamp diodes to the power supply pins. Limit the input current to 10 mA or less whenever input signals exceed the power supply rail by 0.3 V. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 6 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAMS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—18 V OPERATION ELECTRICAL CHARACTERISTICS—10 V OPERATION ELECTRICAL CHARACTERISTICS—2.7 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT STAGE OUTPUT STAGE RAIL TO RAIL RESISTIVE LOAD Inverting Op Amp Configuration Noninverting Op Amp Configuration COMPARATOR OPERATION—AD8657 EMI REJECTION RATIO 4 mA TO 20 mA PROCESS CONTROL CURRENT LOOP TRANSMITTER—AD8657 OUTLINE DIMENSIONS ORDERING GUIDE
