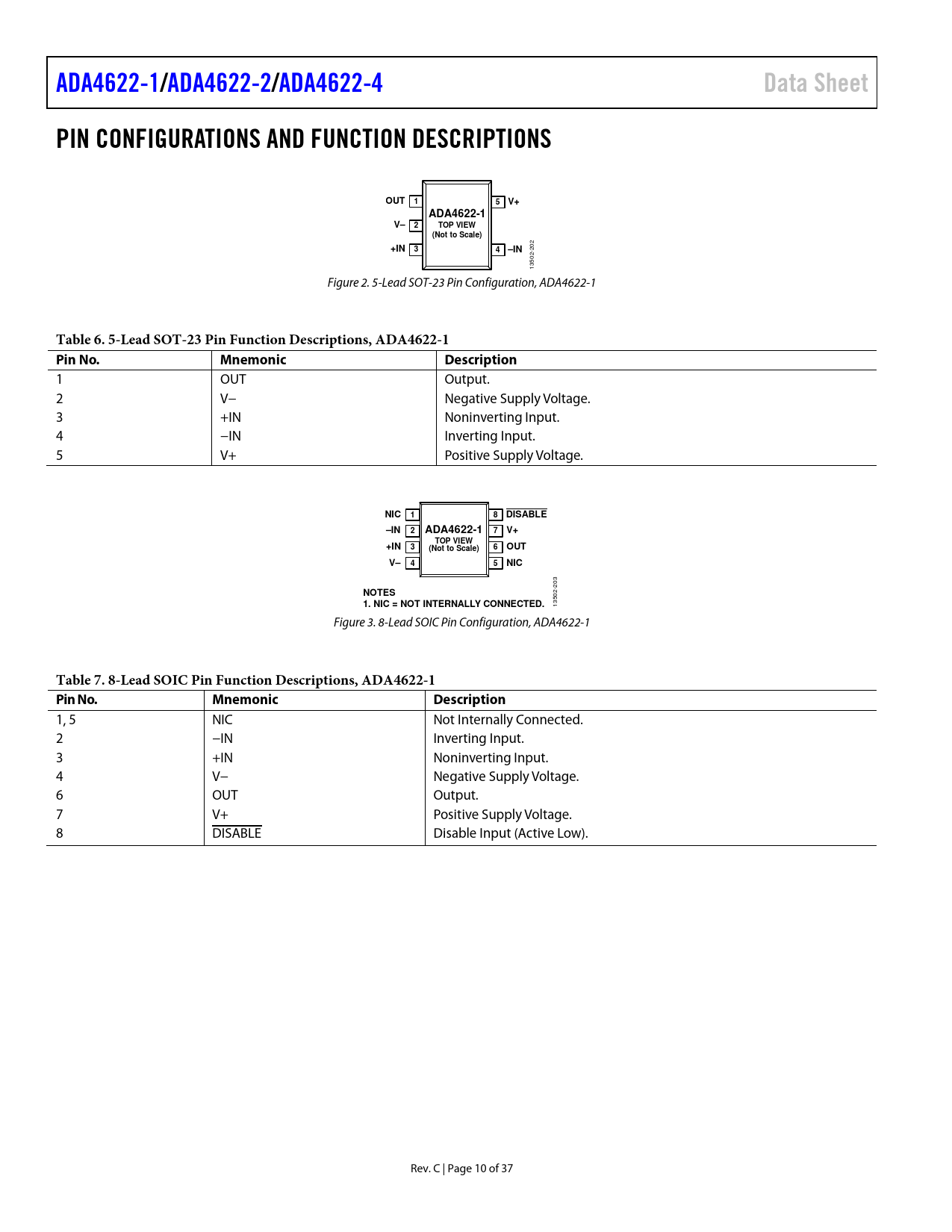

ADA4622-1/. ADA4622-2/. ADA4622-4. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. OUT. ADA4622-1. TOP VIEW. (Not to Scale)
Textversion des Dokuments
ADA4622-1/ ADA4622-2/ ADA4622-4 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS OUT 1 5 V+ ADA4622-1 V– 2 TOP VIEW (Not to Scale) +IN 3 4 –IN
202 13502- Figure 2. 5-Lead SOT-23 Pin Configuration, ADA4622-1
Table 6. 5-Lead SOT-23 Pin Function Descriptions, ADA4622-1 Pin No. Mnemonic Description
1 OUT Output. 2 V− Negative Supply Voltage. 3 +IN Noninverting Input. 4 −IN Inverting Input. 5 V+ Positive Supply Voltage.
NIC 1 8 DISABLE –IN 2 ADA4622-1 7 V+ TOP VIEW +IN 3 6 (Not to Scale) OUT V– 4 5 NIC
203
NOTES 1. NIC = NOT INTERNALLY CONNECTED.
13502- Figure 3. 8-Lead SOIC Pin Configuration, ADA4622-1
Table 7. 8-Lead SOIC Pin Function Descriptions, ADA4622-1 Pin No. Mnemonic Description
1, 5 NIC Not Internally Connected. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 V− Negative Supply Voltage. 6 OUT Output. 7 V+ Positive Supply Voltage. 8 DISABLE Disable Input (Active Low). Rev. C | Page 10 of 37 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, VSY = ±15 V ELECTRICAL CHARACTERISTICS, VSY = ±5 V ELECTRICAL CHARACTERISTICS, VSY = 5 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT CHARACTERISTICS Input Overvoltage Protection EMI Rejection Ratio OUTPUT CHARACTERISTICS Capacitive Load Drive Capability SHUTDOWN OPERATION APPLICATIONS INFORMATION RECOMMENDED POWER SOLUTION MAXIMUM POWER DISSIPATION SECOND-ORDER LOW-PASS FILTER WIDEBAND PHOTODIODE PREAMPLIFIER PEAK DETECTOR MULTIPLEXING INPUTS FULL WAVE RECTIFIER OUTLINE DIMENSIONS ORDERING GUIDE
