Datasheet MIC920 (Micrel)
| Hersteller | Micrel |
| Beschreibung | 80MHz Low-Power SC-70 Op Amp |
| Seiten / Seite | 11 / 1 — MIC920. 80MHz Low-Power SC-70 Op Amp. General Description. Features. … |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |

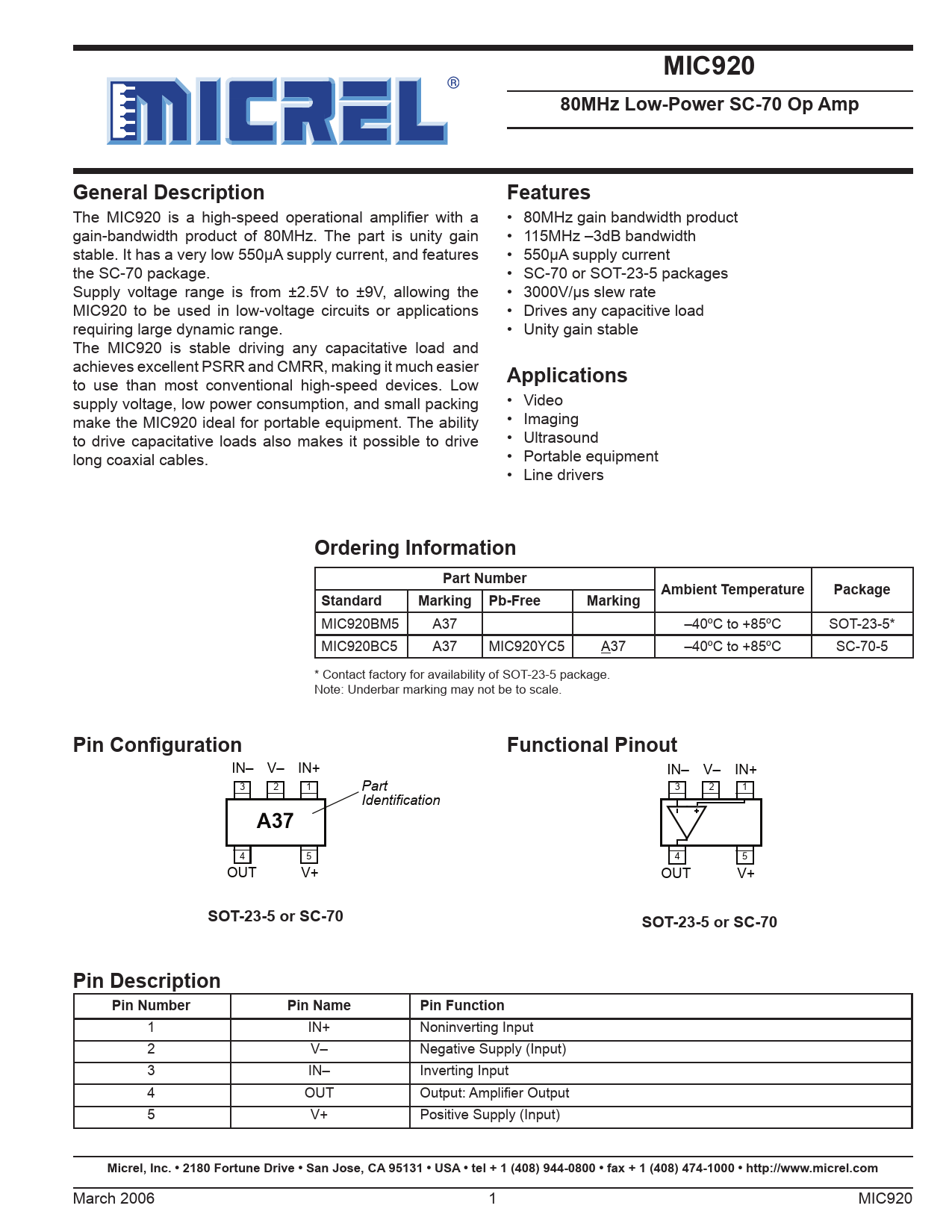

MIC920. 80MHz Low-Power SC-70 Op Amp. General Description. Features. Applications. Ordering Information. Part Number
Textversion des Dokuments
MIC920 Micrel, Inc.
MIC920 80MHz Low-Power SC-70 Op Amp General Description Features
The MIC920 is a high-speed operational amplifier with a • 80MHz gain bandwidth product gain-bandwidth product of 80MHz. The part is unity gain • 115MHz –3dB bandwidth stable. It has a very low 550µA supply current, and features • 550µA supply current the SC-70 package. • SC-70 or SOT-23-5 packages Supply voltage range is from ±2.5V to ±9V, allowing the • 3000V/µs slew rate MIC920 to be used in low-voltage circuits or applications • Drives any capacitive load requiring large dynamic range. • Unity gain stable The MIC920 is stable driving any capacitative load and achieves excellent PSRR and CMRR, making it much easier to use than most conventional high-speed devices. Low
Applications
supply voltage, low power consumption, and small packing • Video make the MIC920 ideal for portable equipment. The ability • Imaging to drive capacitative loads also makes it possible to drive • Ultrasound long coaxial cables. • Portable equipment • Line drivers
Ordering Information Part Number Ambient Temperature Package Standard Marking Pb-Free Marking
MIC920BM5 A37 –40ºC to +85ºC SOT-23-5* MIC920BC5 A37 MIC920YC5 A37 –40ºC to +85ºC SC-70-5 * Contact factory for availability of SOT-23-5 package. Note: Underbar marking may not be to scale.
Pin Configuration Functional Pinout
IN– V– IN+ IN– V– IN+ 3 2 1 Part 3 2 1 Identification
A37
4 5 4 5 OUT V+ OUT V+
SOT-23-5 or SC-70 SOT-23-5 or SC-70 Pin Description Pin Number Pin Name Pin Function
1 IN+ Noninverting Input 2 V– Negative Supply (Input) 3 IN– Inverting Input 4 OUT Output: Amplifier Output 5 V+ Positive Supply (Input)
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
March 2006 1 MIC920
MIC920 80MHz Low-Power SC-70 Op Amp General Description Features
The MIC920 is a high-speed operational amplifier with a • 80MHz gain bandwidth product gain-bandwidth product of 80MHz. The part is unity gain • 115MHz –3dB bandwidth stable. It has a very low 550µA supply current, and features • 550µA supply current the SC-70 package. • SC-70 or SOT-23-5 packages Supply voltage range is from ±2.5V to ±9V, allowing the • 3000V/µs slew rate MIC920 to be used in low-voltage circuits or applications • Drives any capacitive load requiring large dynamic range. • Unity gain stable The MIC920 is stable driving any capacitative load and achieves excellent PSRR and CMRR, making it much easier to use than most conventional high-speed devices. Low
Applications
supply voltage, low power consumption, and small packing • Video make the MIC920 ideal for portable equipment. The ability • Imaging to drive capacitative loads also makes it possible to drive • Ultrasound long coaxial cables. • Portable equipment • Line drivers
Ordering Information Part Number Ambient Temperature Package Standard Marking Pb-Free Marking
MIC920BM5 A37 –40ºC to +85ºC SOT-23-5* MIC920BC5 A37 MIC920YC5 A37 –40ºC to +85ºC SC-70-5 * Contact factory for availability of SOT-23-5 package. Note: Underbar marking may not be to scale.
Pin Configuration Functional Pinout
IN– V– IN+ IN– V– IN+ 3 2 1 Part 3 2 1 Identification
A37
4 5 4 5 OUT V+ OUT V+
SOT-23-5 or SC-70 SOT-23-5 or SC-70 Pin Description Pin Number Pin Name Pin Function
1 IN+ Noninverting Input 2 V– Negative Supply (Input) 3 IN– Inverting Input 4 OUT Output: Amplifier Output 5 V+ Positive Supply (Input)
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
March 2006 1 MIC920
