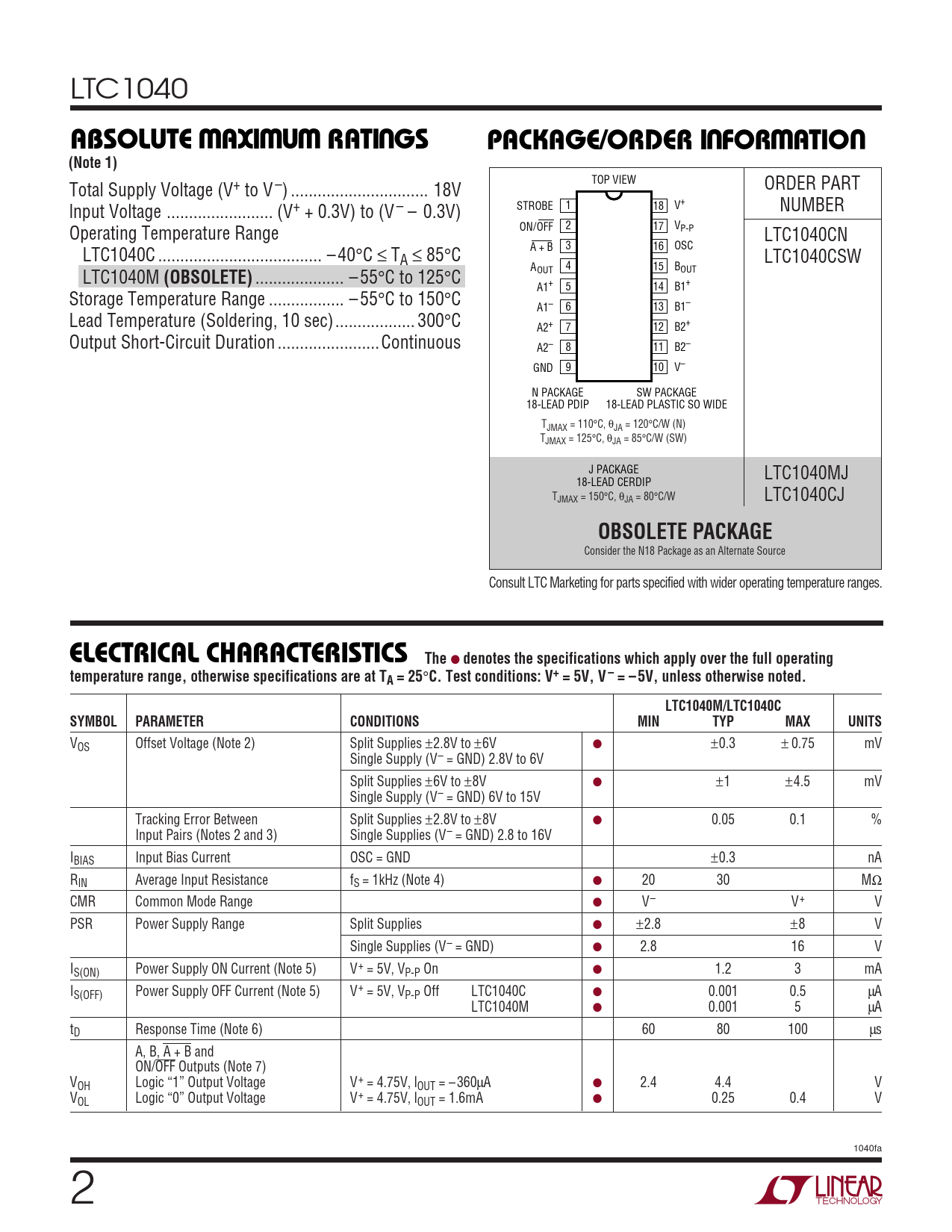

LTC1040
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
TOP VIEW ORDER PART Total Supply Voltage (V+ to V –) ... 18V STROBE 1 18 V+ NUMBER lnput Voltage .. (V+ + 0.3V) to (V – – 0.3V) ON/OFF 2 17 VP-P Operating Temperature Range LTC1040CN A + B 3 16 OSC LTC1040C ... – 40°C ≤ TA ≤ 85°C LTC1040CSW A 4 15 OUT BOUT LTC1040M
(OBSOLETE)
.. – 55°C to 125°C A1+ 5 14 B1+ Storage Temperature Range ... – 55°C to 150°C A1– 6 13 B1– Lead Temperature (Soldering, 10 sec).. 300°C A2+ 7 12 B2+ Output Short-Circuit Duration ... Continuous A2– 8 11 B2– GND 9 10 V– N PACKAGE SW PACKAGE 18-LEAD PDIP 18-LEAD PLASTIC SO WIDE TJMAX = 110°C, θJA = 120°C/W (N) TJMAX = 125°C, θJA = 85°C/W (SW) J PACKAGE LTC1040MJ 18-LEAD CERDIP TJMAX = 150°C, θJA = 80°C/W LTC1040CJ
OBSOLETE PACKAGE
Consider the N18 Package as an Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. Test conditions: V+ = 5V, V– = – 5V, unless otherwise noted. LTC1040M/LTC1040C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Offset Voltage (Note 2) Split Supplies ±2.8V to ±6V ● ±0.3 ± 0.75 mV Single Supply (V– = GND) 2.8V to 6V Split Supplies ±6V to ±8V ● ±1 ±4.5 mV Single Supply (V– = GND) 6V to 15V Tracking Error Between Split Supplies ±2.8V to ±8V ● 0.05 0.1 % Input Pairs (Notes 2 and 3) Single Supplies (V– = GND) 2.8 to 16V IBIAS Input Bias Current OSC = GND ±0.3 nA RIN Average Input Resistance fS = 1kHz (Note 4) ● 20 30 MΩ CMR Common Mode Range ● V– V+ V PSR Power Supply Range Split Supplies ● ±2.8 ±8 V Single Supplies (V– = GND) ● 2.8 16 V IS(ON) Power Supply ON Current (Note 5) V+ = 5V, VP-P On ● 1.2 3 mA IS(OFF) Power Supply OFF Current (Note 5) V+ = 5V, VP-P Off LTC1040C ● 0.001 0.5 µA LTC1040M ● 0.001 5 µA tD Response Time (Note 6) 60 80 100 µs A, B, A + B and ON/OFF Outputs (Note 7) VOH Logic “1” Output Voltage V+ = 4.75V, lOUT = – 360µA ● 2.4 4.4 V VOL Logic “0” Output Voltage V+ = 4.75V, lOUT = 1.6mA ● 0.25 0.4 V 1040fa 2
