LT1715

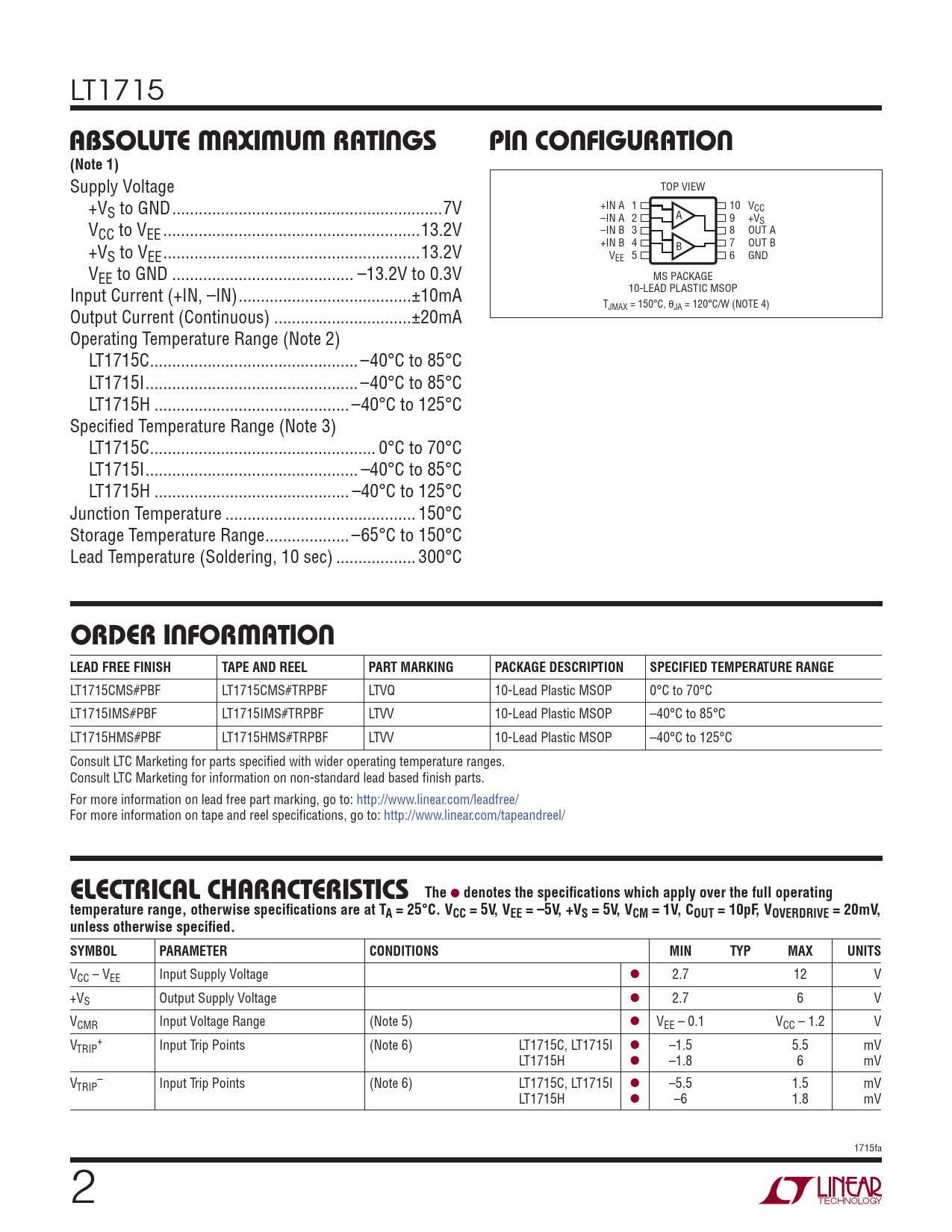

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage TOP VIEW +V +IN A 1 10 V S to GND ...7V CC –IN A 2 A 9 +VS VCC to VEE ..13.2V –IN B 3 8 OUT A +IN B 4 7 OUT B +V B S to VEE ..13.2V V 5 EE 6 GND VEE to GND ... –13.2V to 0.3V MS PACKAGE Input Current (+IN, –IN) ...±10mA 10-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 120°C/W (NOTE 4) Output Current (Continuous) ...±20mA Operating Temperature Range (Note 2) LT1715C ... –40°C to 85°C LT1715I .. –40°C to 85°C LT1715H .. –40°C to 125°C Specifi ed Temperature Range (Note 3) LT1715C ... 0°C to 70°C LT1715I .. –40°C to 85°C LT1715H .. –40°C to 125°C Junction Temperature ... 150°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1715CMS#PBF LT1715CMS#TRPBF LTVQ 10-Lead Plastic MSOP 0°C to 70°C LT1715IMS#PBF LT1715IMS#TRPBF LTVV 10-Lead Plastic MSOP –40°C to 85°C LT1715HMS#PBF LT1715HMS#TRPBF LTVV 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 5V, VEE = –5V, +VS = 5V, VCM = 1V, COUT = 10pF, VOVERDRIVE = 20mV, unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC – VEE Input Supply Voltage l 2.7 12 V +VS Output Supply Voltage l 2.7 6 V VCMR Input Voltage Range (Note 5) l VEE – 0.1 VCC – 1.2 V V + TRIP Input Trip Points (Note 6) LT1715C, LT1715I l –1.5 5.5 mV LT1715H l –1.8 6 mV V – TRIP Input Trip Points (Note 6) LT1715C, LT1715I l –5.5 1.5 mV LT1715H l –6 1.8 mV 1715fa 2
