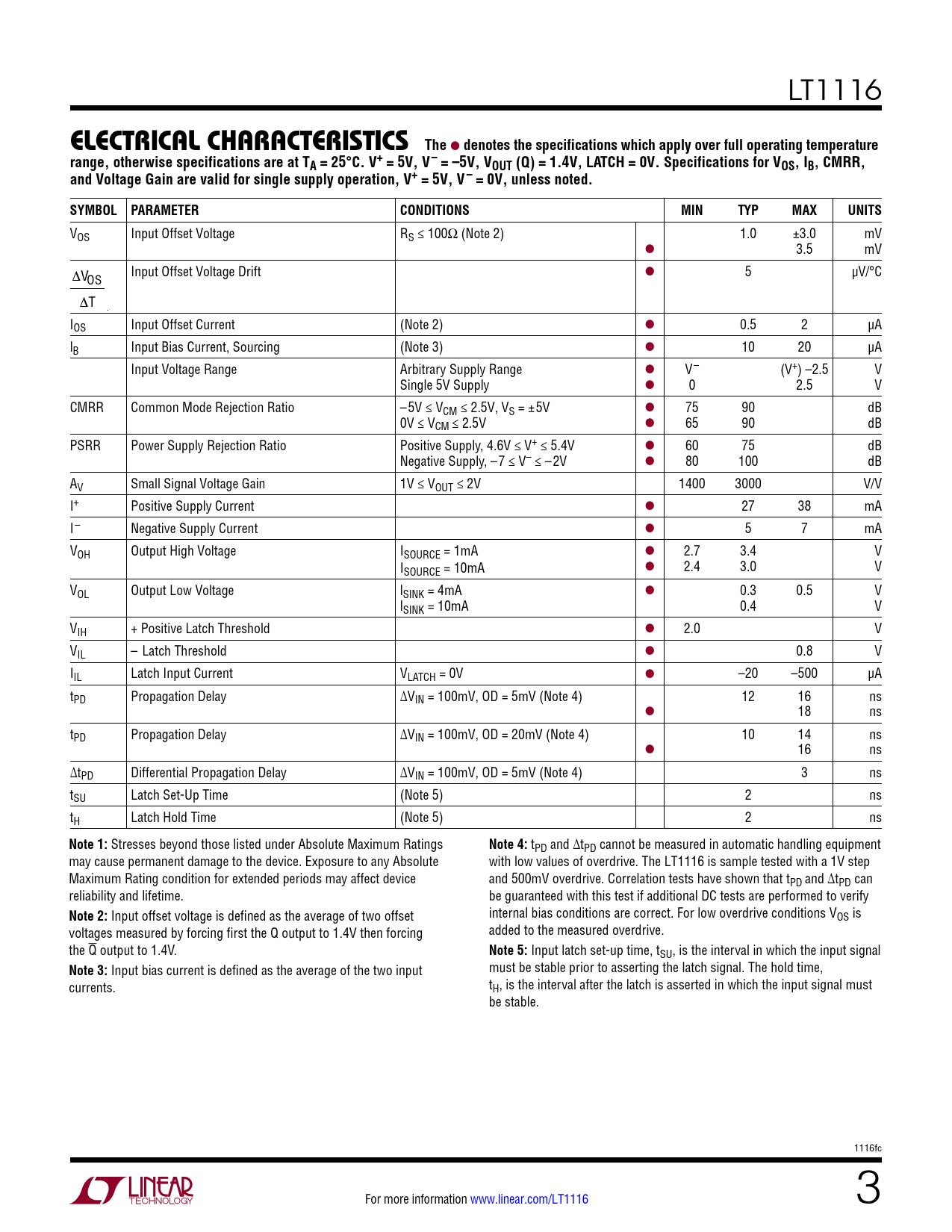

elecTrical characTerisTics. The. denotes the specifications which apply over full operating temperature
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1116
elecTrical characTerisTics The
l
denotes the specifications which apply over full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 5V, V– = –5V, VOUT (Q) = 1.4V, LATCH = 0V. Specifications for VOS, IB, CMRR, and Voltage Gain are valid for single supply operation, V+ = 5V, V– = 0V, unless noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage RS ≤ 100Ω (Note 2) 1.0 ±3.0 mV l 3.5 mV ΔV Input Offset Voltage Drift l 5 µV/°C OS ΔT IOS Input Offset Current (Note 2) l 0.5 2 µA lB Input Bias Current, Sourcing (Note 3) l 10 20 µA Input Voltage Range Arbitrary Supply Range l V– (V+) –2.5 V Single 5V Supply l 0 2.5 V CMRR Common Mode Rejection Ratio –5V ≤ VCM ≤ 2.5V, VS = ±5V l 75 90 dB 0V ≤ VCM ≤ 2.5V l 65 90 dB PSRR Power Supply Rejection Ratio Positive Supply, 4.6V ≤ V+ ≤ 5.4V l 60 75 dB Negative Supply, –7 ≤ V– ≤ –2V l 80 100 dB AV Small Signal Voltage Gain 1V ≤ VOUT ≤ 2V 1400 3000 V/V I+ Positive Supply Current l 27 38 mA I– Negative Supply Current l 5 7 mA VOH Output High Voltage ISOURCE = 1mA l 2.7 3.4 V ISOURCE = 10mA l 2.4 3.0 V VOL Output Low Voltage lSINK = 4mA l 0.3 0.5 V lSINK = 10mA 0.4 V VIH + Positive Latch Threshold l 2.0 V VIL – Latch Threshold l 0.8 V IIL Latch Input Current VLATCH = 0V l –20 –500 µA tPD Propagation Delay ∆VIN = 100mV, OD = 5mV (Note 4) 12 16 ns l 18 ns tPD Propagation Delay ∆VIN = 100mV, OD = 20mV (Note 4) 10 14 ns l 16 ns ∆tPD Differential Propagation Delay ∆VIN = 100mV, OD = 5mV (Note 4) 3 ns tSU Latch Set-Up Time (Note 5) 2 ns tH Latch Hold Time (Note 5) 2 ns
