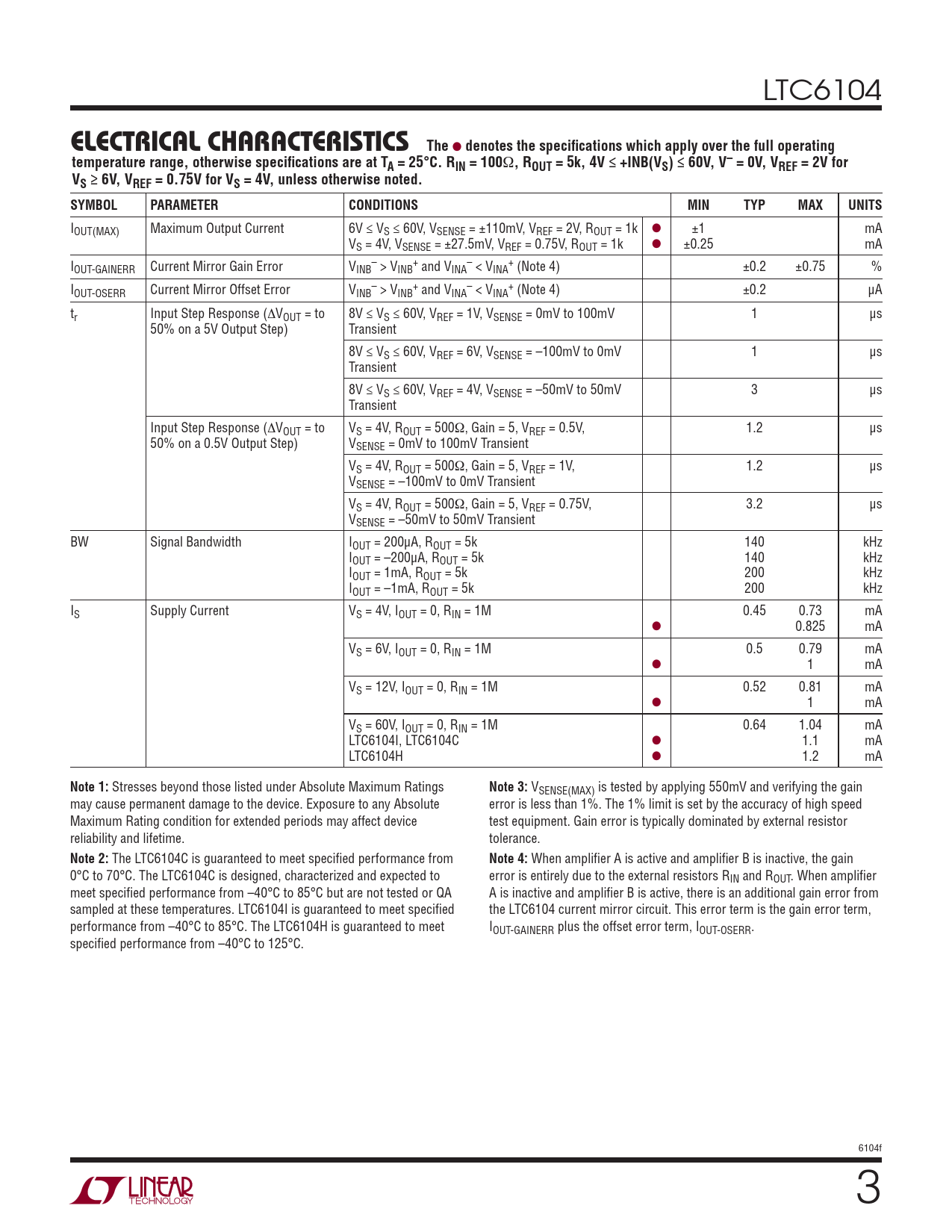

LTC6104
ELECTRICAL CHARACTERISTICS The

denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. RIN = 100
Ω
, ROUT = 5k, 4V ≤ +INB(VS) ≤ 60V, V– = 0V, VREF = 2V for VS ≥ 6V, VREF = 0.75V for VS = 4V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IOUT(MAX) Maximum Output Current 6V ≤ VS ≤ 60V, VSENSE = ±110mV, VREF = 2V, ROUT = 1k ● ±1 mA VS = 4V, VSENSE = ±27.5mV, VREF = 0.75V, ROUT = 1k ● ±0.25 mA I – + – + OUT-GAINERR Current Mirror Gain Error VINB > VINB and VINA < VINA (Note 4) ±0.2 ±0.75 % I – + – + OUT-OSERR Current Mirror Offset Error VINB > VINB and VINA < VINA (Note 4) ±0.2 µA tr Input Step Response (ΔVOUT = to 8V ≤ VS ≤ 60V, VREF = 1V, VSENSE = 0mV to 100mV 1 µs 50% on a 5V Output Step) Transient 8V ≤ VS ≤ 60V, VREF = 6V, VSENSE = –100mV to 0mV 1 µs Transient 8V ≤ VS ≤ 60V, VREF = 4V, VSENSE = –50mV to 50mV 3 µs Transient Input Step Response (ΔVOUT = to VS = 4V, ROUT = 500Ω, Gain = 5, VREF = 0.5V, 1.2 µs 50% on a 0.5V Output Step) VSENSE = 0mV to 100mV Transient VS = 4V, ROUT = 500Ω, Gain = 5, VREF = 1V, 1.2 µs VSENSE = –100mV to 0mV Transient VS = 4V, ROUT = 500Ω, Gain = 5, VREF = 0.75V, 3.2 µs VSENSE = –50mV to 50mV Transient BW Signal Bandwidth IOUT = 200µA, ROUT = 5k 140 kHz IOUT = –200µA, ROUT = 5k 140 kHz IOUT = 1mA, ROUT = 5k 200 kHz IOUT = –1mA, ROUT = 5k 200 kHz IS Supply Current VS = 4V, IOUT = 0, RIN = 1M 0.45 0.73 mA ● 0.825 mA VS = 6V, IOUT = 0, RIN = 1M 0.5 0.79 mA ● 1 mA VS = 12V, IOUT = 0, RIN = 1M 0.52 0.81 mA ● 1 mA VS = 60V, IOUT = 0, RIN = 1M 0.64 1.04 mA LTC6104I, LTC6104C ● 1.1 mA LTC6104H ● 1.2 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
VSENSE(MAX) is tested by applying 550mV and verifying the gain may cause permanent damage to the device. Exposure to any Absolute error is less than 1%. The 1% limit is set by the accuracy of high speed Maximum Rating condition for extended periods may affect device test equipment. Gain error is typically dominated by external resistor reliability and lifetime. tolerance.
Note 2:
The LTC6104C is guaranteed to meet specifi ed performance from
Note 4:
When amplifi er A is active and amplifi er B is inactive, the gain 0°C to 70°C. The LTC6104C is designed, characterized and expected to error is entirely due to the external resistors RIN and ROUT. When amplifi er meet specifi ed performance from –40°C to 85°C but are not tested or QA A is inactive and amplifi er B is active, there is an additional gain error from sampled at these temperatures. LTC6104I is guaranteed to meet specifi ed the LTC6104 current mirror circuit. This error term is the gain error term, performance from –40°C to 85°C. The LTC6104H is guaranteed to meet IOUT-GAINERR plus the offset error term, IOUT-OSERR. specifi ed performance from –40°C to 125°C. 6104f 3
