NCS20071, NCV20071, NCS20072, NCV20072, NCS20074, NCV20074. ELECTRICAL CHARACTERISTICS AT VS = 10 V. Parameter. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 10 link to page 10 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12

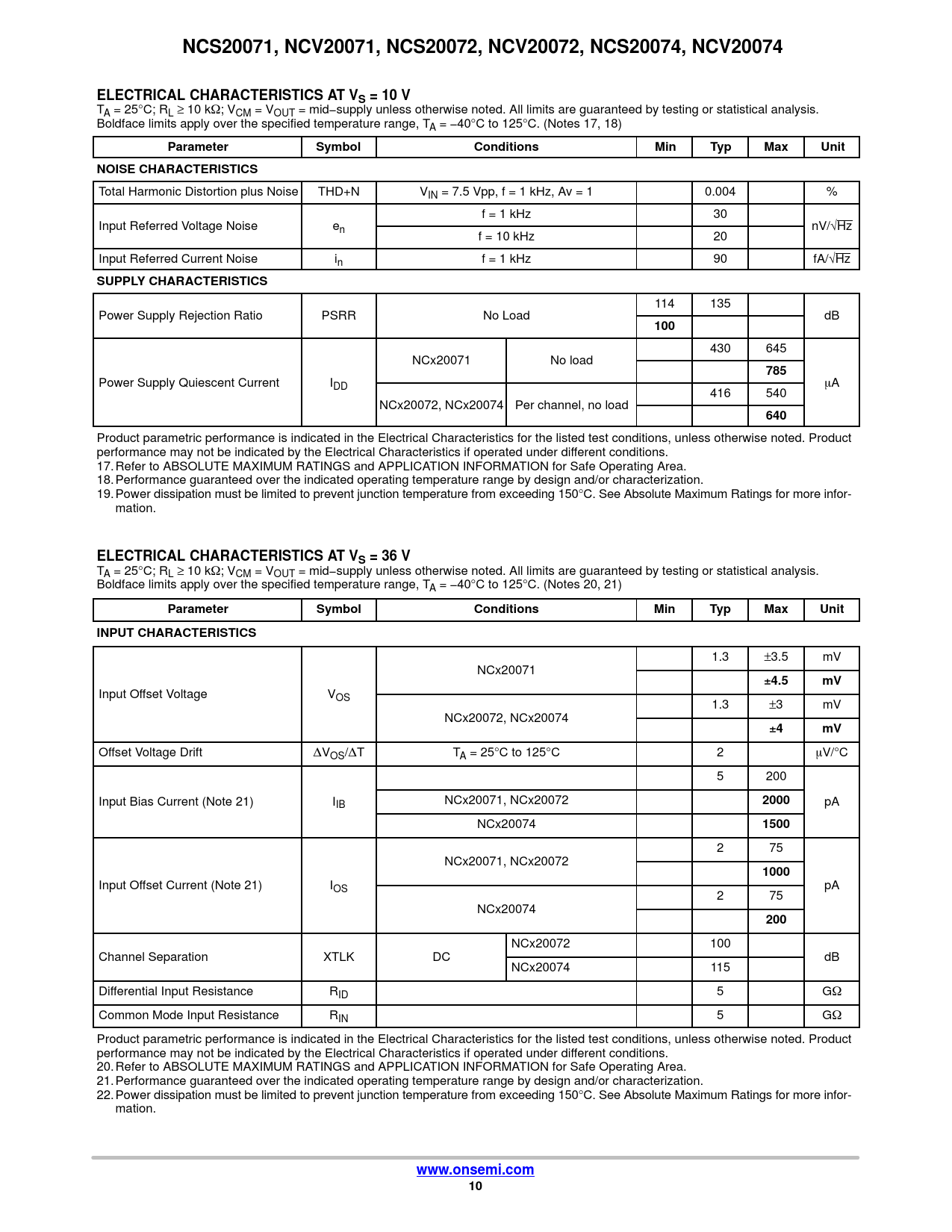

NCS20071, NCV20071, NCS20072, NCV20072, NCS20074, NCV20074 ELECTRICAL CHARACTERISTICS AT VS = 10 V
TA = 25°C; RL ≥ 10 kW; VCM = VOUT = mid−supply unless otherwise noted. All limits are guaranteed by testing or statistical analysis. Boldface limits apply over the specified temperature range, TA = −40°C to 125°C. (Notes 17, 18)
Parameter Symbol Conditions Min Typ Max Unit NOISE CHARACTERISTICS
Total Harmonic Distortion plus Noise THD+N VIN = 7.5 Vpp, f = 1 kHz, Av = 1 0.004 % f = 1 kHz 30 Input Referred Voltage Noise en nV/√Hz f = 10 kHz 20 Input Referred Current Noise in f = 1 kHz 90 fA/√Hz
SUPPLY CHARACTERISTICS
114 135 Power Supply Rejection Ratio PSRR No Load dB
100
430 645 NCx20071 No load
785
Power Supply Quiescent Current IDD mA 416 540 NCx20072, NCx20074 Per channel, no load
640
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 17. Refer to ABSOLUTE MAXIMUM RATINGS and APPLICATION INFORMATION for Safe Operating Area. 18. Performance guaranteed over the indicated operating temperature range by design and/or characterization. 19. Power dissipation must be limited to prevent junction temperature from exceeding 150°C. See Absolute Maximum Ratings for more infor- mation.
ELECTRICAL CHARACTERISTICS AT VS = 36 V
TA = 25°C; RL ≥ 10 kW; VCM = VOUT = mid−supply unless otherwise noted. All limits are guaranteed by testing or statistical analysis. Boldface limits apply over the specified temperature range, TA = −40°C to 125°C. (Notes 20, 21)
Parameter Symbol Conditions Min Typ Max Unit INPUT CHARACTERISTICS
1.3 ±3.5 mV NCx20071 +
4.5 mV
Input Offset Voltage VOS 1.3 ±3 mV NCx20072, NCx20074 +
4 mV
Offset Voltage Drift DVOS/DT TA = 25°C to 125°C 2 mV/°C 5 200 Input Bias Current (Note 21) IIB NCx20071, NCx20072
2000
pA NCx20074
1500
2 75 NCx20071, NCx20072
1000
Input Offset Current (Note 21) IOS pA 2 75 NCx20074
200
NCx20072 100 Channel Separation XTLK DC dB NCx20074 115 Differential Input Resistance RID 5 GW Common Mode Input Resistance RIN 5 GW Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 20. Refer to ABSOLUTE MAXIMUM RATINGS and APPLICATION INFORMATION for Safe Operating Area. 21. Performance guaranteed over the indicated operating temperature range by design and/or characterization. 22. Power dissipation must be limited to prevent junction temperature from exceeding 150°C. See Absolute Maximum Ratings for more infor- mation.
www.onsemi.com 10
NCS20071, NCV20071, NCS20072, NCV20072, NCS20074, NCV20074 ELECTRICAL CHARACTERISTICS AT VS = 10 V
TA = 25°C; RL ≥ 10 kW; VCM = VOUT = mid−supply unless otherwise noted. All limits are guaranteed by testing or statistical analysis. Boldface limits apply over the specified temperature range, TA = −40°C to 125°C. (Notes 17, 18)
Parameter Symbol Conditions Min Typ Max Unit NOISE CHARACTERISTICS
Total Harmonic Distortion plus Noise THD+N VIN = 7.5 Vpp, f = 1 kHz, Av = 1 0.004 % f = 1 kHz 30 Input Referred Voltage Noise en nV/√Hz f = 10 kHz 20 Input Referred Current Noise in f = 1 kHz 90 fA/√Hz
SUPPLY CHARACTERISTICS
114 135 Power Supply Rejection Ratio PSRR No Load dB
100
430 645 NCx20071 No load
785
Power Supply Quiescent Current IDD mA 416 540 NCx20072, NCx20074 Per channel, no load
640
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 17. Refer to ABSOLUTE MAXIMUM RATINGS and APPLICATION INFORMATION for Safe Operating Area. 18. Performance guaranteed over the indicated operating temperature range by design and/or characterization. 19. Power dissipation must be limited to prevent junction temperature from exceeding 150°C. See Absolute Maximum Ratings for more infor- mation.
ELECTRICAL CHARACTERISTICS AT VS = 36 V
TA = 25°C; RL ≥ 10 kW; VCM = VOUT = mid−supply unless otherwise noted. All limits are guaranteed by testing or statistical analysis. Boldface limits apply over the specified temperature range, TA = −40°C to 125°C. (Notes 20, 21)
Parameter Symbol Conditions Min Typ Max Unit INPUT CHARACTERISTICS
1.3 ±3.5 mV NCx20071 +
4.5 mV
Input Offset Voltage VOS 1.3 ±3 mV NCx20072, NCx20074 +
4 mV
Offset Voltage Drift DVOS/DT TA = 25°C to 125°C 2 mV/°C 5 200 Input Bias Current (Note 21) IIB NCx20071, NCx20072
2000
pA NCx20074
1500
2 75 NCx20071, NCx20072
1000
Input Offset Current (Note 21) IOS pA 2 75 NCx20074
200
NCx20072 100 Channel Separation XTLK DC dB NCx20074 115 Differential Input Resistance RID 5 GW Common Mode Input Resistance RIN 5 GW Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 20. Refer to ABSOLUTE MAXIMUM RATINGS and APPLICATION INFORMATION for Safe Operating Area. 21. Performance guaranteed over the indicated operating temperature range by design and/or characterization. 22. Power dissipation must be limited to prevent junction temperature from exceeding 150°C. See Absolute Maximum Ratings for more infor- mation.
www.onsemi.com 10
