Datasheet AD8591, AD8592, AD8594 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | CMOS Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers with Shutdown |
| Seiten / Seite | 16 / 5 — AD8591/AD8592/AD8594. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Revision | B |
| Dateiformat / Größe | PDF / 411 Kb |
| Dokumentensprache | Englisch |

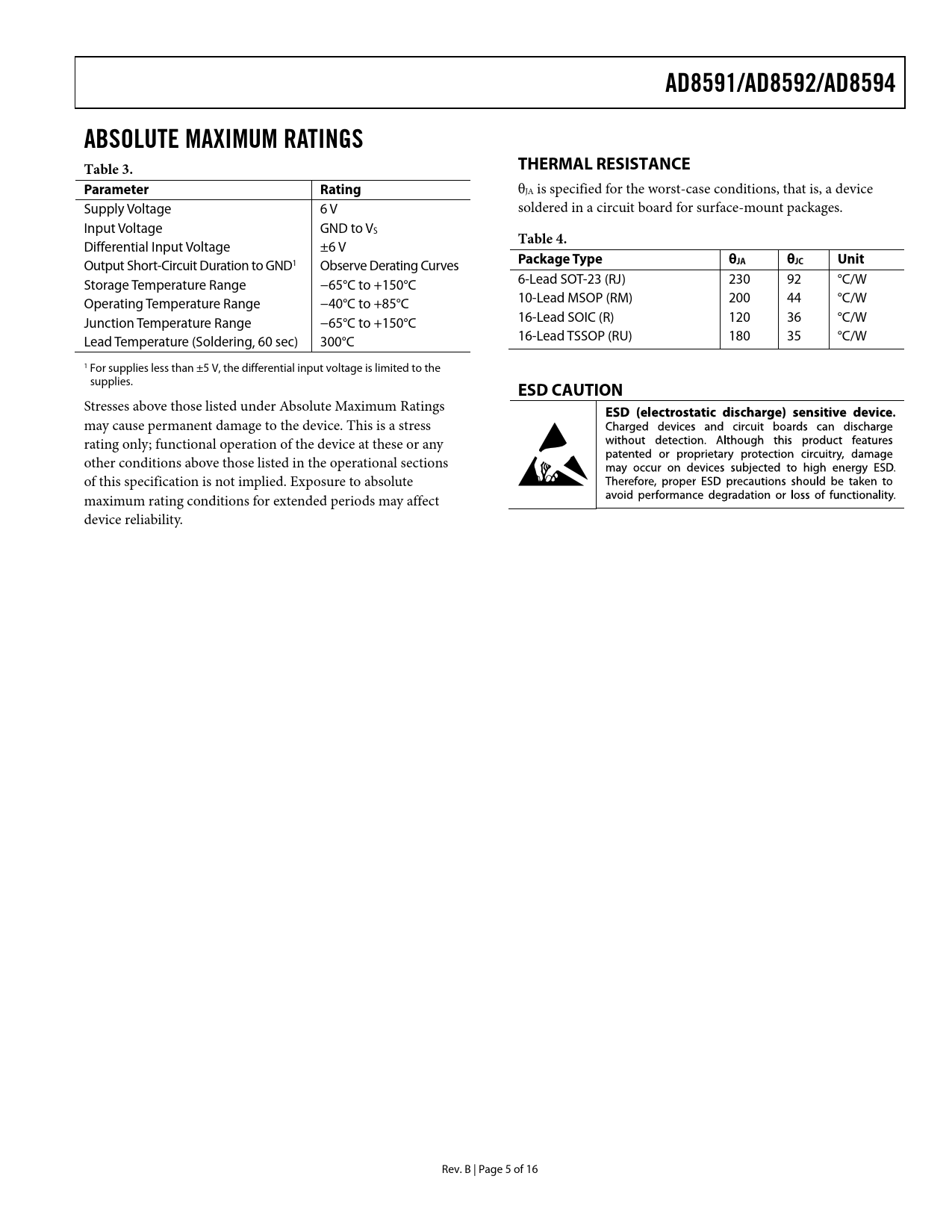

AD8591/AD8592/AD8594. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Package Type. θJC. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5
AD8591/AD8592/AD8594 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for surface-mount packages. Input Voltage GND to VS
Table 4.
Differential Input Voltage ±6 V
Package Type θ
Output Short-Circuit Duration to GND1 Observe Derating Curves
JA θJC Unit
Storage Temperature Range −65°C to +150°C 6-Lead SOT-23 (RJ) 230 92 °C/W Operating Temperature Range −40°C to +85°C 10-Lead MSOP (RM) 200 44 °C/W Junction Temperature Range −65°C to +150°C 16-Lead SOIC (R) 120 36 °C/W Lead Temperature (Soldering, 60 sec) 300°C 16-Lead TSSOP (RU) 180 35 °C/W 1 For supplies less than ±5 V, the differential input voltage is limited to the supplies.
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT VOLTAGE PROTECTION OUTPUT PHASE REVERSAL OUTPUT SHORT-CIRCUIT PROTECTION POWER DISSIPATION CAPACITIVE LOADING PC98-COMPLIANT HEADPHONE/SPEAKER AMPLIFIER A COMBINED MICROPHONE AND SPEAKER AMPLIFIER FOR CELLPHONE AND PORTABLE HEADSETS AN INEXPENSIVE SAMPLE-AND-HOLD CIRCUIT DIRECT ACCESS ARRANGEMENT FOR PCMCIA MODEMS (TELEPHONE LINE INTERFACE) SINGLE-SUPPLY DIFFERENTIAL LINE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
