Datasheet TL601, TL604, TL607, TL610 (Texas Instruments) - 8
| Hersteller | Texas Instruments |
| Beschreibung | P-MOS ANALOG SWITCHES |
| Seiten / Seite | 9 / 8 — MECHANICAL DATA. P (R-PDIP-T8). PLASTIC DUAL-IN-LINE. 0.400 (10,60). … |
| Dateiformat / Größe | PDF / 103 Kb |
| Dokumentensprache | Englisch |
MECHANICAL DATA. P (R-PDIP-T8). PLASTIC DUAL-IN-LINE. 0.400 (10,60). 0.355 (9,02). 0.260 (6,60) 0.240 (6,10). 0.070 (1,78) MAX
Modelllinie für dieses Datenblatt
Textversion des Dokuments

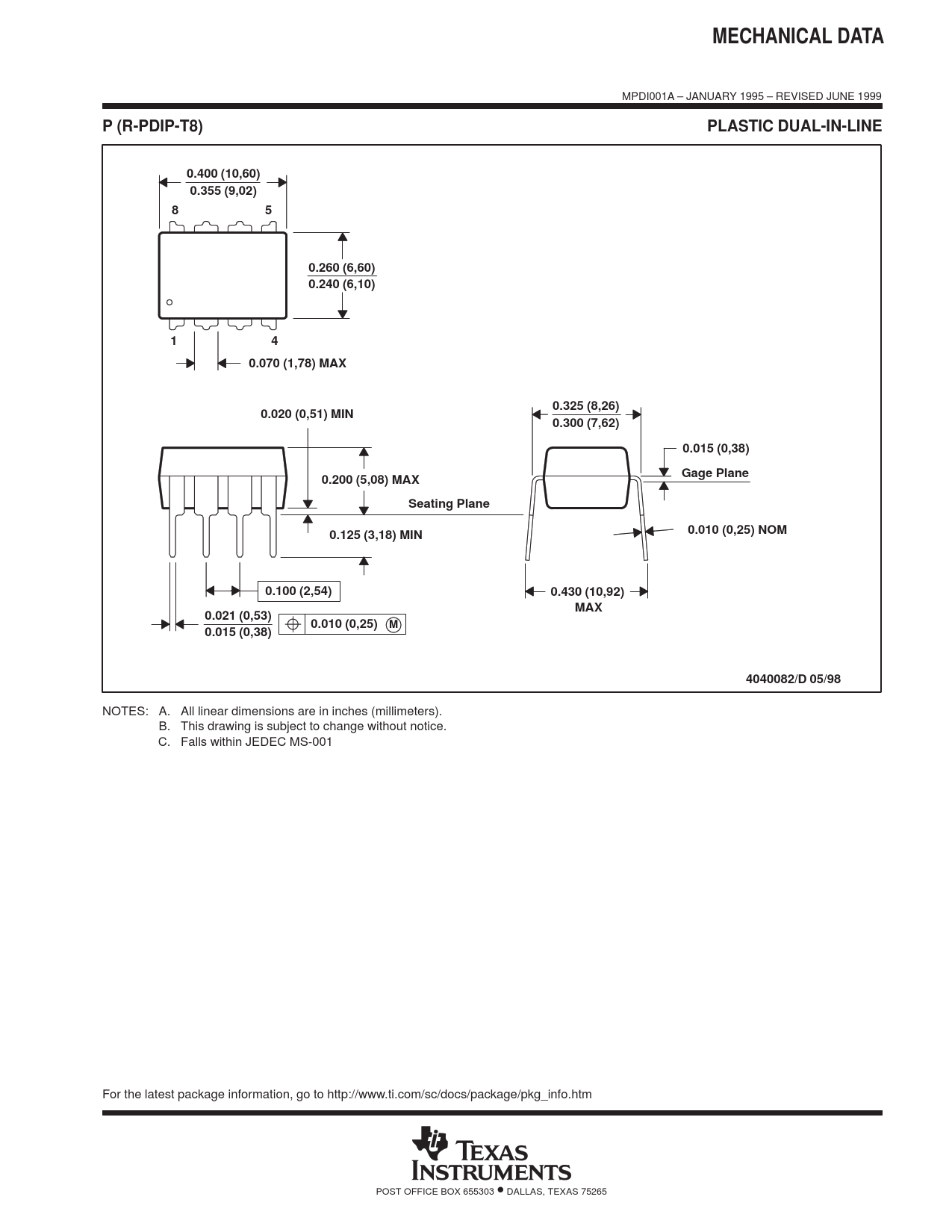

MECHANICAL DATA
MPDI001A – JANUARY 1995 – REVISED JUNE 1999
P (R-PDIP-T8) PLASTIC DUAL-IN-LINE 0.400 (10,60) 0.355 (9,02) 8 5 0.260 (6,60) 0.240 (6,10) 1 4 0.070 (1,78) MAX 0.325 (8,26) 0.020 (0,51) MIN 0.300 (7,62) 0.015 (0,38) Gage Plane 0.200 (5,08) MAX Seating Plane 0.010 (0,25) NOM 0.125 (3,18) MIN 0.100 (2,54) 0.430 (10,92) MAX 0.021 (0,53) 0.010 (0,25) M 0.015 (0,38) 4040082/D 05/98
NOTES: A. All linear dimensions are in inches (millimeters). B. This drawing is subject to change without notice. C. Falls within JEDEC MS-001 For the latest package information, go to http://www.ti.com/sc/docs/package/pkg_info.htm POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MPDI001A – JANUARY 1995 – REVISED JUNE 1999
P (R-PDIP-T8) PLASTIC DUAL-IN-LINE 0.400 (10,60) 0.355 (9,02) 8 5 0.260 (6,60) 0.240 (6,10) 1 4 0.070 (1,78) MAX 0.325 (8,26) 0.020 (0,51) MIN 0.300 (7,62) 0.015 (0,38) Gage Plane 0.200 (5,08) MAX Seating Plane 0.010 (0,25) NOM 0.125 (3,18) MIN 0.100 (2,54) 0.430 (10,92) MAX 0.021 (0,53) 0.010 (0,25) M 0.015 (0,38) 4040082/D 05/98
NOTES: A. All linear dimensions are in inches (millimeters). B. This drawing is subject to change without notice. C. Falls within JEDEC MS-001 For the latest package information, go to http://www.ti.com/sc/docs/package/pkg_info.htm POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
