Datasheet IXER35N120D1 - IXYS IGBT, ISOPLUS247 — Datenblatt

Detaillierte Beschreibung

Manufacturer: IXYS

Description: IGBT, ISOPLUS247

Specifications:

• Collector Emitter Voltage V(br)ceo: 1.2kV
• Collector Emitter Voltage Vces: 2.2 V
• Current Ic Continuous a Max: 50 A
• DC Collector Current: 50 A
• Fall Time tf: 50 ns
• Junction to Case Thermal Resistance A: 0.6°C/W
• Number of Pins: 3
• Operating Temperature Range: -55°C to +150°C

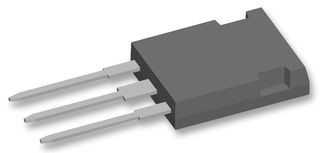

• Package / Case: ISOPLUS-247
• Pin Configuration: Copack (FRD)
• Power Dissipation Max: 200 W
• Power Dissipation: 200 W
• Rise Time: 50 ns
• Termination Type: Through Hole
• Transistor Case Style: ISOPLUS-247
• Transistor Polarity: N Channel
• Transistor Type:
• Voltage Vces: 1.2kV

RoHS: Yes
