Detaillierte Beschreibung

Manufacturer: Toshiba

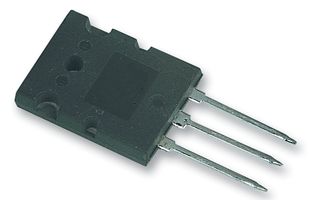

Description: IGBT, 600 V, TO-3P(LH)

Download Data Sheet

Docket:
GT50J325
TOSHIBA Insulated Gate Bipolar Transistor Silicon N Channel IGBT
GT50J325
High Power Switching Applications Fast Switching Applications
· · · The 4th generation Enhancement-mode Fast switching (FS): Operating frequency up to 50 kHz (reference) · High speed: tf = 0.05 µs (typ.) · Low switching loss: Eon = 1.30 mJ (typ.) : Eoff = 1.34 mJ (typ.) · · Low saturation Voltage: VCE (sat) = 2.0 V (typ.) FRD included between emitter and collector Unit: mm

Specifications:

• Transistor Type: IGBT
• DC Collector Current: 50 A
• Collector Emitter Voltage Vces: 2.45 V
• Power Dissipation Max: 240 W
• Collector Emitter Voltage V(br)ceo: 600 V
• Operating Temperature Range: -55°C to +150°C
• Transistor Case Style: TO-3P (LH)
• Current Ic Continuous a Max: 50 A
• Fall Time Typ: 50 ns
• Junction Temperature Tj Max: 150°C
• Junction to Case Thermal Resistance A: 0.521°C/W
• Package / Case: TO-3P (LH)
• Power Dissipation: 240 W
• Power Dissipation Pd: 240 W
• Pulsed Current Icm: 100 A
• Rise Time: 70 ns
• Termination Type: Through Hole
• Transistor Polarity: N Channel
• Voltage Vces: 600 V

RoHS: Yes

Accessories:

• Fischer Elektronik - TF 3 2
• Fischer Elektronik - WLK 5
