Datasheet Wago 770-992 — Datenblatt

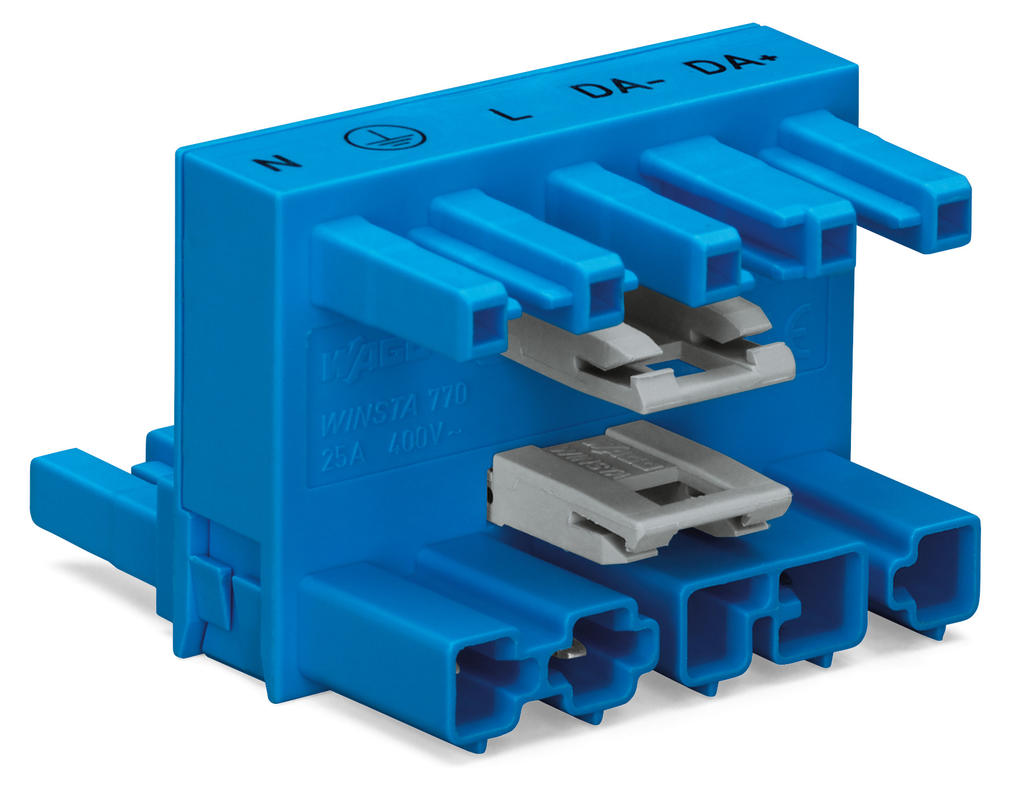

h-distribution connector; 5-pole; Cod. I; 1 input; 2 outputs; outputs on both sides; 2 locking levers
Preise
Detaillierte Beschreibung
Parameter
| Coding | I |
| Color | blue |
| Contact material | Copper or copper alloy, surface-treated |
| Contact type (pluggable connector) | Socket/plug |
| Страна происхождения | DE |
| Degree of protection | IP20 |

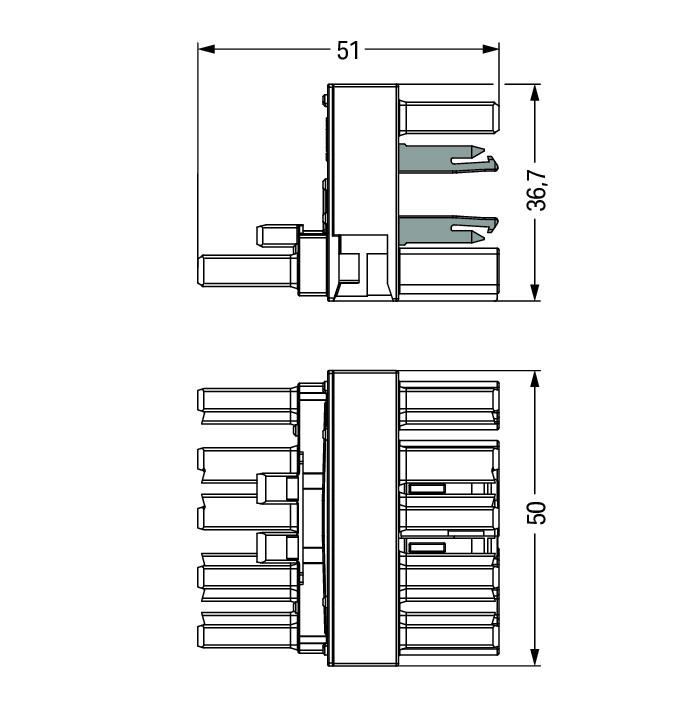

| Depth | 46 mm / 1.811 inch |
| Fire load | 0.625 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4045454706890 |
| Ground function | with preceding GND contact |
| Height | 36.7 mm / 1.445 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Locking lever | yes |
| Locking of plug-in connection | locking lever |
| Marking | N ⏚ L DA- DA+ |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Mismating protection | Yes |
| Number of Poles | 5 |
| Pin spacing | 10 mm (0.394 inch) |
| Potential marking | N ⏚ L DA- DA+ |
| Product Group | 20 (WINSTA) |
| Rated current | 25 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 400 V |
| Retention force of a plug-in connection | when locked: > 80N |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of potentials | 5 |
| Type of distribution connector | h-distribution connector, bi-directional |
| Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Weight | 38.005 g |
| Width | 50 mm / 1.969 inch |
