Datasheet Wago 769-104/000-037 — Datenblatt

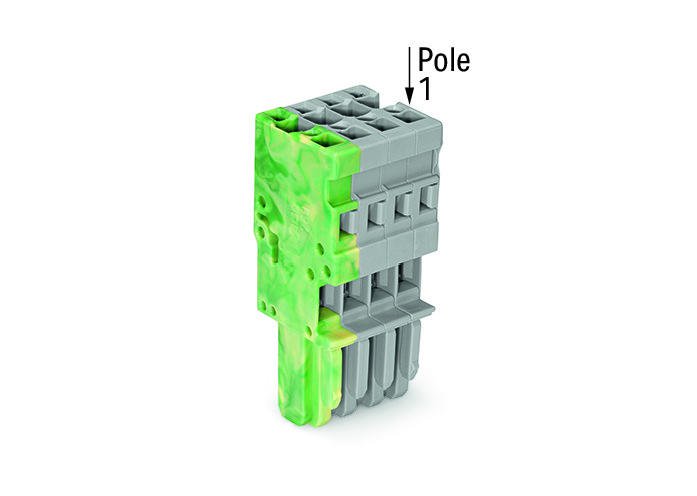

1-conductor female plug; 4 mm²; 4-pole
Preise
Detaillierte Beschreibung
Parameter
| Actuation type | Operating tool |
| Color | green-yellow, gray |
| Connectable conductor materials | Copper Aluminum |
| Connection technology | CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact type (pluggable connector) | Female connector/socket |
| Страна происхождения | DE |
| Depth | 18.3 mm / 0.72 inch |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fire load | 0.214 MJ |
| Global Trade Item Number (GTIN) | 4045454156541 |
| Height | 45.2 mm / 1.78 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Nominal cross section | 4 mm² |
| Number of Poles | 4 |
| Rated current | 32 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 4 |
| Type of wiring | Front-entry wiring |
| Weight | 12.87 g |
| Width | 20 mm / 0.787 inch |
